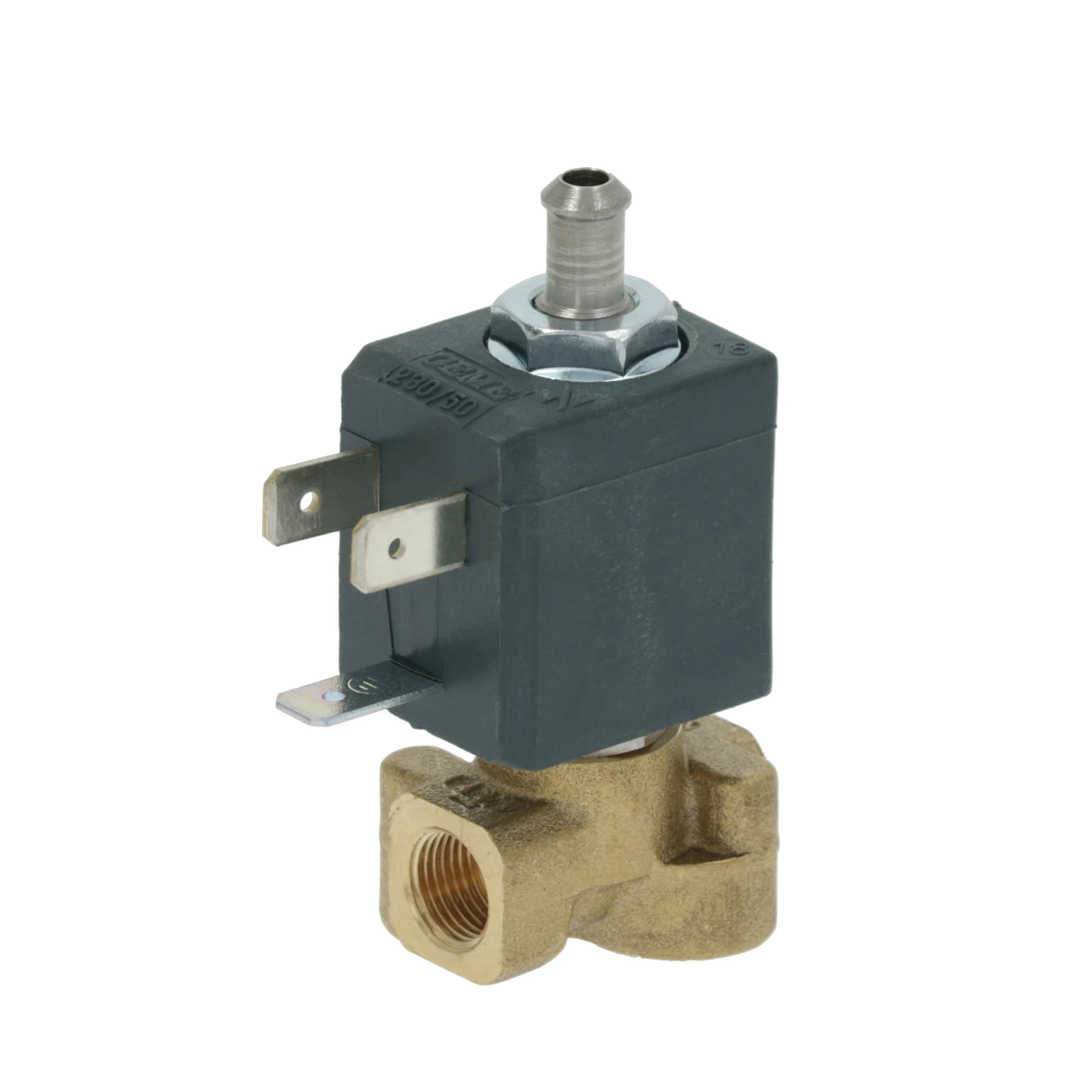

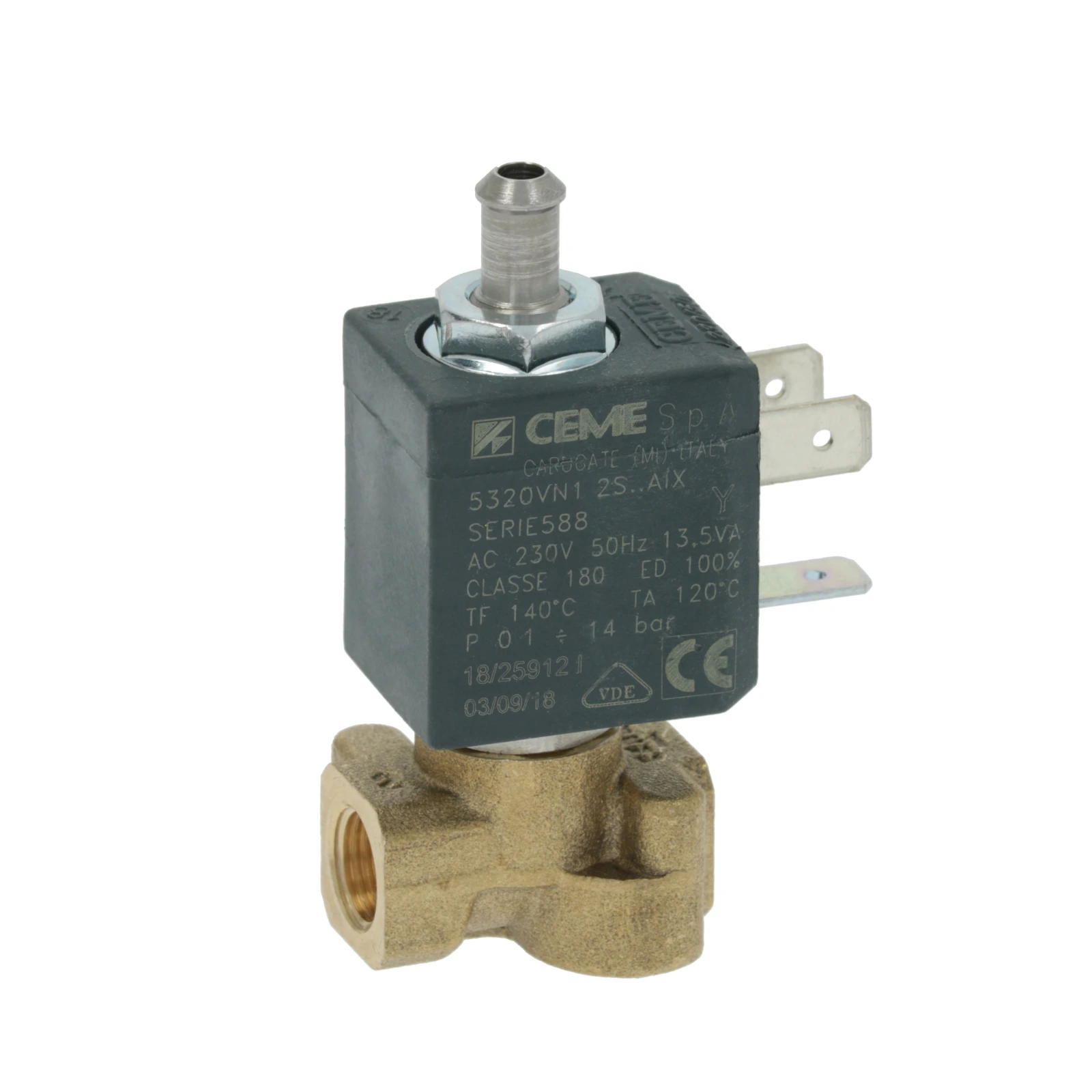

3-way solenoid valve CEME 5320 Ø 1/8" F, 230 V
Add to Cart
3-way solenoid valve CEME 5320 Ø 1/8" F, 230 V
3-way solenoid valve CEME with stainless steel sleeve and FKM seal. Suitable for high-temperature applications. Maximum working pressure – 14 bar.
Technical description
3-way solenoid valve CEME 5320, designed for reliable fluid control in professional equipment.
Technical specifications:
- Connection: Ø 1/8" F
- Outlet diameter: Ø 7 mm
- Orifice diameter: Ø 1.2 mm
- Maximum working pressure: 14 bar
- Seal material: FKM
- Sleeve: stainless steel
- Coil: B4, 13.5 VA
- Voltage: 230 V / 50 Hz
- Fluid temperature range: −10 °C to +140 °C
| MANUFACTURER | TYPE | MODEL |
| ASCASO | Coffee machines | ARC, BAR 2018, BAR 2019, BAR 2021, BAR-KAP 2018, BAR-KAP 2019, BASIC, DREAM, DREAM-ONE 2020, DREAM-ONE 2021, DREAM-PID 2018, DREAM-PID 2019, DREAM-PID 2020, DREAM-PID 2021, KAP, STEEL 2018, STEEL-PID 2019, STEEL-PID 2020 |
| LA PICCOLA | Coffee machines | CECILIA, PICCOLA, SARA |
| LELIT | Coffee machines | PL040, PL041, ANITA (PL042EM 2012), ANITA (PL042EM 2013), ANITA (PL042EMI), PL042QE 2009, PL042QE 2013, ANITA (PL042TEMD), ANNA (PL41E), ANNA (PL41EM), ANNA (PL41LEM), ANNA (PL41QE), ANNA (PL41TEM 2010), ANNA (PL41TEM 2013), PL50N, DIANA (PL60 2012), DIANA (PL60 2013), SILVANA (PL61), MARA (PL62), MARA (PL62S), MARA (PL62T) |
| PAVONI | Coffee machines | DOMUS-BAR (-200707), DOMUS-BAR (200710-), DOMUS-BAR (201507-), DOMUS-BAR-ELETTRONICA-DOSATA (200807-) |
| SPM | Coffee machines | ORZINA 2-2 GINCO G-POWER 2.2 |
| PART NUMBER | MANUFACTURER |
| I..259 | ASCASO |
| LA PICCOLA | |
| LELIT | |
| PAVONI | |
| SPM | |
| 49BQ345 | ATEL |
| 5320VN1,2SAIX | CEME |
| 5320VN12SAIX | CEME |
| 5320VN1,2VNSAIX | CEME |
- Code: LF1120233
3-way solenoid valve CEME 5320 Ø 1/8" F, 230 V
-
28.93 €
23.14 € (Excl. VAT)
