„Ascaso“ thermoblock 230 V, 1 000 W (I.2237)
Add to Cart
Ascaso
Spanish manufacturer • Since 1962
Barcelona's „Ascaso“ makes espresso machines and grinders for people who value quality and good design. The company started out in 1962 making spare parts for espresso machines, and today its hand-built machines are sold in more than 95 countries.
MB „Restoranų įranga“ is the official distributor of „Ascaso Factory“ S.L.U. in Lithuania.
Barista expertise
Developed with baristas
„Ascaso“ develops its machines with experienced baristas, so you get a perfect extraction time after time. Precise control over every brewing parameter lets you work fast without compromising quality.
Quality
Stainless steel water circuit
„Ascaso“ uses stainless steel for most parts in contact with water, from the heating elements to the filters. The steel is hygienic and resists limescale, so your coffee tastes good and the machine stays reliable.
Technology
Coffee in one minute
The electronically controlled „Ascaso“ thermoblock heats only when needed, which saves energy. You can brew coffee a minute after switching on, with a constant supply of steam.
„Ascaso“ thermoblock 230 V, 1 000 W (I.2237)

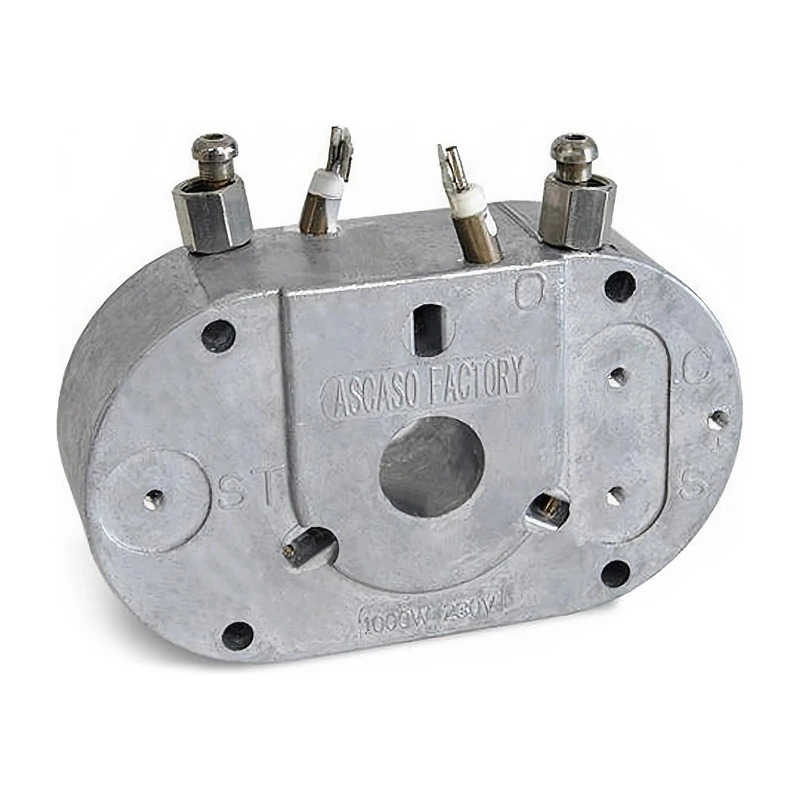

This is an original „Ascaso“ I.2237 thermoblock — an instantaneous heater that heats water as it flows through. Two stainless steel tubes run inside the cast aluminium body: one holds the heating element, the other carries the water. It is rated at 1 000 W and 230 V. The heating element is built into the thermoblock, so the whole unit is replaced.

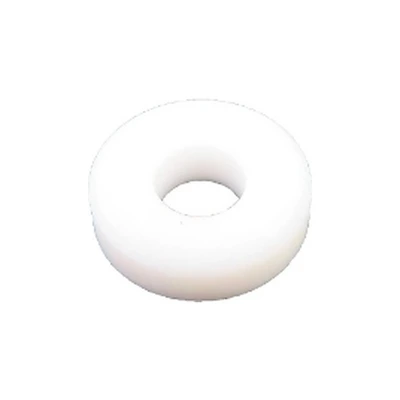

Gaskets are sold separately. The thermoblock has two water connections, so order two new „Ascaso“ I.3096 gaskets (product code 10042420) with it: new PTFE gaskets seal the connections tight from the start.
Technical specifications
| Manufacturer | „Ascaso“ |
|---|---|
| Manufacturer code | I.2237 |
| Type | Thermoblock with stainless steel water tube |
| Power | 1 000 W |
| Supply voltage | 230 V |
| Water connections | 2 × 1/8″ BSP female |
| Electrical connections | Faston-type spade terminals |
| Water tube inner diameter | 3.5 mm |
| Body | Aluminium |
| Gaskets | Sold separately — 2 × I.3096 needed (product code 10042420) |
Fits „Ascaso“ espresso machines
| Dream series | Dream, Dream ZERO, Dream ONE, Dream PID |
|---|---|
| Arc and Basic | Arc, Basic, Basic ONE |
| Steel series | Steel Uno, Steel Duo, Steel Trio (PROF, PID and Versatile versions) |
| Other models | Bar, Bar KAP, Baby T, Barista T, Big Dream T |

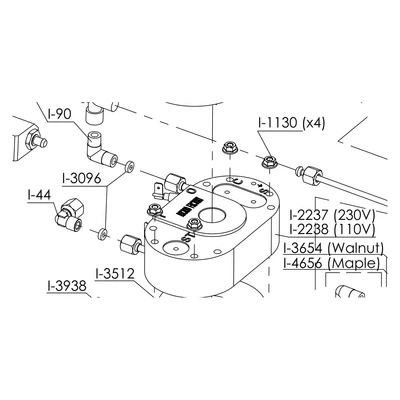

In the Steel Duo and Steel Trio, the I.2237 is also used in the steam system. Check the fit against code I.2237 in your machine’s parts diagram; the Dream PID parts diagram is in the ‘Technical Data Sheet’ tab. Machines for 110 V use the I.2238 thermoblock.
Replacement
Have the thermoblock replaced by an espresso machine technician: the job involves disconnecting the electrical wiring and the pressurised water connections. Filtered or softened water and regular descaling, for example with „Urnex“ Dezcal™, keep the narrow 3.5 mm water tube clear.
| Spare part | |
| Manufacturer | „Ascaso“ |
| Manufacturer code | I.2237 |
| Type | Thermoblock with stainless steel water tube |
| Connection | 2 × 1/8″ BSP female (water); Faston-type spade terminals (electrical) |
| Packaging | Thermoblock; 2 × I.3096 gaskets sold separately |
| Material | Aluminium body, stainless steel tubes |
| Power | 1 000 W |
| Supply voltage | 230 V |
| Fits | „Ascaso“ 230 V espresso machines: Dream, Dream ZERO, Dream ONE, Dream PID, Arc, Basic, Steel, Bar, Bar KAP, Baby T, Barista T and Big Dream T (full list in the description) |
