Electric double deep fat fryer „Bartscher“ SNACK IV (2x8 L)
Add to Cart
Technical data sheet „Bartscher“ SNACK IV
Download PDF →
Official manufacturer data sheet: power, capacity, baskets, dimensions and weight. In English.
Spare parts diagram „Bartscher“ SNACK IV
Download PDF →
Manufacturer’s exploded view with spare part numbers — handy when ordering parts. Parts list in German and English.
Electric double deep fat fryer „Bartscher“ SNACK IV (2x8 L)

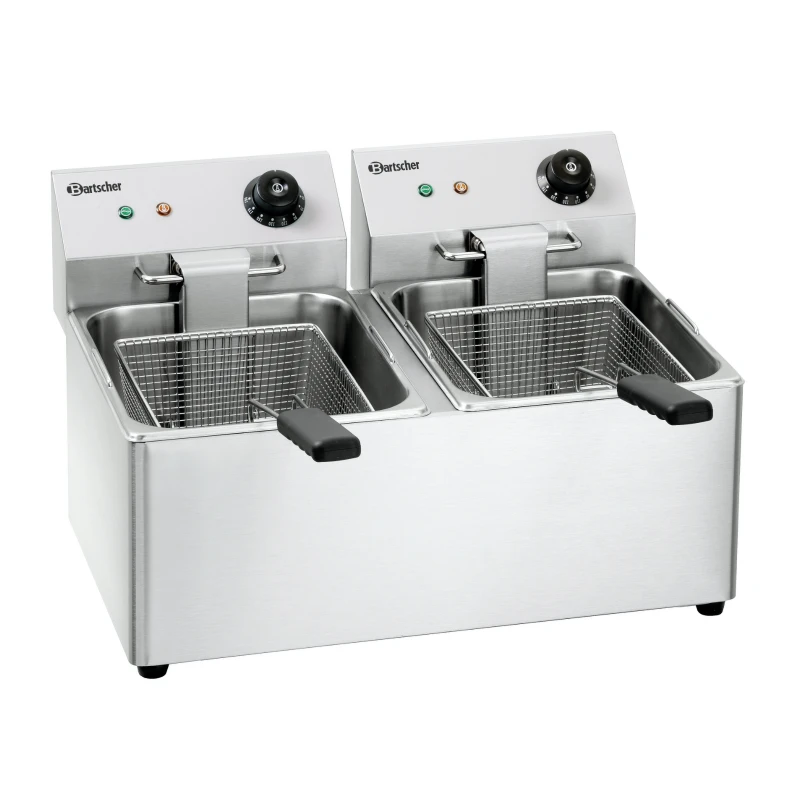

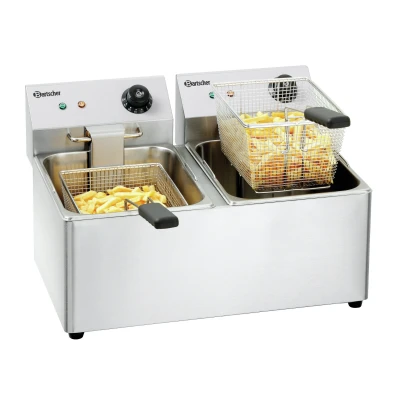

The „Bartscher“ SNACK IV is a table-top double electric deep fat fryer with two 8-litre tanks. Each tank is controlled independently and has its own 3.25 kW heating element and thermostat, so you can fry two different foods at once, even at different temperatures, with no flavour transfer. It is well suited to medium-sized catering businesses and snack bars.
Technical specifications
| Manufacturer | „Bartscher“ |
|---|---|
| Model | SNACK IV |
| Manufacturer code | A162812E |
| Type | Table-top double deep fat fryer |
| Capacity | 2 × 8 L |
| Baskets | 2 × 5.5 L, 195 × 245 × 140 mm (W × D × H) |
| Power | 6.5 kW (2 × 3.25 kW) |
| Supply voltage | 2 × 230 V / 50 Hz |
| Connection | Two plugs — two separate sockets required |
| Temperature range | 50–190 °C |
| Controls | Manual, one rotary knob per tank |
| Cold zone | Yes |
| Overheating protection | Safety thermostat |
| Indicator lights | Mains-on and heating |
| Frying medium | Oil or block fat |

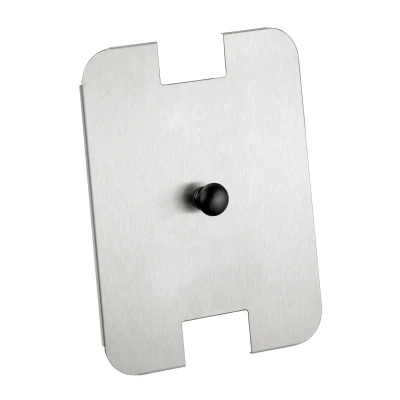

| Supplied with | 2 baskets, 2 lids |
| Material | Stainless steel |
| Colour | Silver grey |
| Protection rating | IPX3 |
| Dimensions (W × D × H) | 555 × 620 × 340 mm |
| Weight | 12.5 kg |
Features
- Cold zone: crumbs settle below the heating elements and don’t burn.
- A safety thermostat cuts the heating if the fryer overheats; press RESET to restart it.
- Oil or block fat: block fat can be melted in the fryer itself — the temperature knob has a marked melting position.
- Plug-in: no hard-wiring needed — the fryer plugs into two separate 230 V sockets.
- Side handles make the fryer easy to lift and move, and the housing has rounded corners.
| Fryer | |
| Manufacturer | „Bartscher“ |
| Model | SNACK IV |
| Manufacturer code | A162812E |
| Type | Table-top double deep fat fryer |
| Capacity | 2 × 8 L |
| Baskets | 2 × 5.5 L, 195 × 245 × 140 mm (W × D × H) |
| Power | 6.5 kW (2 × 3.25 kW) |
| Supply voltage | 2 × 230 V / 50 Hz |
| Connection | Two plugs — two separate sockets required |
| Temperature range | 50–190 °C |
| Controls | Manual, one rotary knob per tank |
| Cold zone | Yes |
| Overheating protection | Safety thermostat |
| Indicator lights | Mains-on and heating |
| Frying medium | Oil or block fat |
| Supplied with | 2 baskets, 2 lids |
| Material | Stainless steel |
| Colour | Silver grey |
| Protection rating | IPX3 |
| Dimensions (W × D × H) | 555 × 620 × 340 mm |
| Weight | 12.5 kg |
| Manufacturer product page: | Open manufacturer page |
Technical data sheet „Bartscher“ SNACK IV
Download PDF →
Official manufacturer data sheet: power, capacity, baskets, dimensions and weight. In English.
Spare parts diagram „Bartscher“ SNACK IV
Download PDF →
Manufacturer’s exploded view with spare part numbers — handy when ordering parts. Parts list in German and English.
