Brema Drain Pump is Brema's DP solution for ice makers that cannot be conveniently connected to a floor drain below the machine. The integrated pump moves drain water to a more practical discharge point and gives more freedom when planning a bar, kitchen or buffet area.
Brema presents it as its proprietary DP System technology and design: the pump is installed inside the machine, the standard water and drain connection points remain unchanged, and the ice maker's footprint does not increase.
INSTALLATION LOCATION FREEDOM
The machine can be repositioned within the same bar or kitchen even after commissioning when workflow requirements change. The integrated pump drains water within the technical limits without tying the machine to a lower floor drain.
HYGIENIC DRAINAGE
Less stagnant water in the drain pipe and lower risk of ice contamination in the storage bin.
REDUCED INSTALLATION TIME
The DP solution can be connected to floor, wall, pipe or siphon drains, making connection work easier for the installation technician.
PLUG & PLAY CONNECTION
When the drain point position or height complicates installation, Brema DP System works as a simple and effective Plug & Play solution.
POWER BLACKOUTS
The DP system collects meltwater and automatically disposes of it when power is restored, regardless of the machine ON/OFF switch position.
FEWER SCALE ISSUES
Instead of a float switch, Brema uses an air-pressure sensor separated from the hydraulic system, reducing mineral buildup and sensor-jamming risks.
In its official description, Brema presents the DP System as a reliable pressurized drainage solution for ice makers. Water level is controlled without a float switch, and the sensor is not directly exposed to mineral buildup in the drain water. This matters in professional kitchens and bars where equipment runs every day and unplanned downtime disrupts work.
| Lift height | Up to 1.5 m |
| Active pumping distance | Up to 4 m |
| Distance with inclined pipe | Up to 15 m |
| Drain types | Floor, wall, pipe or siphon drain |
| Construction | Integrated into the ice maker cabinet; no additional footprint |
| Connection points | Standard water and drain connection points remain unchanged |
| Control | Autonomous electrical circuit and level / air-pressure sensor |
| Scale resistance | No float switch; sensor separated from the hydraulic system |
| Power failure | The pump collects meltwater and automatically disposes of it when power is restored |
The DP version is worth choosing when the ice maker must stand under a counter, on an island, against a wall or in another position where traditional gravity drainage restricts installation. Brema also notes that such a machine is easier to reposition within the same bar or kitchen even after commissioning if the workflow layout changes.
Official Brema Group documents related to this model’s manufacturer and, where applicable, its ice type.
Documents are provided from the official Brema Group documentation area.

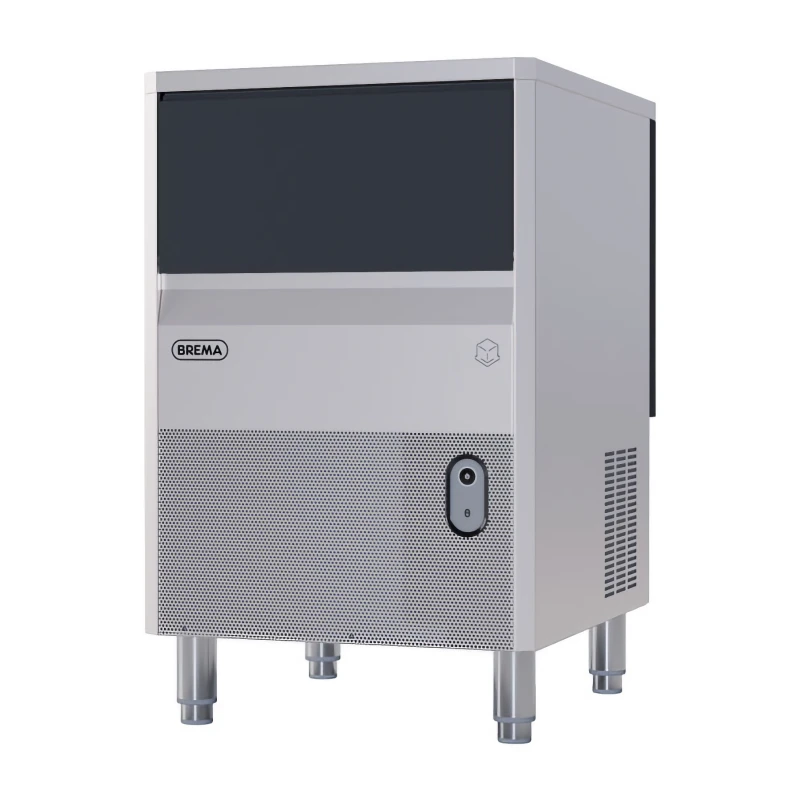

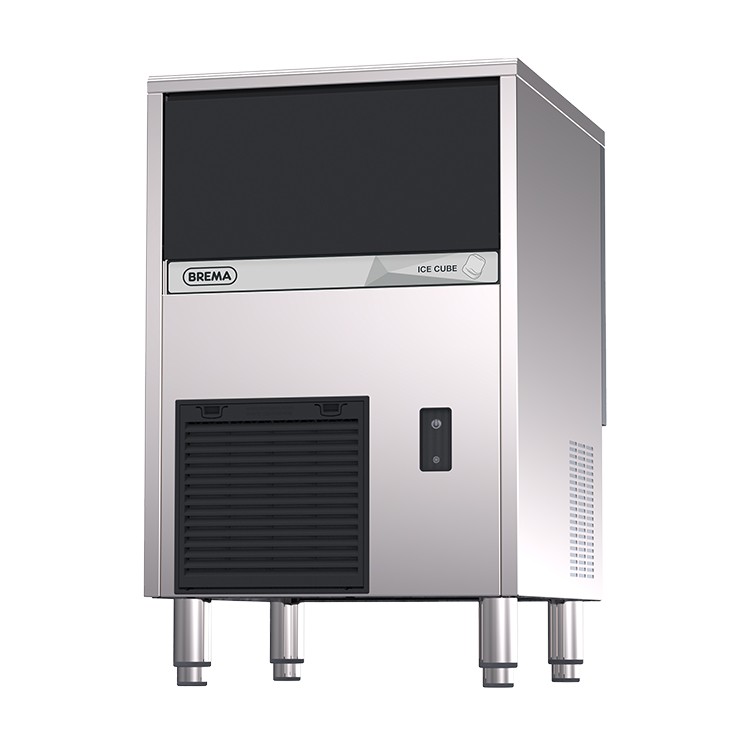

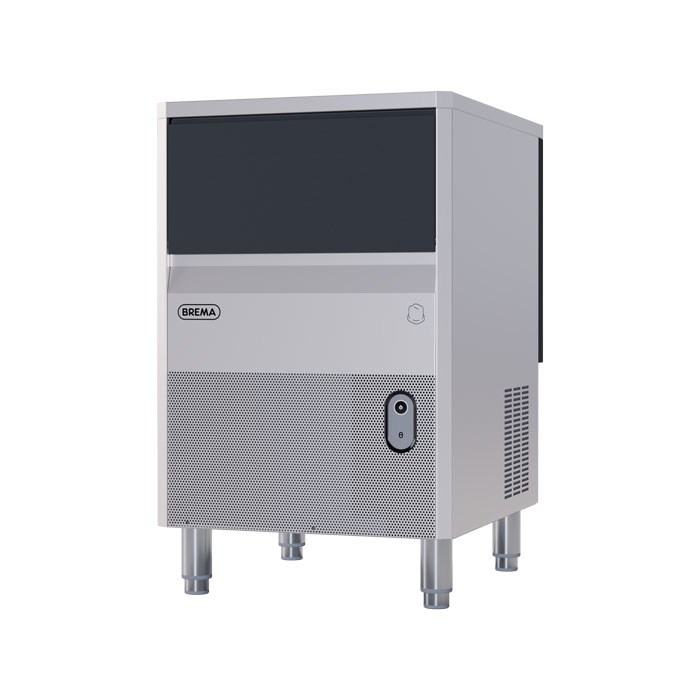

Brema Ice CB 416 HC 1.0 is a professional self-contained cube ice maker for bars, restaurants, hotels, clubs and retail areas that need a high daily output with integrated ice storage.
The model uses the Brema sprayer system with an automatic washing system. It produces up to 44 kg of cube ice per 24 hours, with 42 kg output at 21°C air / 15°C water standard conditions, and has an integrated storage bin for up to 16 kg of ice.
CB 416 HC 1.0 uses R290 hydrocarbon refrigerant. The machine is available with air or water cooling, and water-cooled versions include a dedicated condenser water inlet.
AISI 304 stainless steel Scotch Brite finish, adjustable stainless steel feet, rounded internal surfaces, a removable air filter and side ventilation openings make the machine practical for professional installation and daily maintenance.
Up to 44 kg/24h
Maximum daily production. At standard 21°C air / 15°C water conditions, production is 42 kg.
16 kg bin
Integrated insulated storage bin for continuous professional service.
Cube ice
Available cube formats: 13 g, 18 g, 33 g and 42 g.
R290
HC version with R290 hydrocarbon refrigerant.
Air or water
Choose air or water cooled configuration for the installation site.
Automatic washing
Sprayer system with automatic washing and easy-clean internal surfaces.
| Model | CB 416 HC 1.0 |
|---|---|
| Manufacturer | Brema Ice |
| Machine type | Self-contained ice maker with integrated bin |
| System | Sprayer system with automatic washing system |
| Maximum production per 24h | Up to 44 kg |
| Production per 24h at standard conditions | 42 kg (21°C air / 15°C water) |
| Storage capacity | 16 kg |
| Cooling | Air or water |
| Drain pump | Optional integrated drain pump in the air-cooled DP version; lift height up to 1.5 m, active pumping distance up to 4 m (up to 15 m with an inclined pipe). |
| Ice type | Cube ice: D 13 g, A 18 g, C 33 g, E 42 g |
| Refrigerant | R290 |
| Average power consumption | 450 W |
| Voltage | 220-240 V / 50 Hz |
| Fuse | 10 A |
| Electrical consumption | 22 kWh/100 kg |
| Water consumption | 3 l/kg air cooled, 15 l/kg water cooled |
| Dimensions (W x D x H) | 497 x 592 x 687 mm |
| Package dimensions (W x D x H) | 550 x 660 x 860 mm |
| Feet | Adjustable stainless steel feet, 110-150 mm |
| Net / gross weight | 43 kg / 51 kg |
| Finish | AISI 304 stainless steel, Scotch Brite |
| Tropical class | +43°C |
| Use cases | Bars, restaurants, hotels, clubs, fast food, fish markets, supermarkets, medical and SPA areas |
The DP version uses Brema's proprietary DP System: the pump is integrated into the cabinet, requires no additional footprint and helps install the machine even when a convenient gravity drain point is not available below it. Drain water can be lifted up to 1.5 m, actively pumped up to 4 m and discharged up to 15 m with an inclined pipe. There is no float switch; a level / air-pressure sensor reduces scale-related jamming and stagnant-water risks.
| Electric connection | |
| Power in watts (W): | 450 W |
| Voltage in volts (V): | 220-240 V |
| Ice maker | |
| Ice type: | D - 13 g, A - 18 g, C - 33 g, E - 42 g |
| Production per 24 hours: | Up to 44 kg |
| Production at standard conditions: | 42 kg (Air 21°C / Water 15°C) |
| Storage capacity: | 16 kg |
| Cooling system: | Air (A) or Water (W) |
| Refrigerant: | R290 |
| Water consumption: | Air cooled: 3 l/kg, Water cooled: 15 l/kg |
| Tropical class: | +43°C |
| Drain pump: | Optional integrated drain pump in the air-cooled DP version; lift height up to 1.5 m, active pumping distance up to 4 m (up to 15 m with an inclined pipe). |
| Consumption | |
| Electricity consumption: | 22 kWh/100 kg |
| Dimensions | |
| External Dimensions (width/depth/height): | 497x592x687 mm |
| Package dimensions (width/depth/height): | 550x660x860 mm |
| Weight | |
| Gross Weight: | 51 kg |
| Net Weight: | 43 kg |
| Manufacturer product page: | Open manufacturer page |
Brema Drain Pump is Brema's DP solution for ice makers that cannot be conveniently connected to a floor drain below the machine. The integrated pump moves drain water to a more practical discharge point and gives more freedom when planning a bar, kitchen or buffet area.
Brema presents it as its proprietary DP System technology and design: the pump is installed inside the machine, the standard water and drain connection points remain unchanged, and the ice maker's footprint does not increase.
INSTALLATION LOCATION FREEDOM
The machine can be repositioned within the same bar or kitchen even after commissioning when workflow requirements change. The integrated pump drains water within the technical limits without tying the machine to a lower floor drain.
HYGIENIC DRAINAGE
Less stagnant water in the drain pipe and lower risk of ice contamination in the storage bin.
REDUCED INSTALLATION TIME
The DP solution can be connected to floor, wall, pipe or siphon drains, making connection work easier for the installation technician.
PLUG & PLAY CONNECTION
When the drain point position or height complicates installation, Brema DP System works as a simple and effective Plug & Play solution.
POWER BLACKOUTS
The DP system collects meltwater and automatically disposes of it when power is restored, regardless of the machine ON/OFF switch position.
FEWER SCALE ISSUES
Instead of a float switch, Brema uses an air-pressure sensor separated from the hydraulic system, reducing mineral buildup and sensor-jamming risks.
In its official description, Brema presents the DP System as a reliable pressurized drainage solution for ice makers. Water level is controlled without a float switch, and the sensor is not directly exposed to mineral buildup in the drain water. This matters in professional kitchens and bars where equipment runs every day and unplanned downtime disrupts work.
| Lift height | Up to 1.5 m |
| Active pumping distance | Up to 4 m |
| Distance with inclined pipe | Up to 15 m |
| Drain types | Floor, wall, pipe or siphon drain |
| Construction | Integrated into the ice maker cabinet; no additional footprint |
| Connection points | Standard water and drain connection points remain unchanged |
| Control | Autonomous electrical circuit and level / air-pressure sensor |
| Scale resistance | No float switch; sensor separated from the hydraulic system |
| Power failure | The pump collects meltwater and automatically disposes of it when power is restored |
The DP version is worth choosing when the ice maker must stand under a counter, on an island, against a wall or in another position where traditional gravity drainage restricts installation. Brema also notes that such a machine is easier to reposition within the same bar or kitchen even after commissioning if the workflow layout changes.
Official Brema Group documents related to this model’s manufacturer and, where applicable, its ice type.
Documents are provided from the official Brema Group documentation area.
