Pass-through dishwasher „Omniwash“ Smart S60

Add to Cart
  • Pass-through dishwasher „Omniwash“ Smart S60
  • Pass-through dishwasher „Omniwash“ Smart S60
  • Pass-through dishwasher „Omniwash“ Smart S60
  • Pass-through dishwasher „Omniwash“ Smart S60
  • Pass-through dishwasher „Omniwash“ Smart S60

Omniwash

Italian manufacturer • 40 years of experience

„Omniwash“ designs and builds professional glasswashers and dishwashers. Every machine is made entirely in Italy.

Technology

Pumps and heating elements

„Omniwash“ designs its wash pumps in-house. Its Incoloy heating elements heat water quickly and help to save energy.

Body

AISI 304 (18/10)

The machine bodies are made of AISI 304 (18/10) stainless steel, so they are strong and durable.

Ranges

Easy • Smart • Prestige

From undercounter glasswashers to pass-through dishwashers, plus a pot washer.

About „Omniwash“

„Omniwash Group“ has been designing and building professional glasswashers and dishwashers for 40 years. Its factory is in the province of Monza and Brianza, one of Italy's most important industrial areas.

Every machine is made entirely in Italy, and a local production chain enables product traceability, prompt technical support and careful selection of raw materials.

„Omniwash Group“ is part of the group headed by „Berto's“, the Italian manufacturer of professional kitchen equipment.

The „Omniwash“ factory in Italy
01

Wash pumps

„Omniwash“ designs its wash pumps in-house. They deliver consistent results, cycle after cycle.

02

Rinse boiler

A system in the rinse boiler maintains the rinse water temperature, so items are rinsed properly.

03

Surface filters

Surface filters catch dirt and food scraps, so the wash water stays cleaner for longer. They are standard on Prestige machines and the Smart S60 and S60P, and optional on the others.

04

Low running costs

Peristaltic dispensers (standard on Prestige machines and optional on the others; the Easy E35, Smart S35 and Smart S40 take only one) accurately control detergent and rinse-aid consumption. The Incoloy heating elements heat water quickly and help to save energy.

05

Easy to use and clean

The control panel is simple and clear, and the wash and rinse arms are easy to remove and clean.

06

Stainless steel body

The machine bodies are made of AISI 304 (18/10) stainless steel, so they are strong and durable.

Three ranges

„Omniwash“ makes its machines in three ranges — Easy, Smart and Prestige.

Easy — undercounter glasswashers and dishwashers with electromechanical controls and a single wash cycle. They are easy to operate and have low running costs.

Smart — undercounter glasswashers and dishwashers with electronic controls, three wash cycles, a cold rinse function and a guaranteed rinse temperature, plus the S60 and S60P pass-through (hood-type) dishwashers with electromechanical controls.

Prestige — a glasswasher, undercounter and pass-through dishwashers and a pot washer, all with electronic controls. Peristaltic detergent and rinse-aid dispensers, a guaranteed rinse temperature, a guaranteed rinse pressure system, a drain pump, and stainless steel arms and surface filters come as standard.

„Omniwash“ Prestige glasswasher, half pencil sketch, half photo

Sustainability

To save water and energy, the manufacturer recommends running each cycle with a full basket.

It also advises using good-quality detergents, dosed according to water hardness — no more than needed.

„Omniwash“ uses production methods aimed at reducing emissions and improving material recycling, and its packaging is designed to use as little material as possible.

Clean plates and glasses

You will find „Omniwash“ spare parts in our ‘Spare parts for dishwashers’ category, and tables for pass-through dishwashers in ‘Dishwasher tables’.

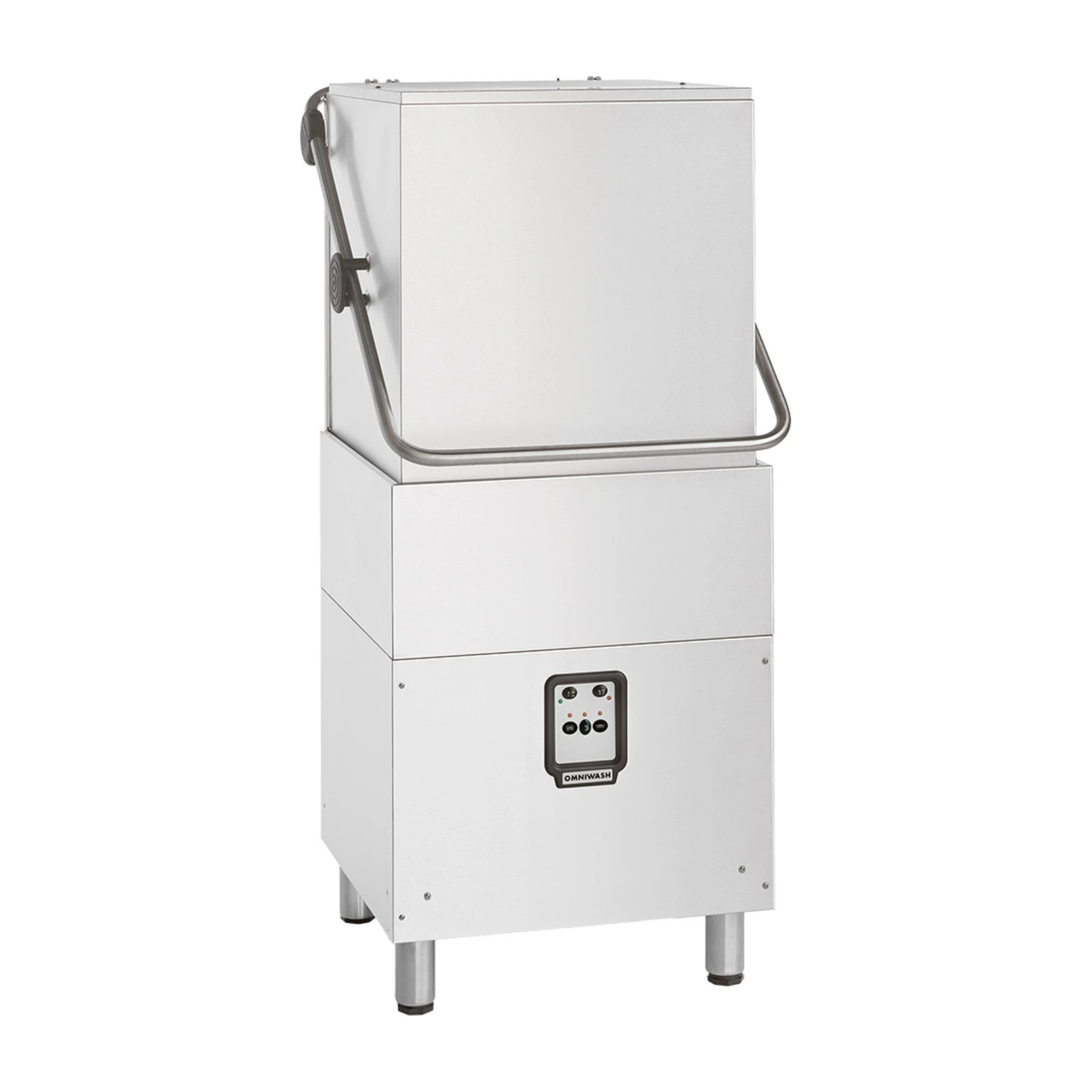

Pass-through dishwasher „Omniwash“ Smart S60

Electromechanical pass-through dishwasher

A hood-type machine suits busy kitchens with a lot of washing-up: this one washes up to 720 plates or 1,000 glasses an hour.

With the hood raised, the 500 × 500 mm basket slides in on one side and out on another, so the machine can sit between inlet and outlet tables, either in a straight line or in a corner. Items up to 430 mm tall fit under the hood.

The machine has two wash cycles — 90 and 180 seconds. Items are washed at 60 °C and then rinsed with 82 °C water from the 8 L boiler.

A higher-output model with two wash pumps is also available: the Smart S60P.

The machine is made in Italy, and its body is AISI 304 (18/10) stainless steel.

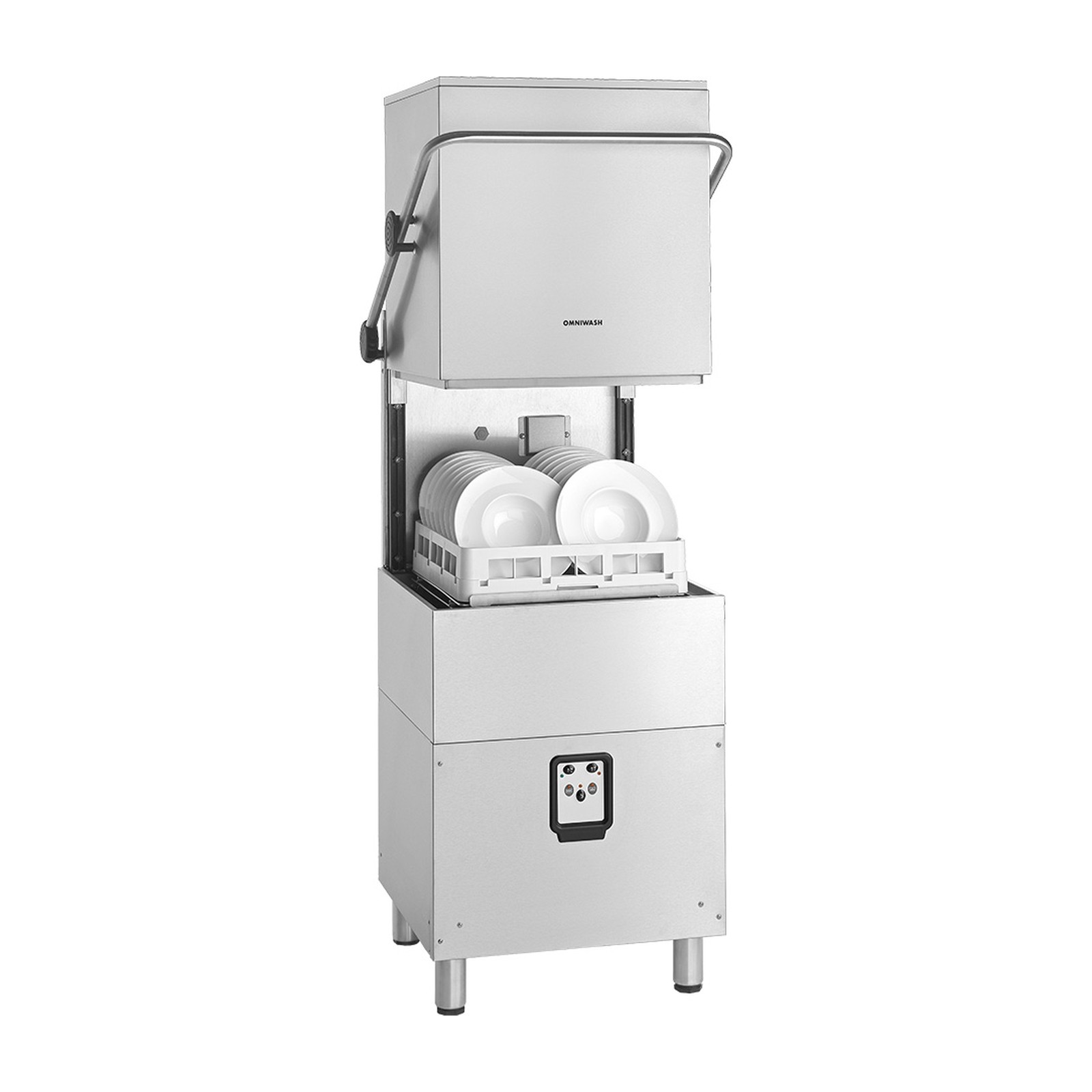

Pass-through dishwasher „Omniwash“ Smart S60 with the hood raised

Tables and pre-rinse spray

Accessories include a left- or right-hand inlet table with a sink and a waste chute, an outlet table and a pre-rinse spray on a flexible arm.

You will find these tables in our ‘Dishwasher tables’ category.

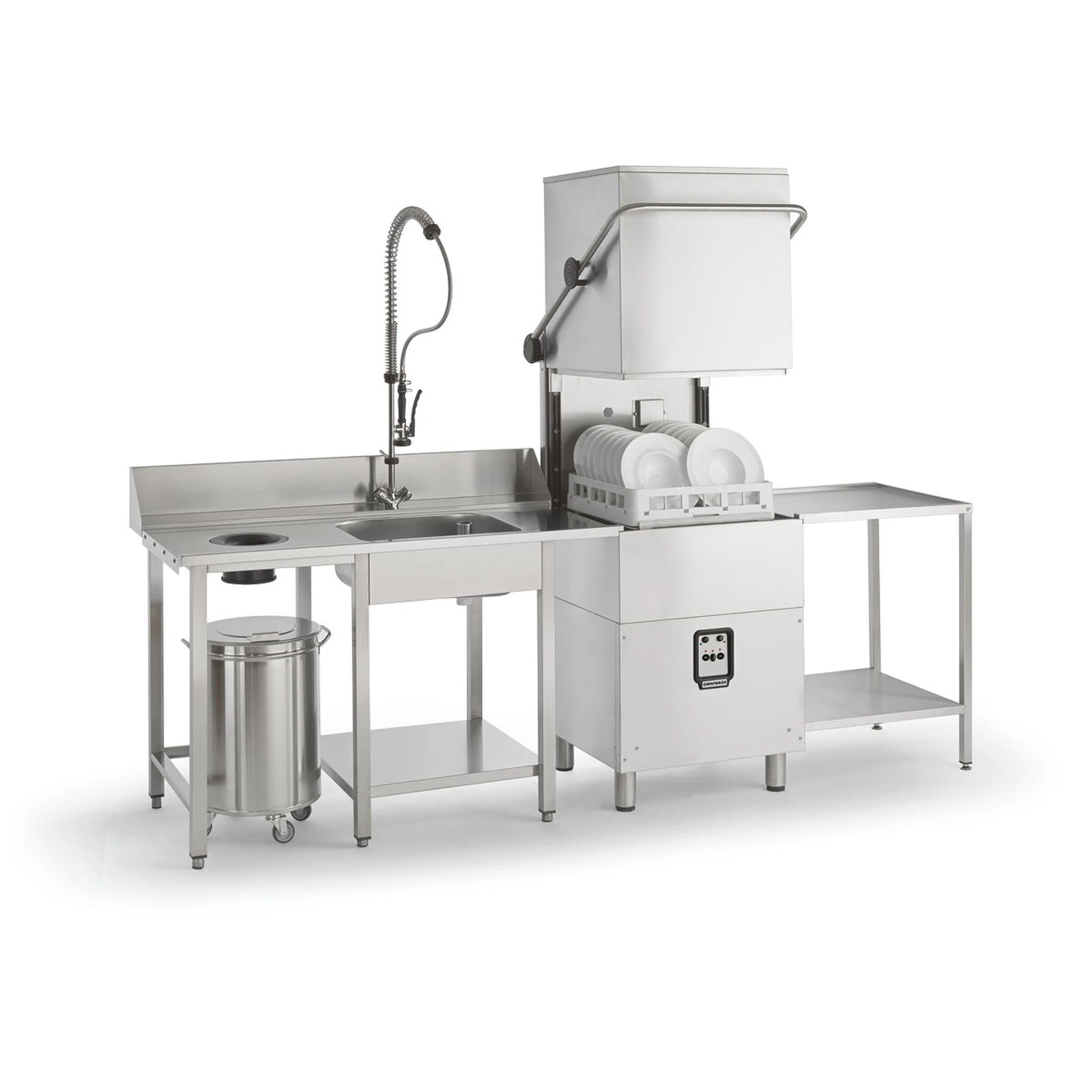

„Omniwash“ Smart S60 with inlet and outlet tables

Washing and rinsing

Wash and rinse arms above and below the basket spray water onto the items. The arms are easy to remove and clean, and the polypropylene surface filter keeps dirt and food scraps out of the 60 L wash tank.

„Omniwash“ designs its wash pumps in-house, and the rinse boiler is fitted with a system that maintains the rinse temperature. The Incoloy heating elements heat water quickly and help to save energy.

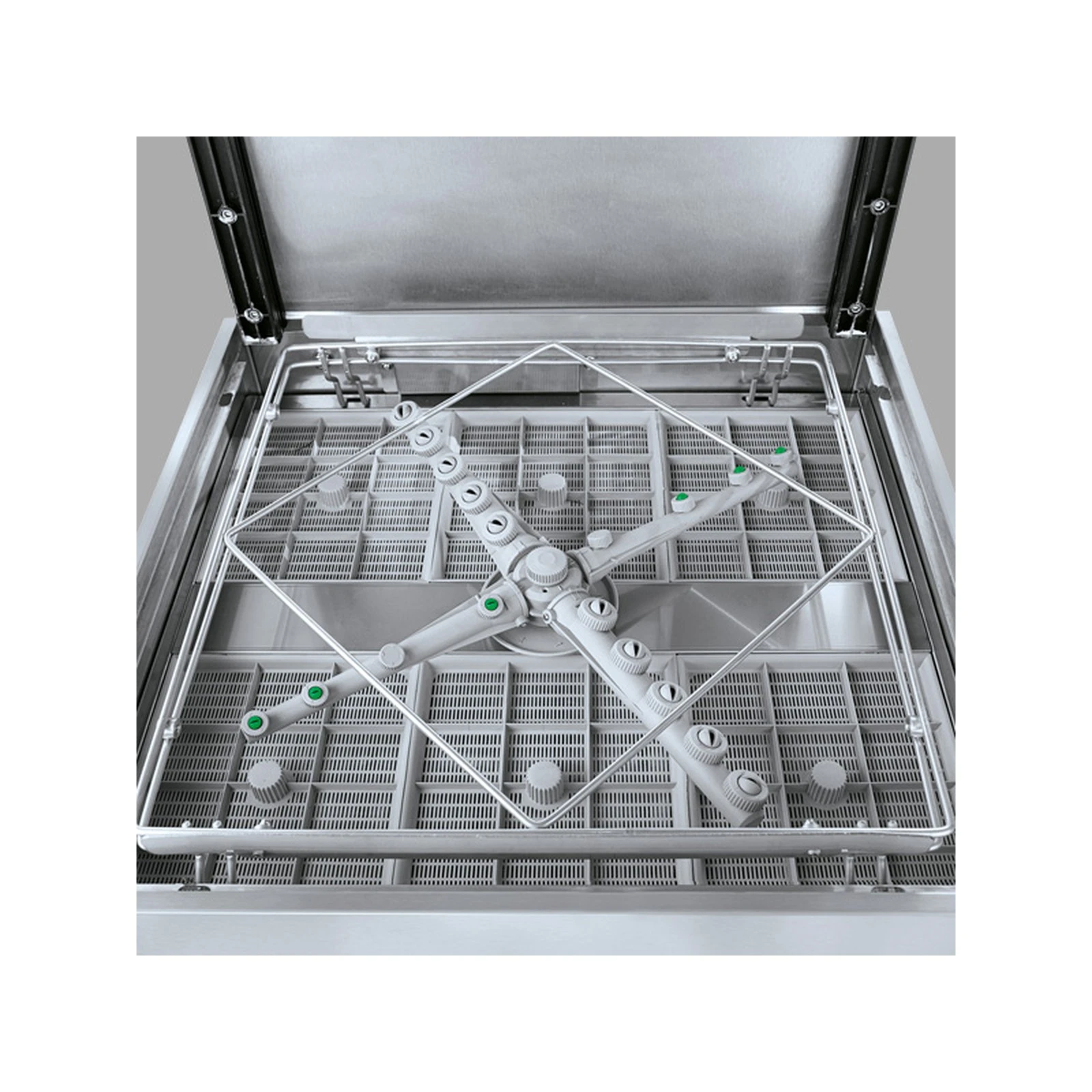

„Omniwash“ Smart S60 wash and rinse arms

Standard equipment and optional extras

A mechanical rinse-aid dispenser, a polypropylene surface filter and two baskets come as standard.

Optional peristaltic detergent and rinse-aid dispensers accurately control chemical consumption.

You can also order a guaranteed rinse pressure system, a drain pump and stainless steel surface filters.

A drain pump is needed if the waste pipe is higher than the machine's drain outlet.

An automatic or manual water softener is available separately.

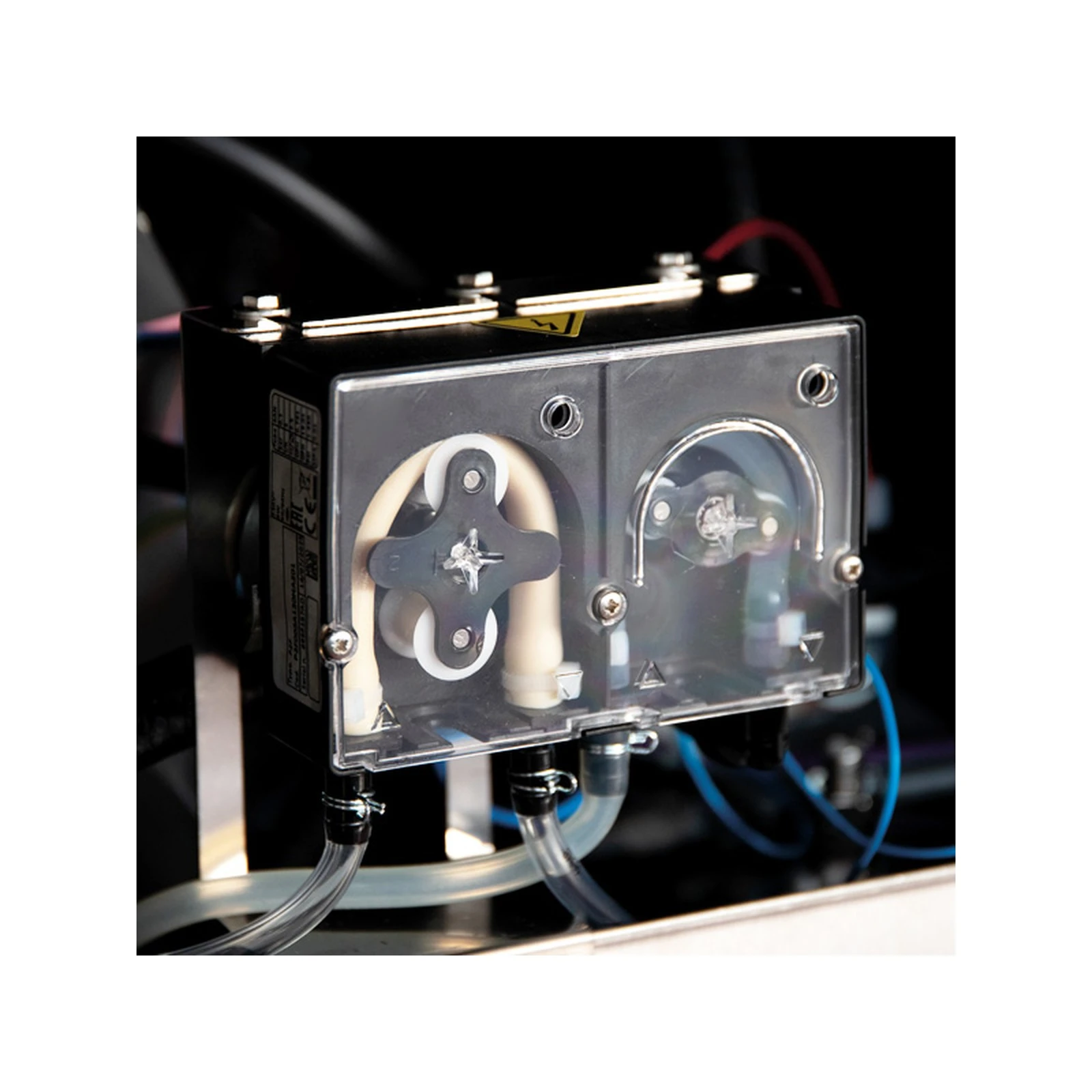

„Omniwash“ peristaltic detergent and rinse-aid dispensers

Installation and connection

The machine measures 705 × 841 × 1,474 mm. When planning the space, allow for its height with the hood raised: 1,955 mm.

It runs on a 400 V, 50 Hz three-phase and neutral supply (3N~) and has a total power rating of 6.75 kW. It needs a water pressure of 2–4 bar, and the supply water must not exceed 50 °C. The supply hose has a 3/4″ connection and the drain hose is 31 mm in diameter.

Technical specifications

Manufacturer„Omniwash“
RangeSmart
ModelS60
Manufacturer codeOWB61P00T000X005
Typepass-through (hood-type) dishwasher
Controlselectromechanical
Basket size500 × 500 mm
Maximum item height430 mm
Outputup to 720 plates or 1,000 glasses per hour
Number of wash cycles2 (90 and 180 s)
Wash temperature60 °C
Rinse temperature82 °C
Wash pump0.75 kW
Boiler8 L, 6 kW
Wash tank60 L, 4.5 kW
Power supply400 V, three-phase and neutral (3N~), 50 Hz
Total power6.75 kW
Water pressure2–4 bar
Supply water temperatureup to 50 °C
Water hoses3/4″ supply connection, Ø 31 mm drain
Noise levelbelow 75 dB(A)
Dimensions (W × D × H)705 × 841 × 1,474 mm
Height with hood raised1,955 mm
Net weight108 kg
Standard equipmentmechanical rinse-aid dispenser, polypropylene surface filter, 2 baskets (500 × 500 mm)
Optional extrasperistaltic detergent and rinse-aid dispensers, guaranteed rinse pressure system, drain pump, stainless steel surface filters
BodyAISI 304 (18/10) stainless steel
ConformityCE
Country of originItaly
Warewasher
Manufacturer „Omniwash“
Range Smart
Model S60
Manufacturer code OWB61P00T000X005
Type pass-through (hood-type) dishwasher
Controls electromechanical
Basket size 500 × 500 mm
Maximum item height 430 mm
Output up to 720 plates or 1,000 glasses per hour
Number of wash cycles 2 (90 and 180 s)
Wash temperature 60 °C
Rinse temperature 82 °C
Wash pump 0.75 kW
Boiler 8 L, 6 kW
Wash tank 60 L, 4.5 kW
Power supply 400 V, three-phase and neutral (3N~), 50 Hz
Total power 6.75 kW
Water pressure 2–4 bar
Supply water temperature up to 50 °C
Water hoses 3/4″ supply connection, Ø 31 mm drain
Noise level below 75 dB(A)
Dimensions (W × D × H) 705 × 841 × 1,474 mm
Height with hood raised 1,955 mm
Net weight 108 kg
Standard equipment mechanical rinse-aid dispenser, polypropylene surface filter, 2 baskets (500 × 500 mm)
Optional extras peristaltic detergent and rinse-aid dispensers, guaranteed rinse pressure system, drain pump, stainless steel surface filters
Body AISI 304 (18/10) stainless steel
Conformity CE
Country of origin Italy
