White plastic coated grid GN 2/1 (530x650 mm)
Add to Cart
Cool Head
Italian company • Professional refrigeration
„Cool Head“ is the professional kitchen brand of the Italian group „Cool Head Europe“. The group designs functional, sustainable, high-quality refrigeration equipment and supplies it worldwide.
MB „Restoranų įranga“ is the official distributor of „Cool Head Europe“ S.p.A. in Lithuania.
Every kitchen
Fits purpose, output and space
„Cool Head“ designs its range so that every kitchen can find the right model for its purpose, performance needs and available space.
Service
Large spare parts warehouse
„Cool Head Europe“ advises on the right equipment, helps solve technical issues and keeps a large spare parts warehouse for repairs.
Sustainability
Lower power consumption
„Cool Head“ invests in new technologies and uses advanced thermostats that cut CO₂ emissions and electricity consumption.
White plastic coated grid GN 2/1 (530x650 mm)

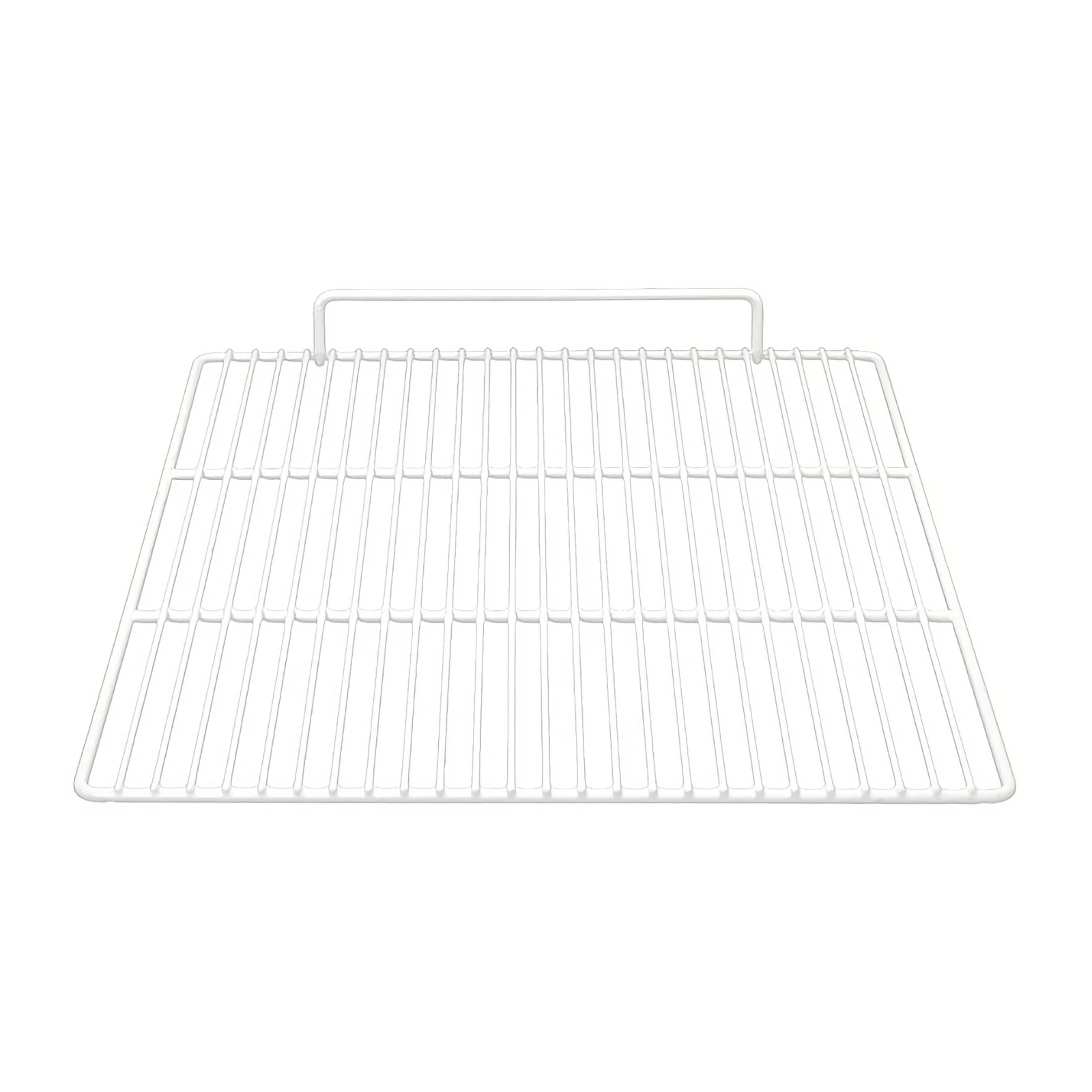

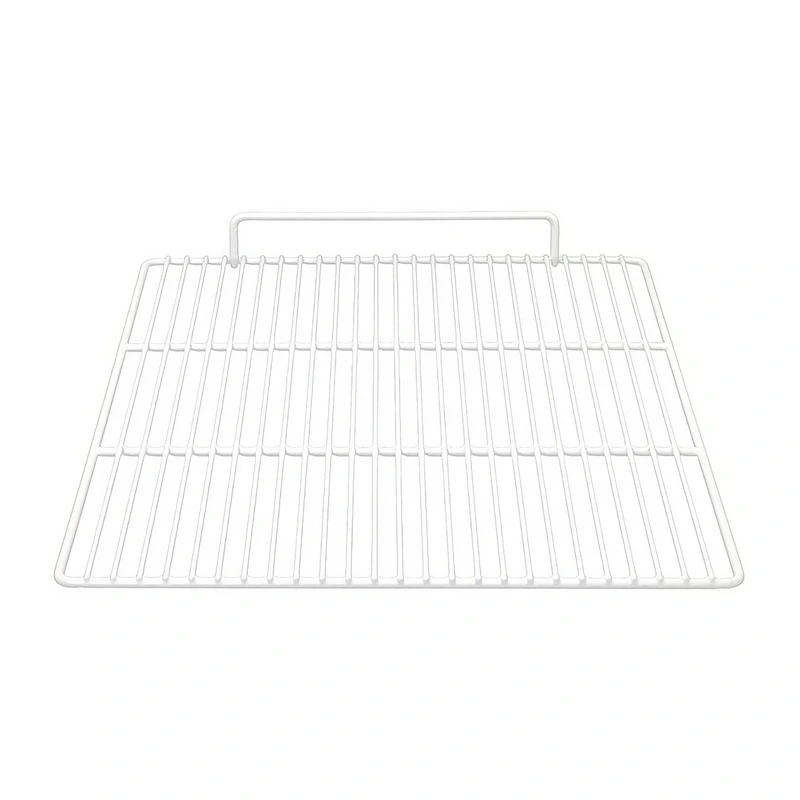

This refrigerator shelf is a GN 2/1 (530 × 650 mm) steel wire grid with a white plastic coating. Shelves like this are used in refrigerators and refrigerated cabinets built for the GN 2/1 size: gastronorm containers and food sit on the grid, while cold air circulates freely between the wires.
The grid fits the „Angelo Po“, „ILSA“ and „Zanussi“ model series listed below and is also used in equipment from the other brands at the end of the table.
Technical specifications
| Type | Refrigerator shelf (wire grid) |
|---|---|
| LF code | 3185050 |
| GEV code | 970556 |
| Other codes | ATEL 75RF001 |

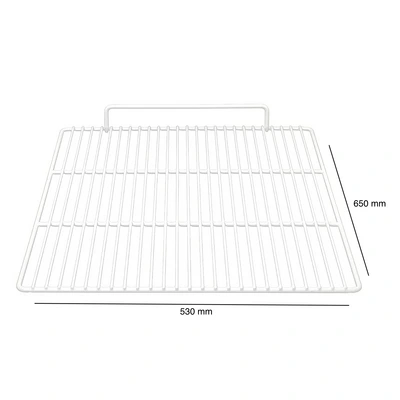

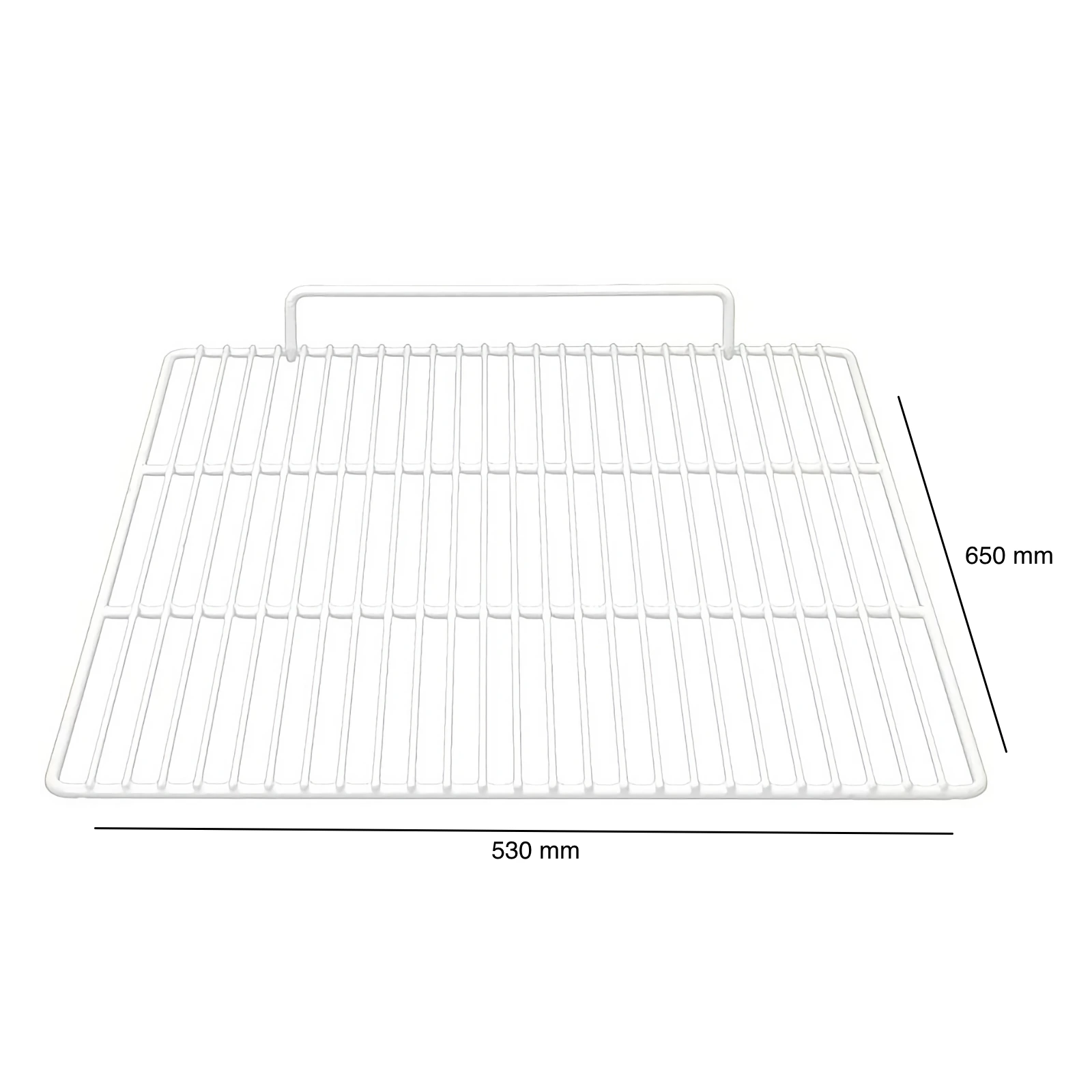

| Dimensions | 530 × 650 mm (GN 2/1) |
| Edge height | 60 mm |
| Frame wire diameter | 9 mm |
| Infill wire diameter | 5 mm |
| Number of intermediate wires | 2 |
| Material | White plastic-coated steel |
| Weight | 2.9 kg |
| Country of origin | Italy |
Fits models
| „Angelo Po“ — refrigerated cabinet series | 65, 135, CX, EX, FX, GD, MD, MDE, MF, MFE, MX, PD, PDG, PFG, S (S60, S125, S600, S1200), SP, TD, TE, VE, VF, ZE |
|---|---|
| „Angelo Po“ — refrigerated counter | S60X |
| „ILSA“ — refrigerated cabinets | AE070001, AE070002, AE070003, AE070004, AE070006, AE070007, AE140001, AE140002, AE140003, AE140004, AE140005, AE140006, AE140008, AH070001, AH070002, AH070003, AH070004, AH070007, AH140001, AH140002, AH140003, AH140004, AH140005, AH140006, ARZ0001 |
| „Zanussi“ — refrigerated cabinets (model code prefixes) | 83012…, ADF, ADN, ADNF, ADNN, AEF, AEN, AENF, AENN, AKF, AKN, AKNF, AKNN, AKNSO, AKP, AKS, ALF, ALN, ALNF, ALNN, ALNSO, ALP, APF, APP, ARDF, ARDN, ARDNF, ARDNN, ASF, ASN, AZF, AZP, C05, C06, C12, C14, CA, CM, CZ, DVC, DVN, DVNC, DVNI, DVNN, DVP, E05, E06, E12, E14, EC, ECE, ECZ, EDVC, EDVN, EDVP, EEVC, EEVN, EEVNI, EEVNN, EGE, EGZ, EKE, EKZ, EMC, EMVN, ESMLF, ESMLR, ETE, ETZ, EVC, EVCN, EVN, EVNC, EVNI, EVNN, FGD, FRA, FS, FSD, FVNE, FVNM, GE, GZ, IKF, IKN, IKNF, IKNN, IKNNP, IKNSO, IKNZ, IKP, IKPZ, IKS, ILF, ILN, ILNF, ILNN, ILNSO, ISF, ISFZ, ISN, ISP, ISS, KDFE, KDNE, KE, KEP, KL, KLN, KLP, KLPF, KLPP, KMFE, KMNE, KPF, KVNE, KVPE, KZ, M06, M13, MCD, MLC, MLP, MVC, MVN, MVNC, MVNI, MVNN, MVP, P17, RD, RDNE, RGD, RH, RMNE, RPPE, RS, RSD, RSPE, RVNE, RVNM, RVPE, SB, TE, TZ, ZILNF, ZILNN, ZILNSO, ZLNF |
| Other brands | „Alpeninox“, „Barline“, „Cookmax“, „Electrolux Professional“, „Frenox“, „Friulinox“, „IARP“, „Icematic“, „Inomak“, „Lohberger“, „Polaris“, „Sagi“, „Scotsman“, „Simag“, „Voss“ and „Whirlpool-Indesit“ |
Check the fit against your old grid. Plastic-coated grids of the same GN 2/1 size differ in edge height and wire diameter: this grid has a 60 mm edge, the grey grid a 40 mm edge. We also sell a stainless steel GN 2/1 grid.
| Spare part | |
| Type | Refrigerator shelf (wire grid) |
| Dimensions | 530 × 650 mm (GN 2/1), edge height 60 mm; frame wire Ø 9 mm, infill wires Ø 5 mm |
| Material | White plastic-coated steel |
| Fits | „Angelo Po“, „ILSA“ and „Zanussi“ refrigerated cabinets, plus the „Angelo Po“ S60X refrigerated counter (model series in the description) |
