Refrigerated counter door gasket 610 × 480 mm „Forcar“
Add to Cart
Refrigerated counter door gasket 610 × 480 mm „Forcar“
This is a magnetic snap-in door gasket for „Forcar“ refrigerated counters. Its 7.5 mm wide dart presses into the groove on the inside of the door — no screws or adhesive are needed. A magnetic strip inside the profile holds the gasket against the metal cabinet frame, so the door seals tightly when closed. A cracked or hardened gasket, or one that has come out of its groove, lets warm air in: ice builds up on the evaporator, the compressor runs longer and the temperature inside fluctuates.
It is not an original „Forcar“ part but an equivalent from LF, made in Italy (profile no. 1061); LF lists it as fitting the „Forcar“ models below.
Technical specifications
| Equipment brand | „Forcar“ |
|---|---|
| LF code | 5084613 |
| GEV code | 901958 |
| Type | Magnetic snap-in door gasket |
| Dimensions | 610 × 480 mm (long side × short side) |
| Profile | No. 1061, 23 × 16 mm (overall width × height) |
| Fitting | Pressed into the groove in the door (dart width 7.5 mm) |
| Colour | Grey |
| Country of origin | Italy |
Fits „Forcar“ models
| GN series | GN 2100 TN, GN 2100 TNG, GN 2100 BT, GN 3100 TN, GN 3100 TNG, GN 3100 BT, GN 4100 TN, GN 4100 TNG, GN 4100 BT |
|---|---|
| PA series | PA 2100 TN, PA 2100 TNG, PA 2100 BT, PA 3100 TN, PA 3100 TNG, PA 3100 BT, PA 4100 TN, PA 4100 TNG, PA 4100 BT |
| PZ series | PZ 2100 TN, PZ 2100 TNG, PZ 2100 BT, PZ 3100 TN, PZ 3100 TNG, PZ 3100 BT, PZ 4100 TN, PZ 4100 TNG, PZ 4100 BT, PZ 2610 TN, PZ 2600 TN |
| SNACK series | SNACK 2100 TN, SNACK 2100 TNG, SNACK 2100 BT, SNACK 3100 TN, SNACK 3100 TNG, SNACK 3100 BT, SNACK 4100 TN, SNACK 4100 TNG, SNACK 4100 BT |

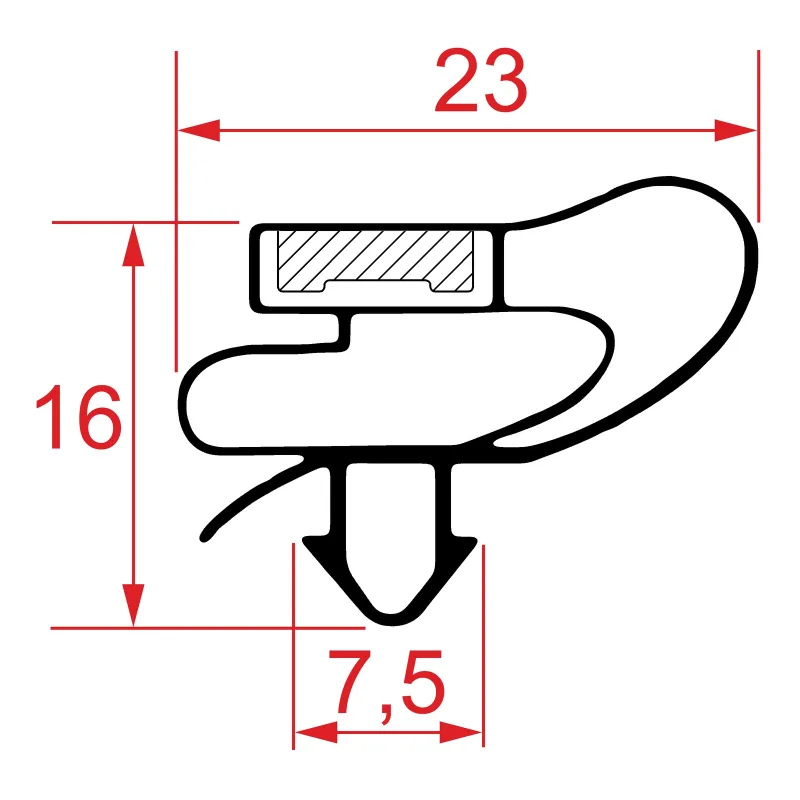

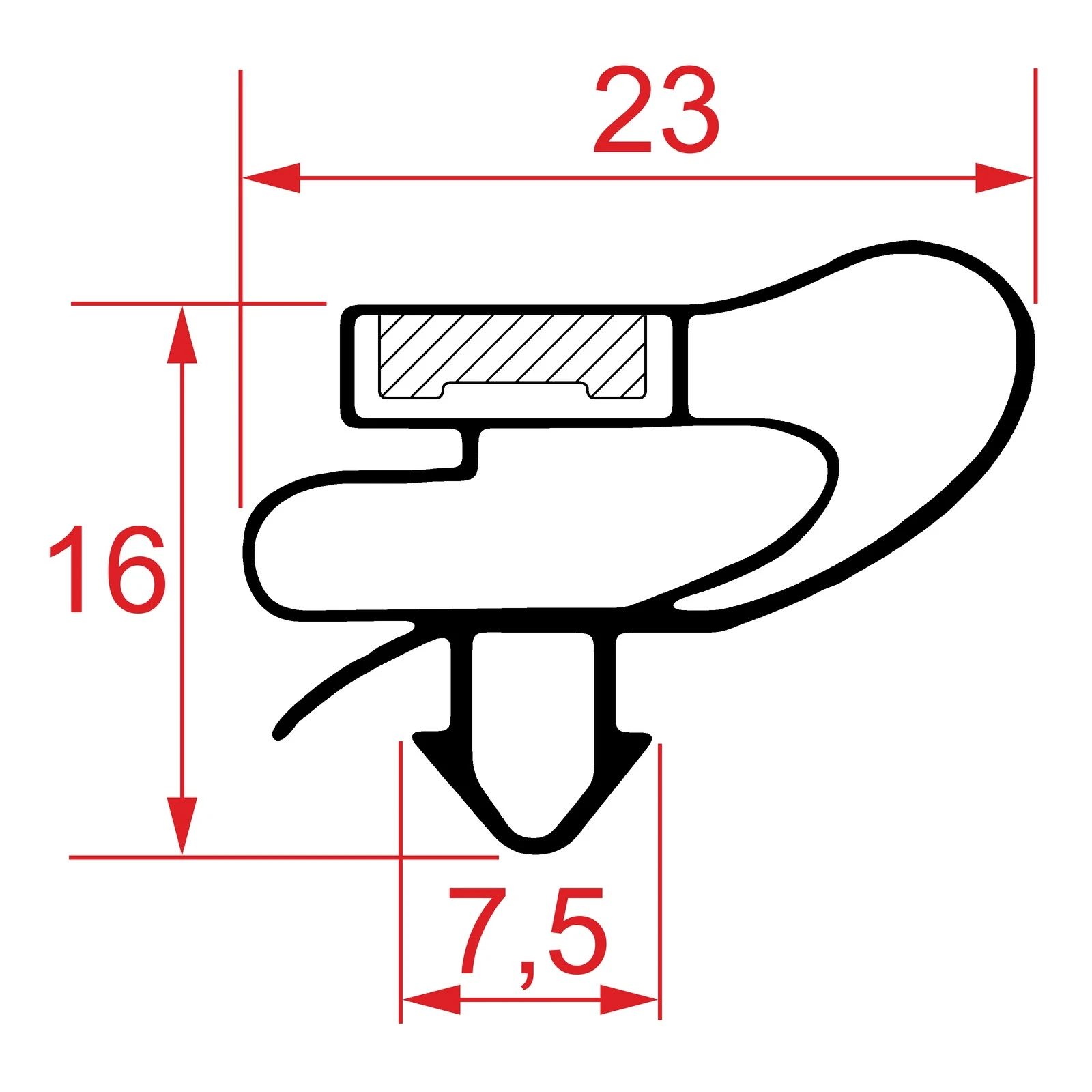

Check the size before ordering. The „Forcar“ parts diagrams for most of these models list door gaskets in two sizes: 610 × 400 mm and 610 × 480 mm. The original 610 × 480 mm gasket („Forcar“ RC0162) has a different, 25 × 21.5 mm profile, whereas this gasket’s profile is 23 × 16 mm; both have a 7.5 mm wide dart. Measure each side of your old gasket and compare its profile with the drawing in the product image. If the sides do not match, or your old gasket has the original 25 × 21.5 mm profile, contact us and we will help you find the right gasket.
| Gasket | |
| Type | Magnetic snap-in door gasket |
| Dimensions | 610 × 480 mm (long side × short side); profile no. 1061 — 23 × 16 mm (overall width × height), dart width 7.5 mm |
| Fits | „Forcar“ GN, PA, PZ and SNACK series refrigerated counters (2100, 3100 and 4100 models), plus the PZ 2610 TN and PZ 2600 TN (full model list in the description) |
