Temperature controller „Dixell“ XR06CX-5N0C1
Add to Cart
Temperature controller „Dixell“ XR06CX-5N0C1

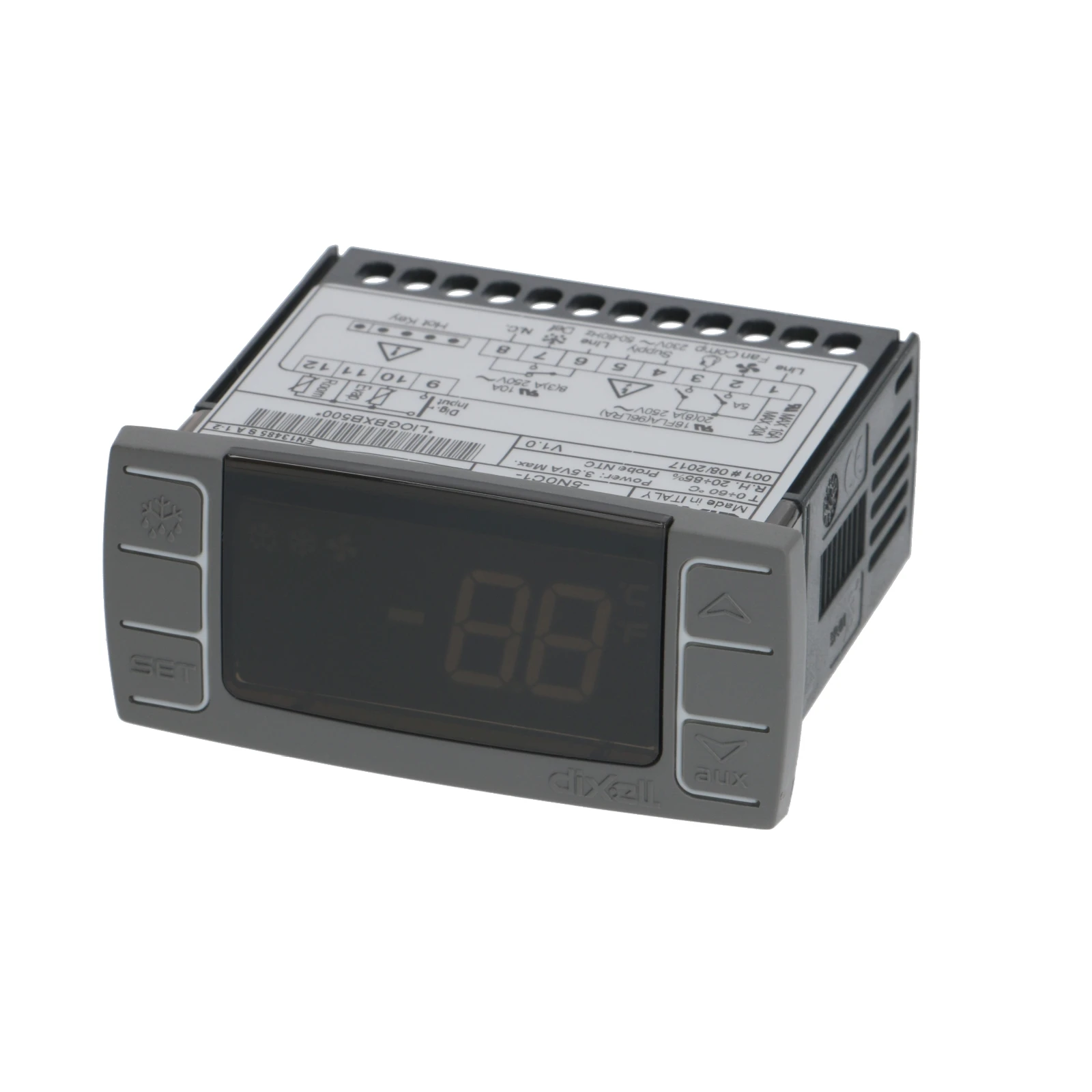

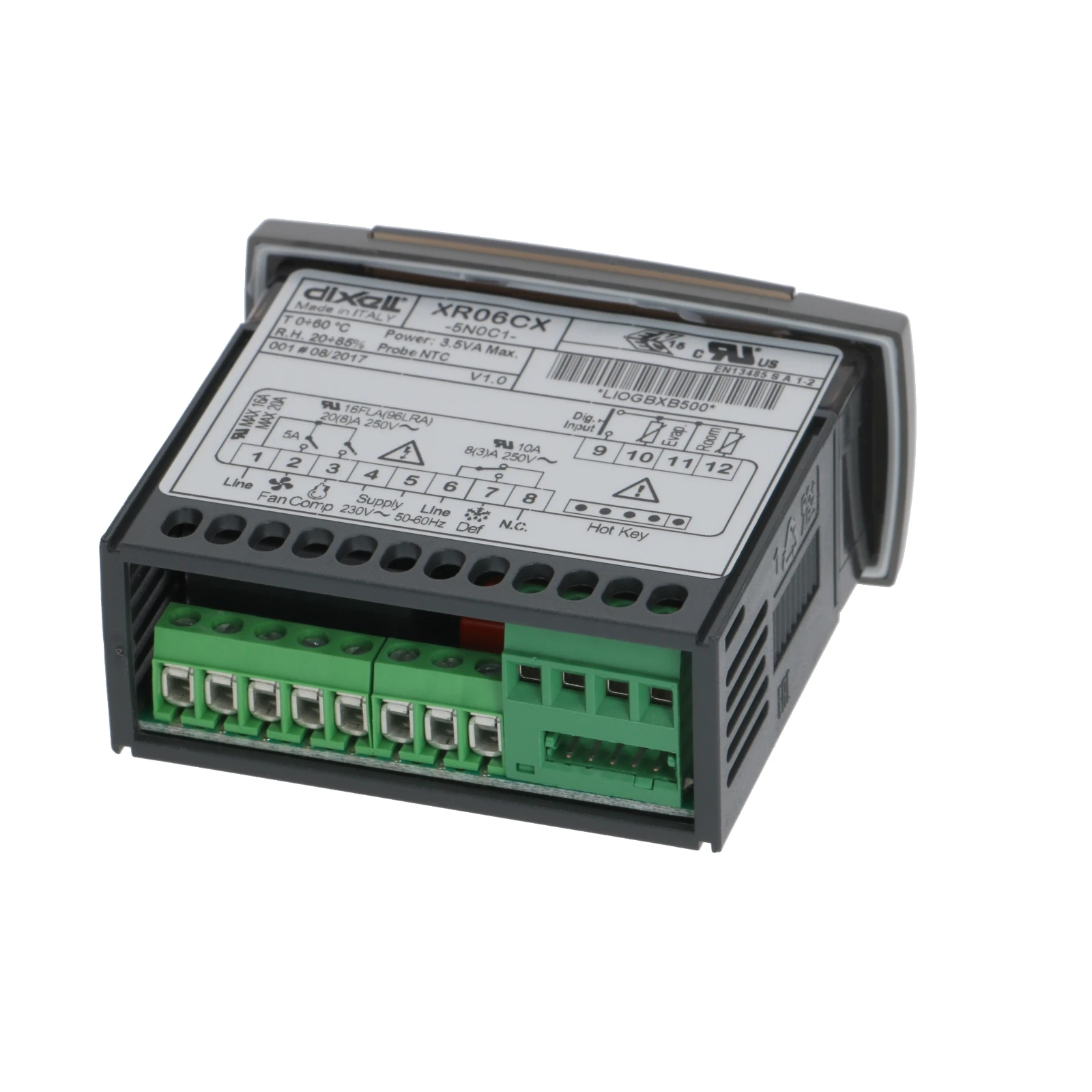

This is an electronic temperature controller from the „Dixell“ XR-CX range, model XR06CX-5N0C1. It switches the compressor, defrost and fans of a refrigeration unit through three relays rated 20 A (compressor), 8 A (defrost) and 5 A (fans). The controller is panel-mounted in a 71 × 29 mm cut-out and has inputs for two NTC temperature probes (sold separately).
LF lists this controller as fitting „Amatis“ and „Forcar“ equipment.
Technical specifications
| Manufacturer | „Dixell“ |
|---|---|
| Model | XR06CX-5N0C1 |
| Manufacturer code | X0LIOGBXB500-S00 |
| LF code | 3445441 |
| GEV code | 378273 |
| Type | Electronic temperature controller |
| Supply voltage | 230 V, 50/60 Hz |
| Relay outputs | Compressor 20 A, defrost 8 A, fans 5 A |
| Probe inputs | 2 NTC (probes sold separately) |
| Digital inputs | 1 (programmable) |
| Dimensions | Front 74 × 32 mm, depth 60 mm |
| Panel cut-out | 71 × 29 mm |
| Country of origin | Italy |
Compare the model with your old controller before ordering. The XR-CX range also includes the XR02CX, XR03CX and XR04CX, which have fewer relays or probe inputs.
| Spare part | |
| Manufacturer | „Dixell“ |
| Manufacturer code | X0LIOGBXB500-S00 (model XR06CX-5N0C1) |
| Type | Electronic temperature controller |
| Dimensions | Front 74 × 32 mm, depth 60 mm; panel cut-out 71 × 29 mm |
| Probe inputs | 2 NTC (probes sold separately) |
| Relay outputs | Compressor 20 A, defrost 8 A, fans 5 A |
| Supply voltage | 230 V, 50/60 Hz |
| Fits | „Amatis“ and „Forcar“ equipment (according to LF) |
108.00 €
(Excl. VAT)
