Built-in milk pitcher rinser 175 × 162 × 115 mm
Built-in milk pitcher rinser
A drop-in bowl with a glass fountain for a 155 × 140 mm worktop cut-out.
Turn a milk pitcher upside down, set it on the glass fountain and press lightly: a jet of water rinses the inside and runs to the drain. Baristas rinse the pitcher this way before the next drink.
Components

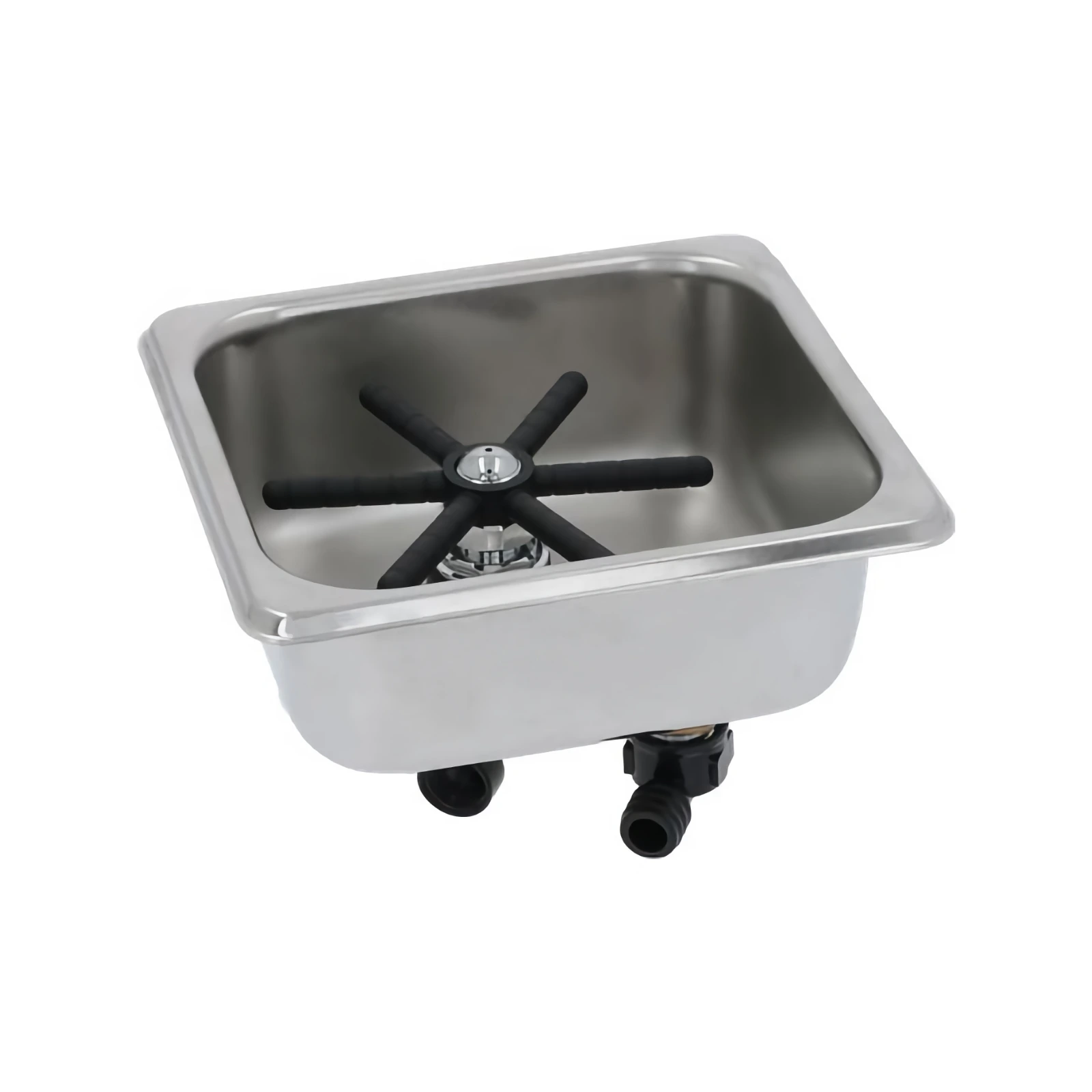

- Bowl — with a 175 × 162 mm rim that rests on the worktop.
- Glass fountain — the rinse nozzle in the centre of the bowl, with a six-arm holder.

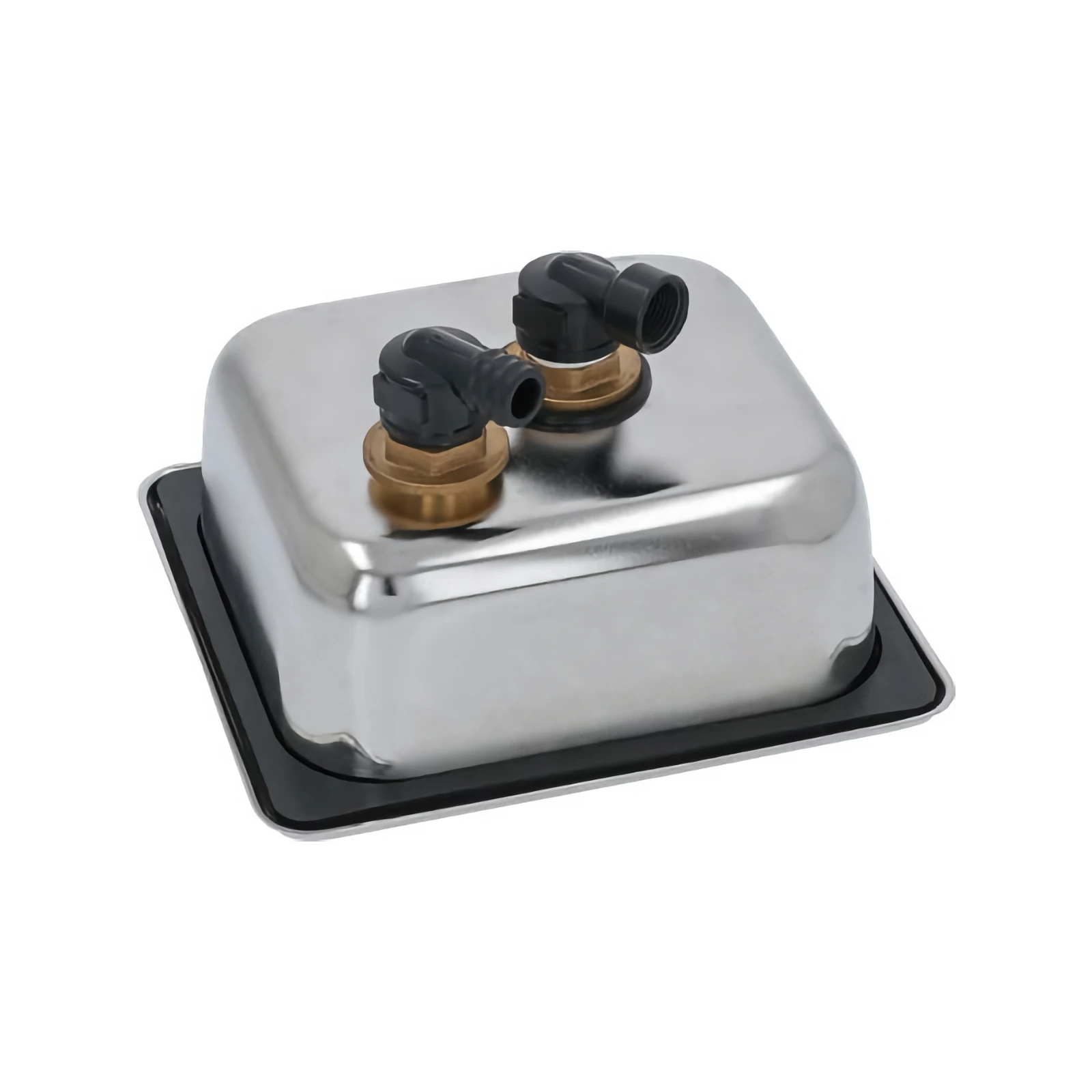

- Connections — under the bowl: cold water and drain.
Which rinser to choose
| „REPA“ 1224016 (this product) | Built-in „Celli“ 31578 | |
|---|---|---|
| Design | Bowl with glass fountain | Drip tray with grid and glass fountain |
| Dimensions | 175 × 162 × 115 mm | Rim 330 × 210 mm, recessed part 300 × 180 × 30 mm |
| Worktop cut-out | 155 × 140 mm | For the 300 × 180 mm recessed part of the tray |
| Water inlet | 3/8″ John Guest fitting | 8.8 mm hose barb |
| Drain | 1/2″ connection | 14.5 mm hose barb |
If you also need a drip tray with a grid around the glass fountain, choose the built-in „Celli“ 31578 or the countertop „Celli“ 62367.
Connection and installation
- Worktop: the bowl needs a 155 × 140 mm cut-out. The rinser is 115 mm high; leave room below the worktop for the bowl, connections and hoses.
- Water: cold water supply, 3/8″ John Guest fitting.
- Drain: 1/2″ connection to the waste pipe.
Technical specifications
| Manufacturer | „REPA“ |
|---|---|
| Manufacturer code | 1224016 |
| Installation | Set into a 155 × 140 mm worktop cut-out |
| Dimensions | 175 × 162 × 115 mm (W × D × H) |
| Glass fountain | In the centre of the bowl, with a six-arm holder |
| Water inlet | Cold water, 3/8″ John Guest |
| Drain | 1/2″ connection |
| Country of origin | China |
| Pitcher and glass rinser | |
| Manufacturer | „REPA“ |
| Manufacturer code | 1224016 |
| Installation | Set into a 155 × 140 mm worktop cut-out |
| Dimensions | 175 × 162 × 115 mm (W × D × H) |
| Glass fountain | In the centre of the bowl, with a six-arm holder |
| Water inlet | Cold water, 3/8″ John Guest |
| Drain | 1/2″ connection |
| Country of origin | China |
