Built-in pitcher and glass rinser „Celli“ 300 × 180 × 30 mm
Add to Cart
Celli
Italian manufacturer • Since 1974
Since 1974 Italy's „Celli“ has designed beverage dispensing equipment and is one of the recognised leaders in its field. Every „Celli“ product combines refined design, high performance and advanced technology.
Specialisation
From beer to frozen drinks
„Celli“ began with beer and soft drink dispensing and now also makes equipment for water and frozen drinks, plus complementary bar equipment and accessories.
Global brands
Supplier to „Heineken“ and „Coca-Cola“
„Celli“ is a strategic supplier to companies such as „Heineken“, „Carlsberg“, „AB InBev“, „Coca-Cola“ and „Pepsi“.
Worldwide
More than 100 countries
„Celli“ products are sold in more than 100 countries, with sales offices in Italy, the UK, France, Spain, Germany, Singapore and the USA.
Built-in pitcher and glass rinser „Celli“ 300 × 180 × 30 mm

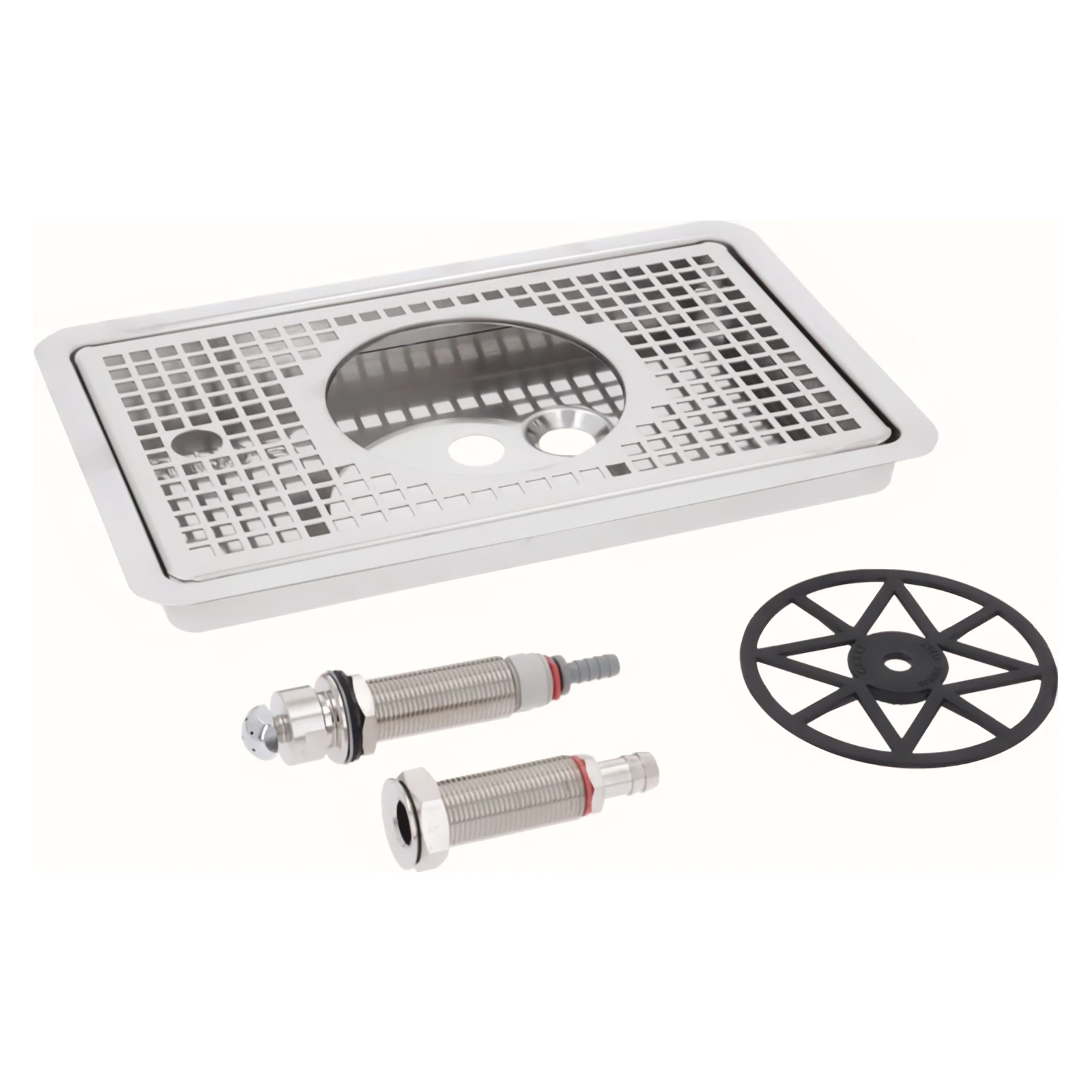

„Celli“ 31578 — built-in pitcher and glass rinser
Stainless steel drip tray for a worktop cut-out, with grid, glass fountain and drain fitting.
You rinse a glass or milk pitcher in one easy movement: set it upside down on the fountain’s star-shaped holder, press lightly, and a jet of water rinses the inside. A bartender wets and chills a glass just before pouring a beer; a barista rinses the milk pitcher between drinks. Lift the glass and the jet stops; the water runs through the drain fitting to the waste pipe.
Components
- Drip tray and grid — stainless steel. The tray collects drips and rinse water, and you stand glasses on the grid.

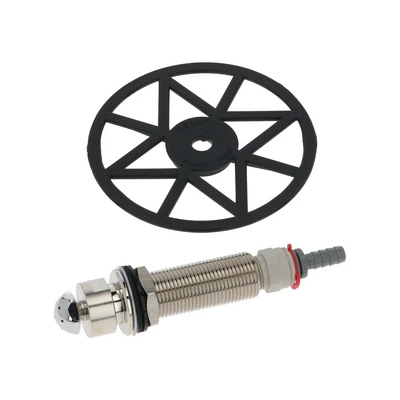

- Glass fountain „Celli“ 31402 — chrome-plated brass, in the centre of the tray. The star-shaped holder is 115 mm in diameter.

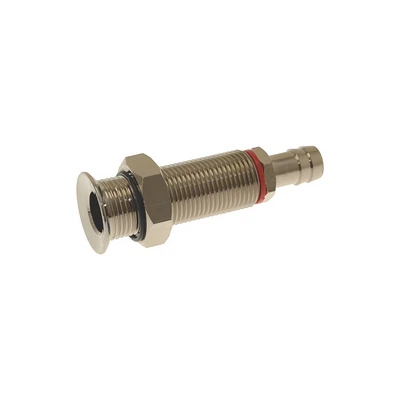

- Drain fitting „Celli“ 31004 — next to the fountain; the drain hose connects to it.
We also sell the fountain and the drain fitting separately as spare parts: glass fountain 31402 and drain fitting 31004.
Which rinser to choose
| Countertop 62367 | Built-in 31578 (this product) | |
|---|---|---|
| Installation | Placed on the worktop | Set into a cut-out in the worktop |
| Dimensions | 300 × 180 × 30 mm | Rim 330 × 210 mm, recessed part 300 × 180 × 30 mm |
| Drip tray and grid | Stainless steel | Stainless steel |
| Fountain and drain fitting | „Celli“ 31402 and 31004 | „Celli“ 31402 and 31004 |

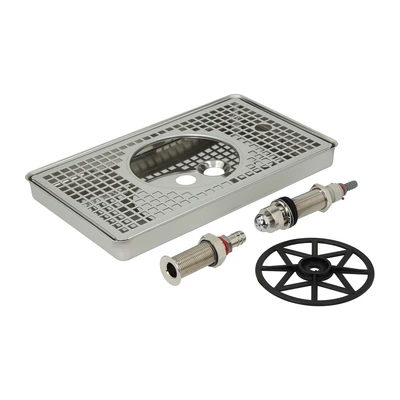

To place the rinser on top of the worktop, choose the countertop „Celli“ 62367. Where space is tight, choose the built-in 175 × 162 mm milk pitcher rinser.
Connection and installation
- Worktop: the 300 × 180 × 30 mm recessed part of the tray drops into the cut-out and the 330 × 210 mm rim rests on the worktop. Below the worktop, leave room for the fountain and drain bodies and the hoses.
- Water: the fountain is connected to the water supply with a hose pushed onto its 8.8 mm hose barb.
- Drain: a hose pushed onto the 14.5 mm barb of the drain fitting runs to the waste pipe.
Technical specifications
| Manufacturer | „Celli“ (Italy) |
|---|---|
| Manufacturer code | 31578 |
| Installation | Set into a cut-out in the worktop |
| Dimensions | Rim 330 × 210 mm, recessed part 300 × 180 × 30 mm |
| Drip tray | Stainless steel |
| Grid | Stainless steel |
| Glass fountain | „Celli“ 31402, chrome-plated brass, with a 115 mm star-shaped holder |
| Water inlet | 8.8 mm hose barb |
| Drain | „Celli“ 31004, 14.5 mm hose barb |
| Mounting thread | G 5/8″ |
| Supplied with | Drip tray, grid, glass fountain, drain fitting |
| Pitcher and glass rinser | |
| Manufacturer | „Celli“ (Italy) |
| Manufacturer code | 31578 |
| Installation | Set into a cut-out in the worktop |
| Dimensions | Rim 330 × 210 mm, recessed part 300 × 180 × 30 mm |
| Drip tray | Stainless steel |
| Grid | Stainless steel |
| Glass fountain | „Celli“ 31402, chrome-plated brass, with a 115 mm star-shaped holder |
| Water inlet | 8.8 mm hose barb |
| Drain | „Celli“ 31004, 14.5 mm hose barb |
| Mounting thread | G 5/8″ |
| Supplied with | Drip tray, grid, glass fountain, drain fitting |
