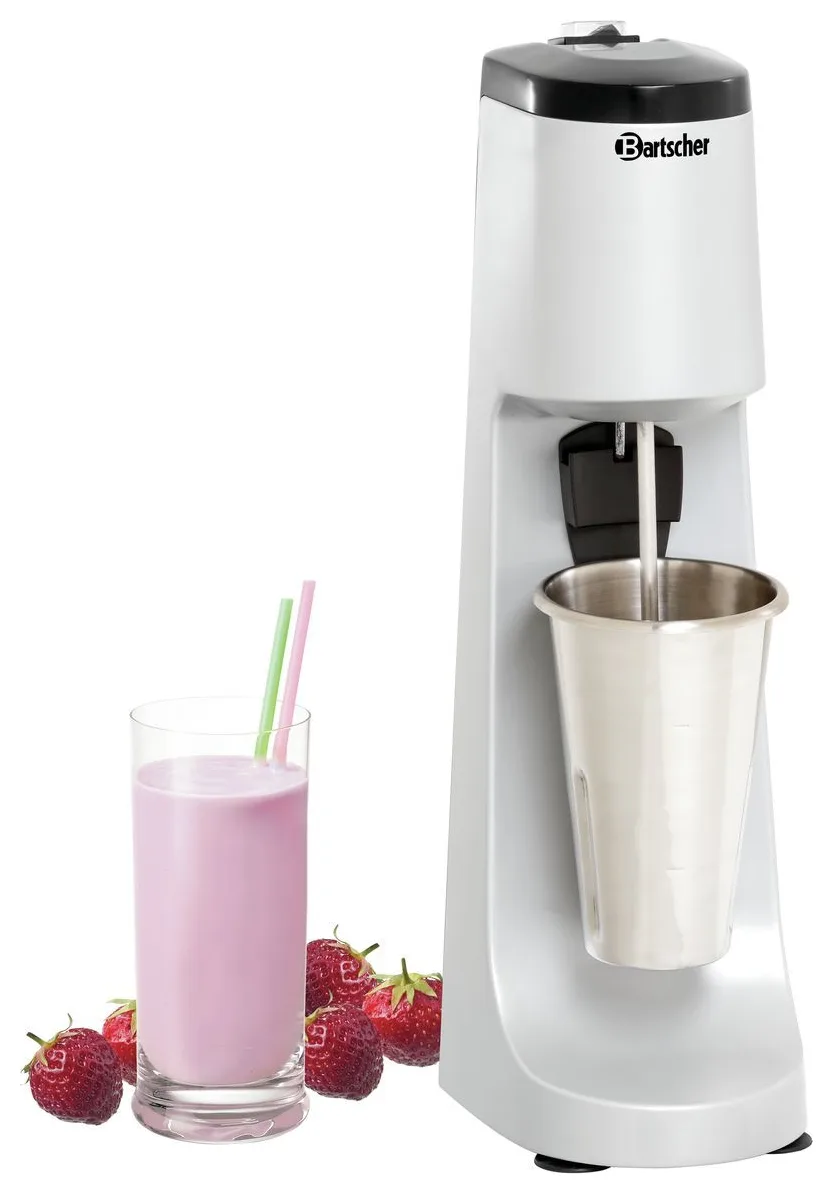

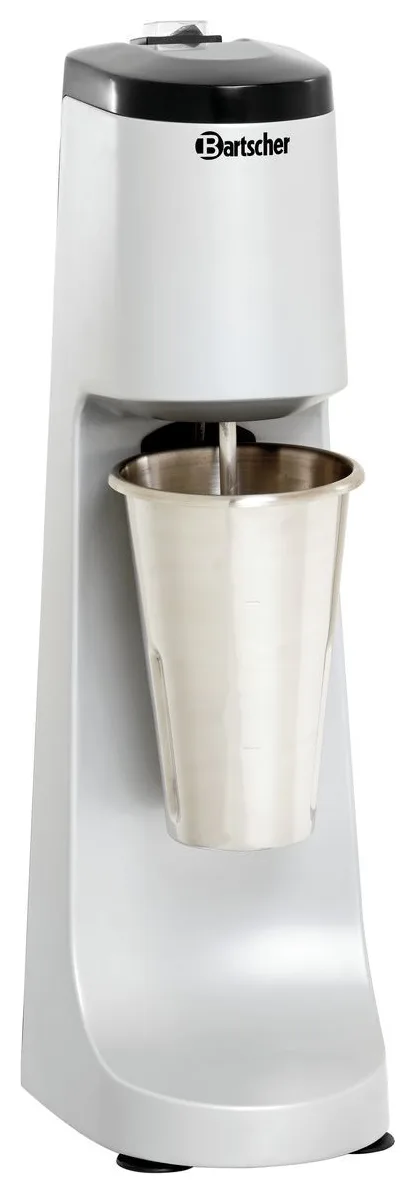

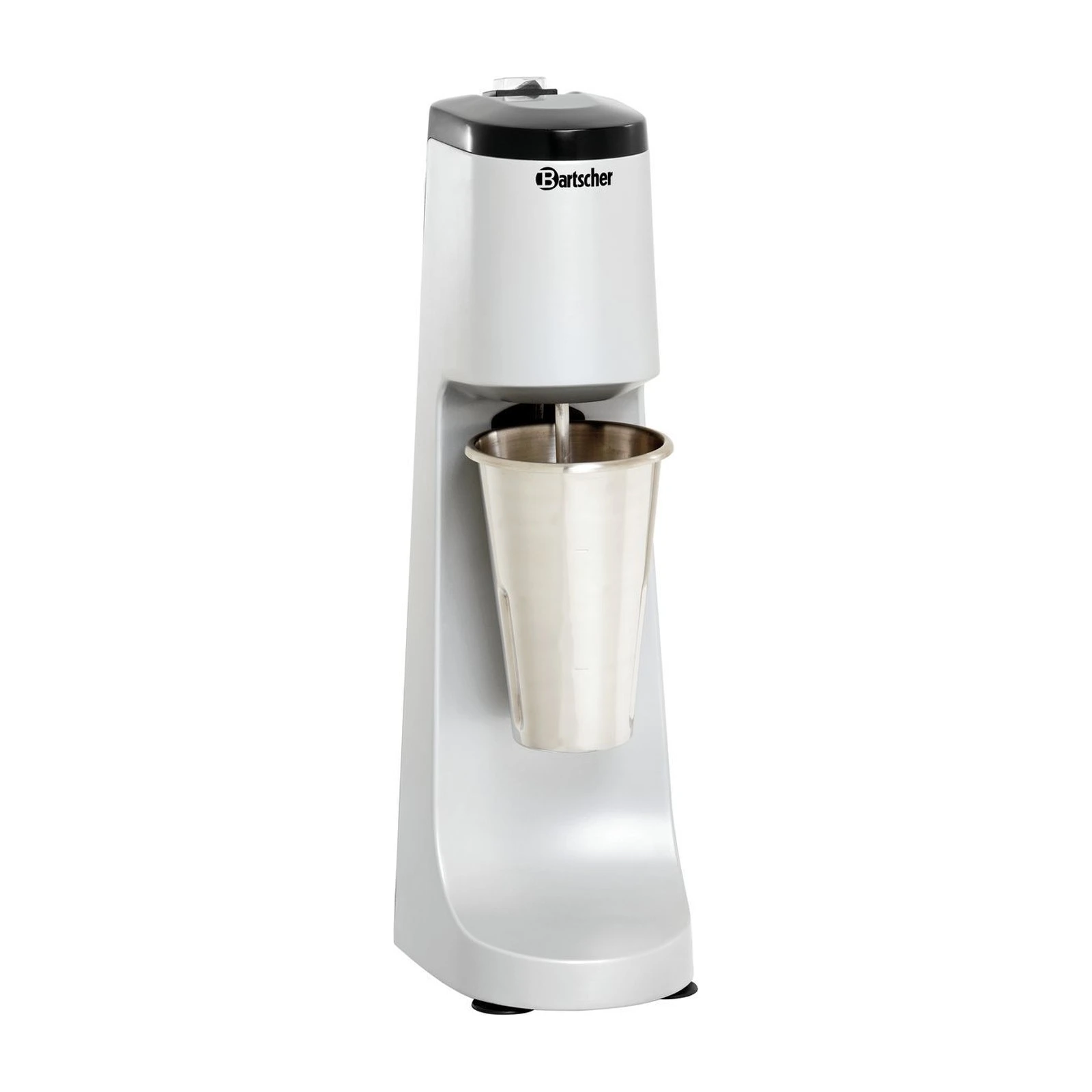

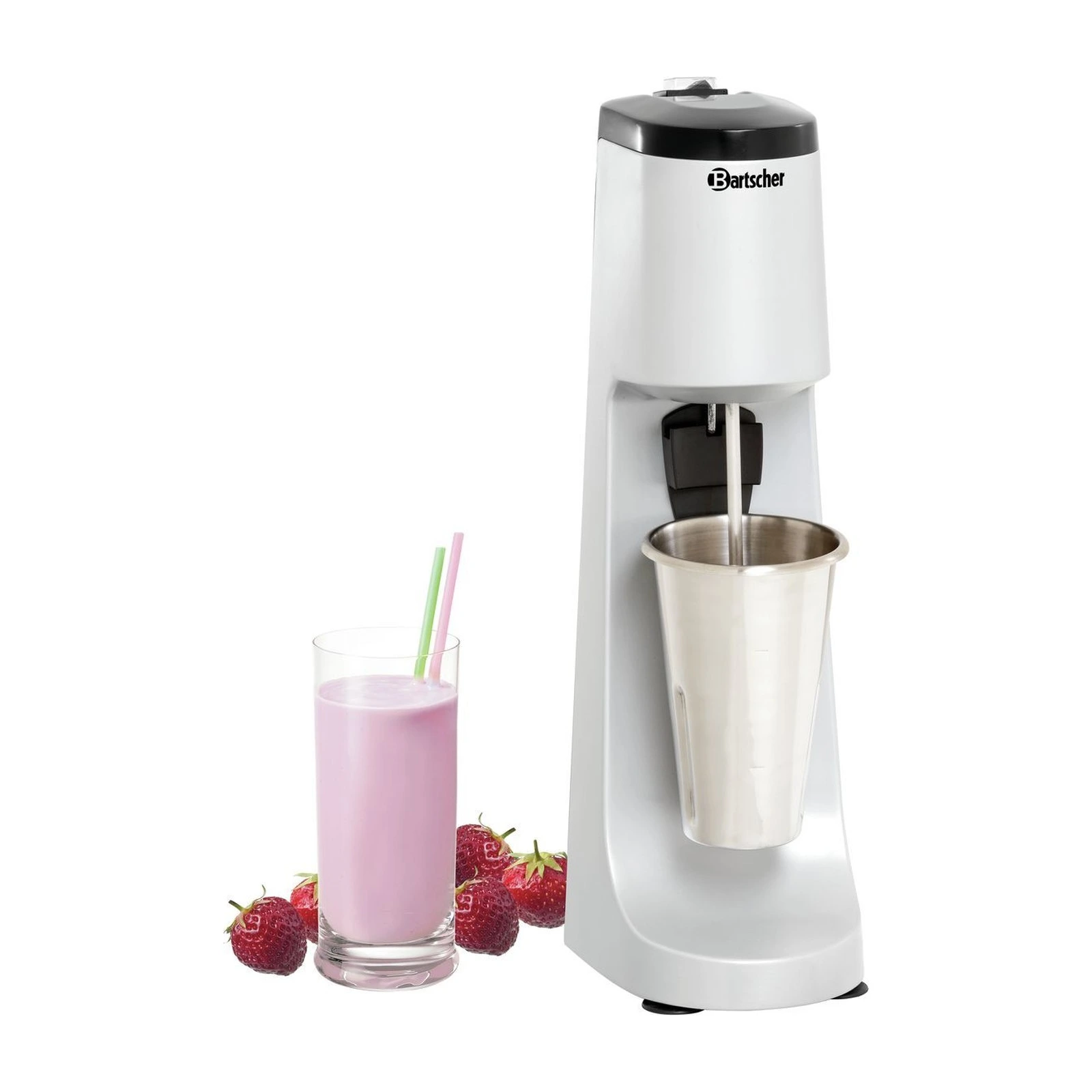

Drink mixer with a 0.95 L stainless steel cup
The „Bartscher“ Drink Mixer 650 ml has a 0.95 L stainless steel cup and a 400 W motor for milkshakes and other cocktails, sauces and mixed drinks.
Drink mixer „Bartscher“ 135105
Add to Cart
Technical data sheet: „Bartscher“ Drink Mixer 650 ml
Download PDF →
Official manufacturer data sheet (July 2026 edition): description, features, technical data, dimensions and weight. In English.
Spare parts diagram: „Bartscher“ Drink Mixer 650 ml
Download PDF →
Manufacturer exploded view with a spare parts list and part numbers (October 2015 edition). Part names are given in German and English. Useful when ordering parts.
Drink mixer „Bartscher“ 135105
What it is for
The mixer is built for light work: a milkshake or other drink reaches the texture you want in one to two minutes.
Two speeds and a stainless steel cup
Two speeds — slow I and fast II — suit drinks of different thickness: you start slow and whip the drink at full speed.

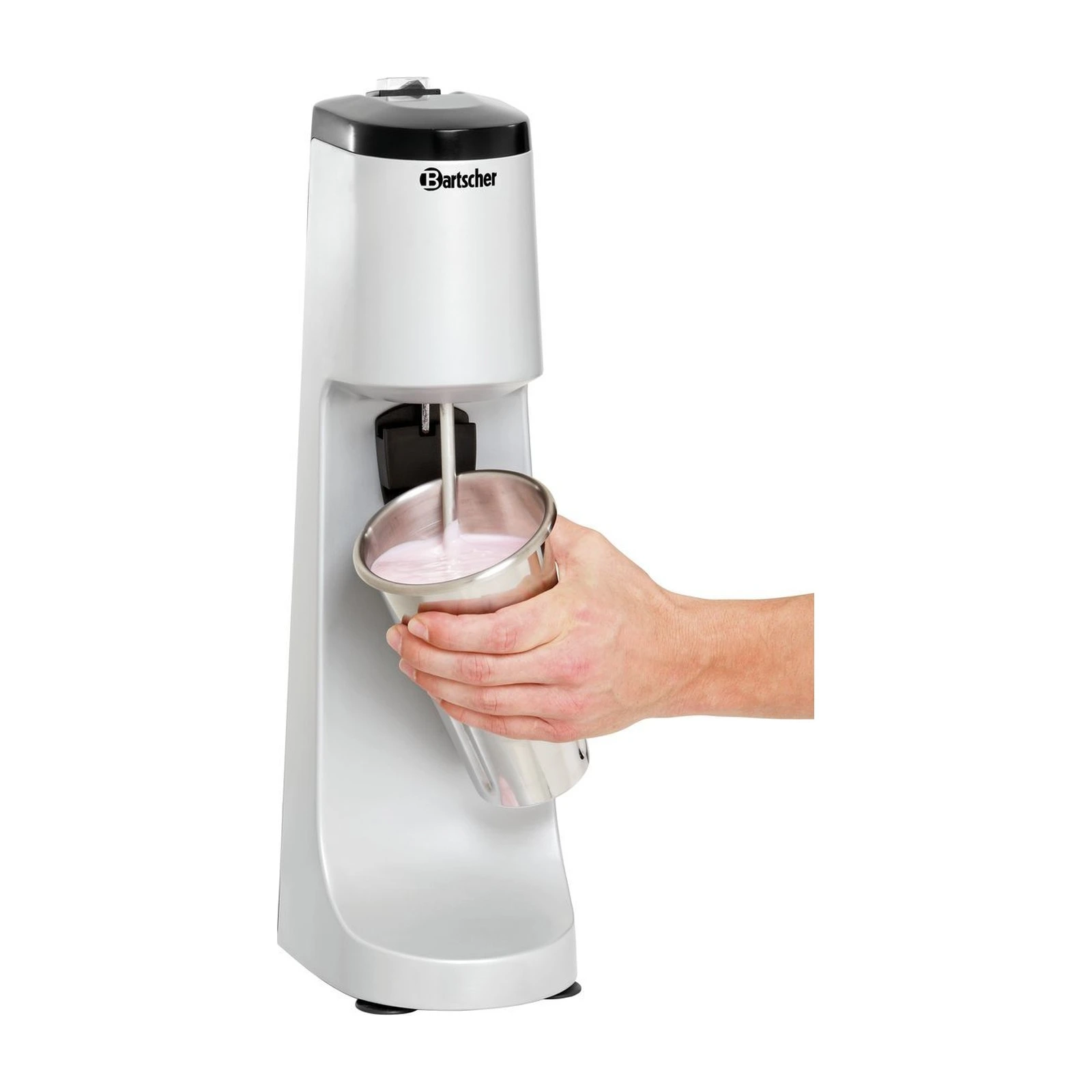

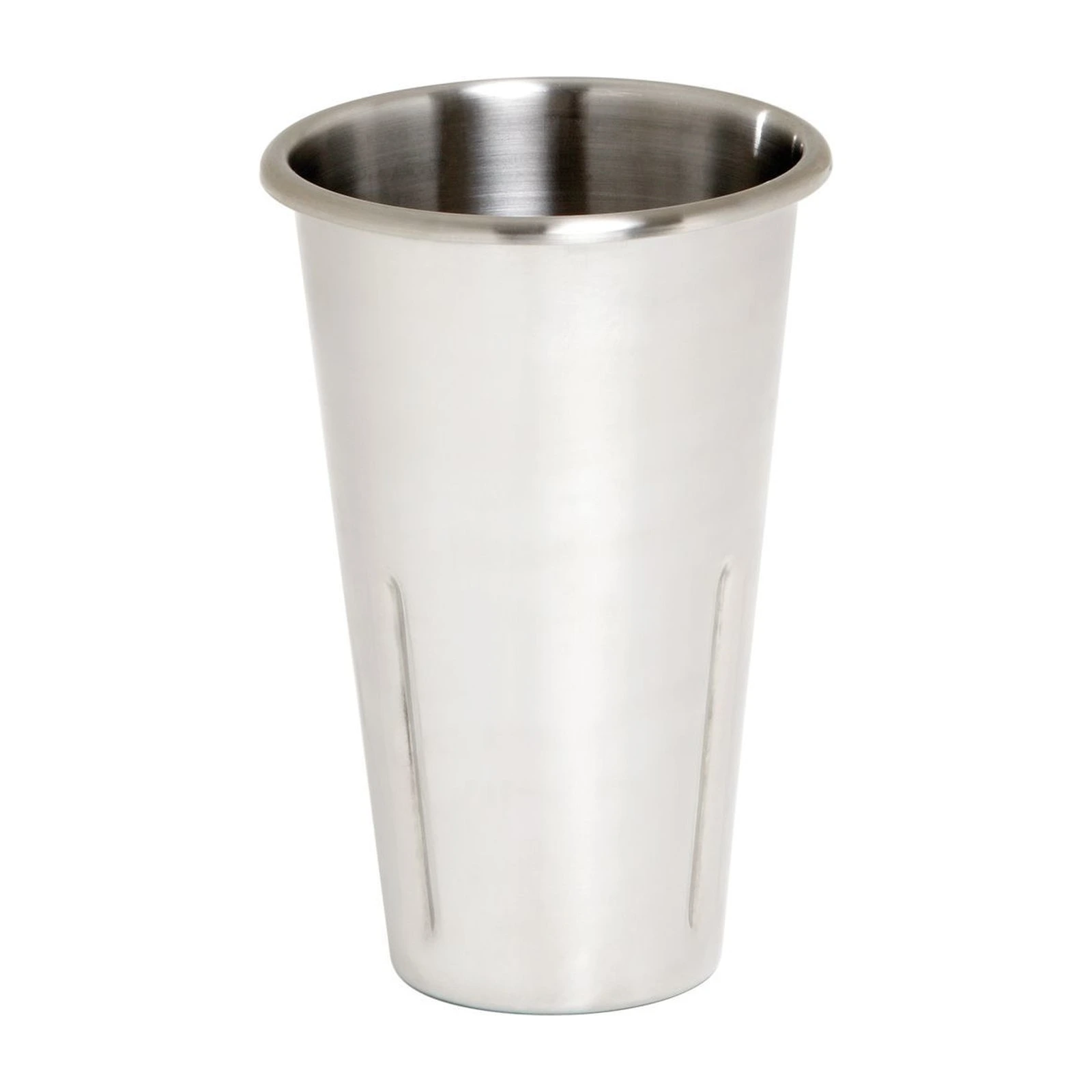

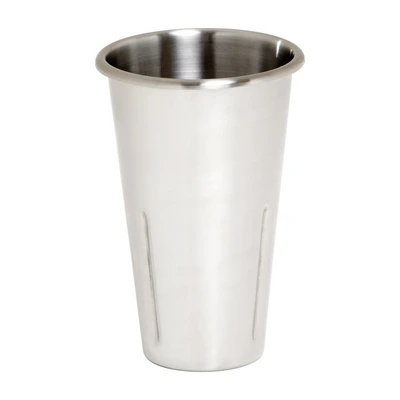

You mix 200 to 650 ml of drink at a time, and the easy-to-read scale in the 0.95 L cup shows how much you have poured in. The cup, mixing rod and mixing discs are all stainless steel.
The colder the ingredients, the better the result: cold milk makes a thicker, frothier milkshake. For drinks with ice, add ready-crushed ice — the „Santos“ #09 ice crusher makes it for you.
A steady stand

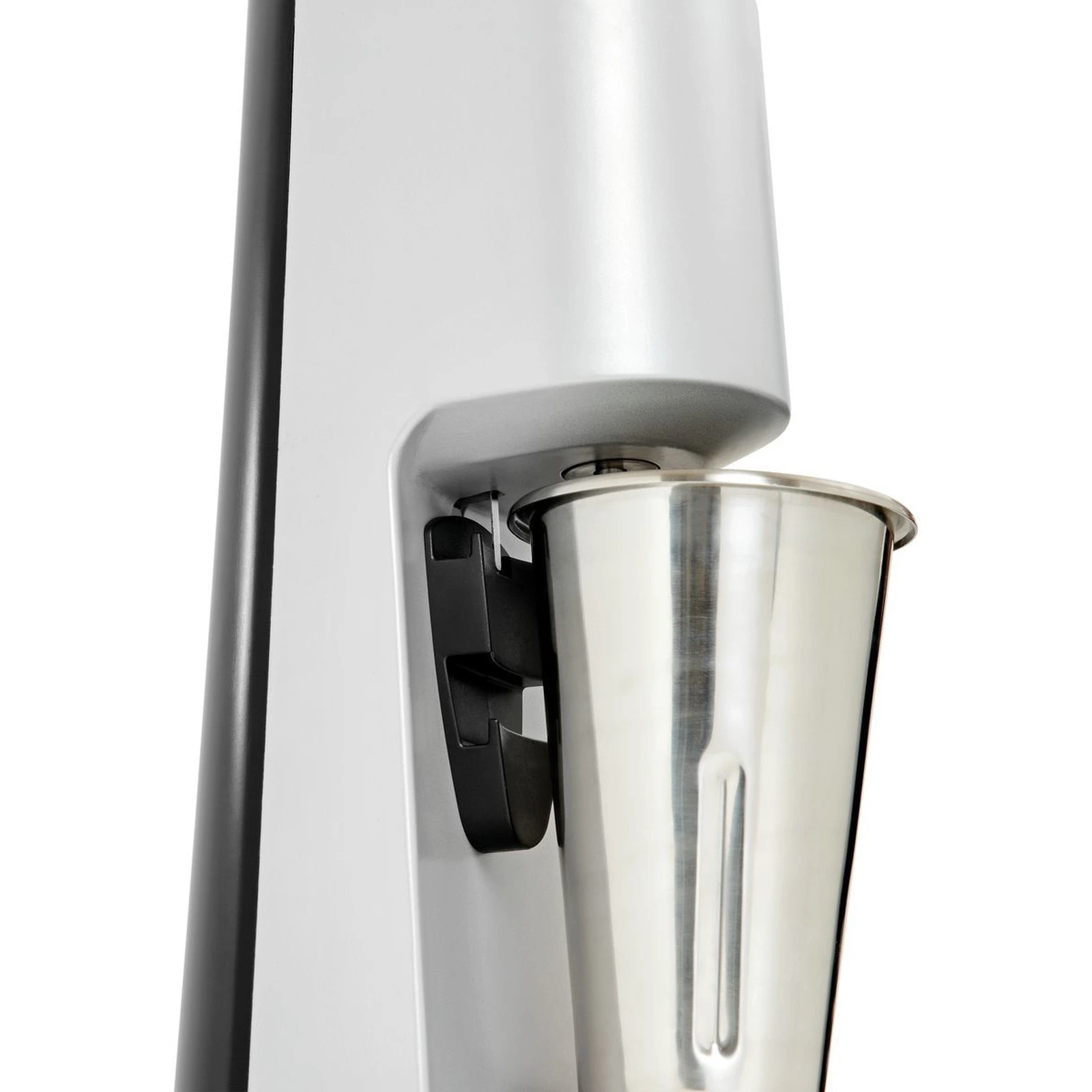

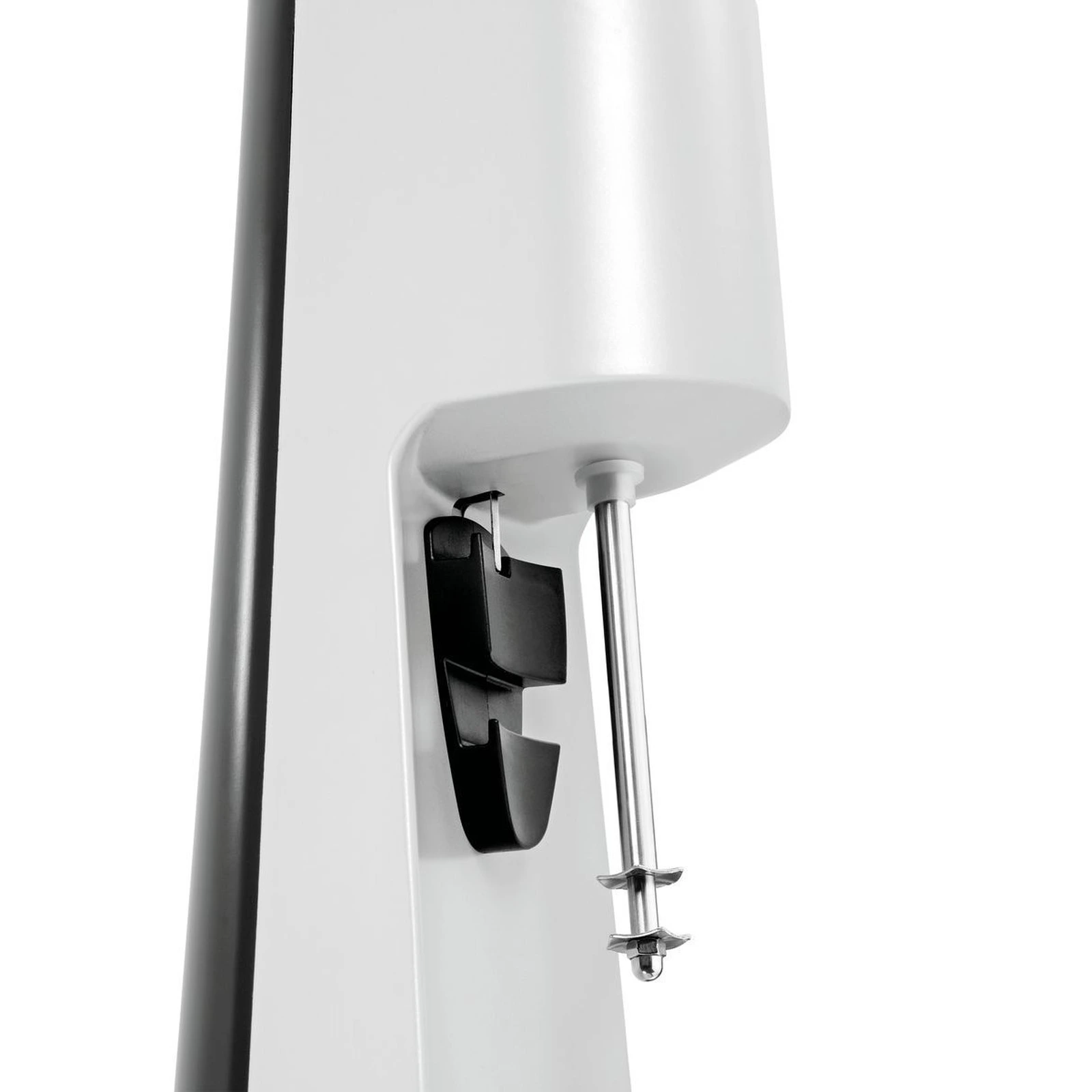

A microswitch in the cup holder lets the motor start once the cup is fitted correctly, and four suction feet hold the mixer firmly on the counter. The housing and stand are made of painted sheet steel.
Comparison
The „Bartscher“ 135105 has the largest cup of our drink mixers — 0.95 L — and a 400 W motor with two speeds.
| Model | „Bartscher“ 135105 | „Santos“ #54 | „Sirman“ Sirio 1 VV | „Sirman“ Sirio 2 VV |
|---|---|---|---|---|
| Cups | 0.95 L stainless steel (200–650 ml of drink) | 2 × 0.675 L (stainless steel and plastic) | 0.55 L Tritan or 0.9 L stainless steel | 2 × 0.55 L Tritan or 2 × 0.9 L stainless steel |
| Power | 400 W | 230 W | 100 W or 120 W | 2 × 100 W or 2 × 120 W |
| Speed | 2 speeds | 8,000–16,000 rpm | 4,000–14,000 rpm | 4,000–14,000 rpm, set separately for each head |
| Drinks at a time | 1 | 1 | 1 | 2 |
| Start | O–I–II switch | by fitting the cup on the holder | switch; the motor stops when the cup is lifted off | switches; the motor stops when the cup is lifted off |
| Agitators | mixing rod with discs | 3 interchangeable | on the spindle | on each spindle |
| Dimensions (W × D × H) | 160 × 205 × 500 mm | 182 × 186 × 530 mm | 150 × 195 × 485 or 530 mm | 300 × 195 × 485 or 530 mm |
| Weight | 6.2 kg | 5.75 kg | 2.5 or 3 kg | 5 or 6 kg |
If you want a mixer that starts as soon as you fit the cup, with three agitators for different drinks, choose the „Santos“ #54; if you make two drinks at once, go for the „Sirman“ Sirio 2 VV.
Installation and connections
- Power supply: single-phase 230 V, 50 Hz, 400 W. Plug the mixer directly into its own earthed socket rather than a multi-way adapter or extension lead.
- Location: a level, stable, dry surface that resists water and heat, in a well-ventilated place and back from the edge of the table, with at least 10 cm to combustible walls and objects.
- Dimensions and weight: 160 × 205 × 500 mm, 6.2 kg.
Running and spare parts
You clean the mixing rod by running the mixer for about 30 seconds at speed I with about 250 ml of warm water and washing-up liquid in the cup, then once more with clean water. The cup goes in the dishwasher.
Spare parts are ordered by the manufacturer's part numbers: cup — 01351051, mixing discs with gasket — 01351055, cup holder — 01351059, microswitch — 01351054, switch — 01351057, set of 4 feet — 01351052. Part numbers for everything else are in the spare parts diagram on the ‘Technical Data Sheet’ tab.
What’s in the box
The mixer comes with a 0.95 L stainless steel cup and the mixing rod with discs.
Technical specifications
| Manufacturer | „Bartscher“ |
|---|---|
| Model | Drink Mixer 650 ml |
| Manufacturer code | 135105 |
| Capacity | 0.95 L (fill with 200–650 ml) |
| Speed | I (slow) and II (fast) |
| Start and stop | three-position switch (O, I, II); a microswitch in the cup holder lets the motor start once the cup is fitted correctly |
| Cups | one, stainless steel, with a scale, dishwasher-safe |
| Agitators | one — stainless steel mixing rod with mixing discs |
| Power | 400 W |
| Power supply | 230 V, single-phase, 50 Hz |
| Power cord | with a plug for an earthed socket |
| Stand | painted sheet steel housing, on four suction feet |
| Cleaning | the cup is dishwasher-safe; the mixing rod is cleaned by running the mixer with warm soapy water in the cup |
| Dimensions (W × D × H) | 160 × 205 × 500 mm |
| Net weight | 6.2 kg |
| Spare parts | cup (01351051), mixing discs with gasket (01351055), cup holder (01351059), microswitch (01351054), switch (01351057), set of 4 feet (01351052) |
| Compliance | EU requirements (EC declaration of conformity) |
| Drink mixer | |
| Manufacturer | „Bartscher“ |
| Model | Drink Mixer 650 ml |
| Manufacturer code | 135105 |
| Capacity | 0.95 L (fill with 200–650 ml) |
| Speed | I (slow) and II (fast) |
| Start and stop | three-position switch (O, I, II); a microswitch in the cup holder lets the motor start once the cup is fitted correctly |
| Cups | one, stainless steel, with a scale, dishwasher-safe |
| Agitators | one — stainless steel mixing rod with mixing discs |
| Power | 400 W |
| Power supply | 230 V, single-phase, 50 Hz |
| Power cord | with a plug for an earthed socket |
| Stand | painted sheet steel housing, on four suction feet |
| Cleaning | the cup is dishwasher-safe; the mixing rod is cleaned by running the mixer with warm soapy water in the cup |
| Dimensions (W × D × H) | 160 × 205 × 500 mm |
| Net weight | 6.2 kg |
| Spare parts | cup (01351051), mixing discs with gasket (01351055), cup holder (01351059), microswitch (01351054), switch (01351057), set of 4 feet (01351052) |
| Compliance | EU requirements (EC declaration of conformity) |
| Manufacturer product page: | Open manufacturer page |
Technical data sheet: „Bartscher“ Drink Mixer 650 ml
Download PDF →
Official manufacturer data sheet (July 2026 edition): description, features, technical data, dimensions and weight. In English.
Spare parts diagram: „Bartscher“ Drink Mixer 650 ml
Download PDF →
Manufacturer exploded view with a spare parts list and part numbers (October 2015 edition). Part names are given in German and English. Useful when ordering parts.
