Snow ice and crushed ice from one disc
The „Santos“ #09 is a lever-operated ice crusher: one adjustable disc turns ice cubes into either fine snow ice or crushed ice. The motor is rated at 600 W.

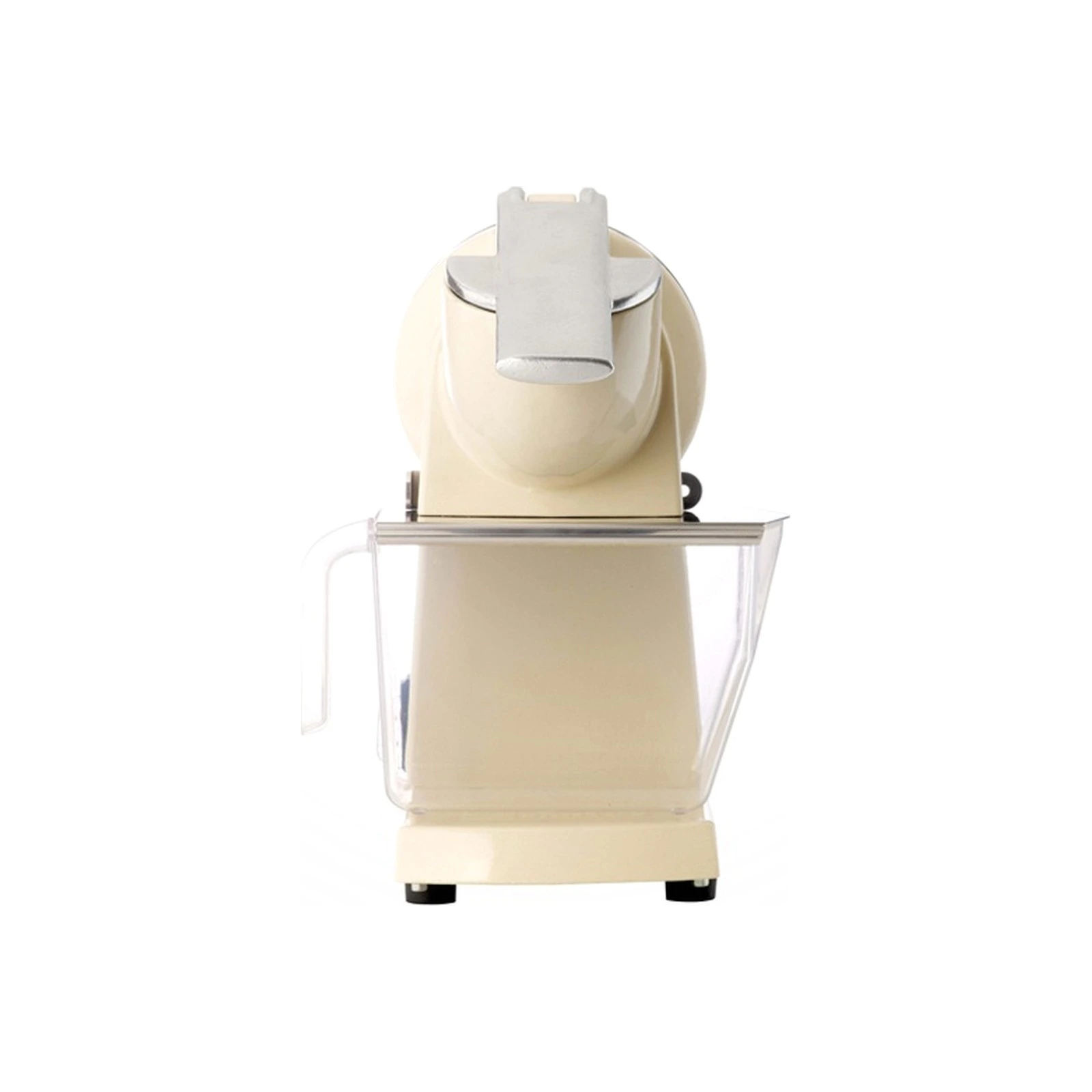

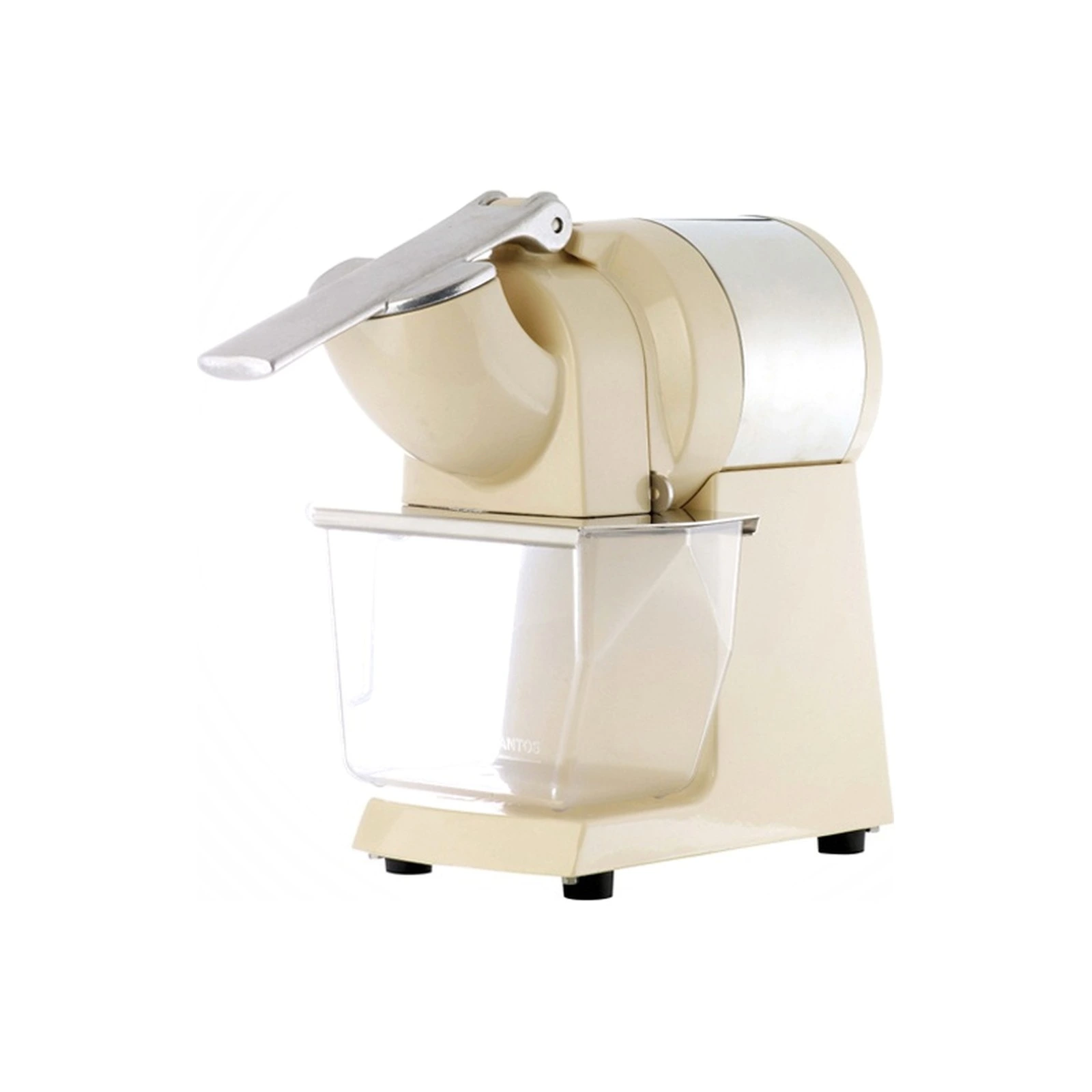

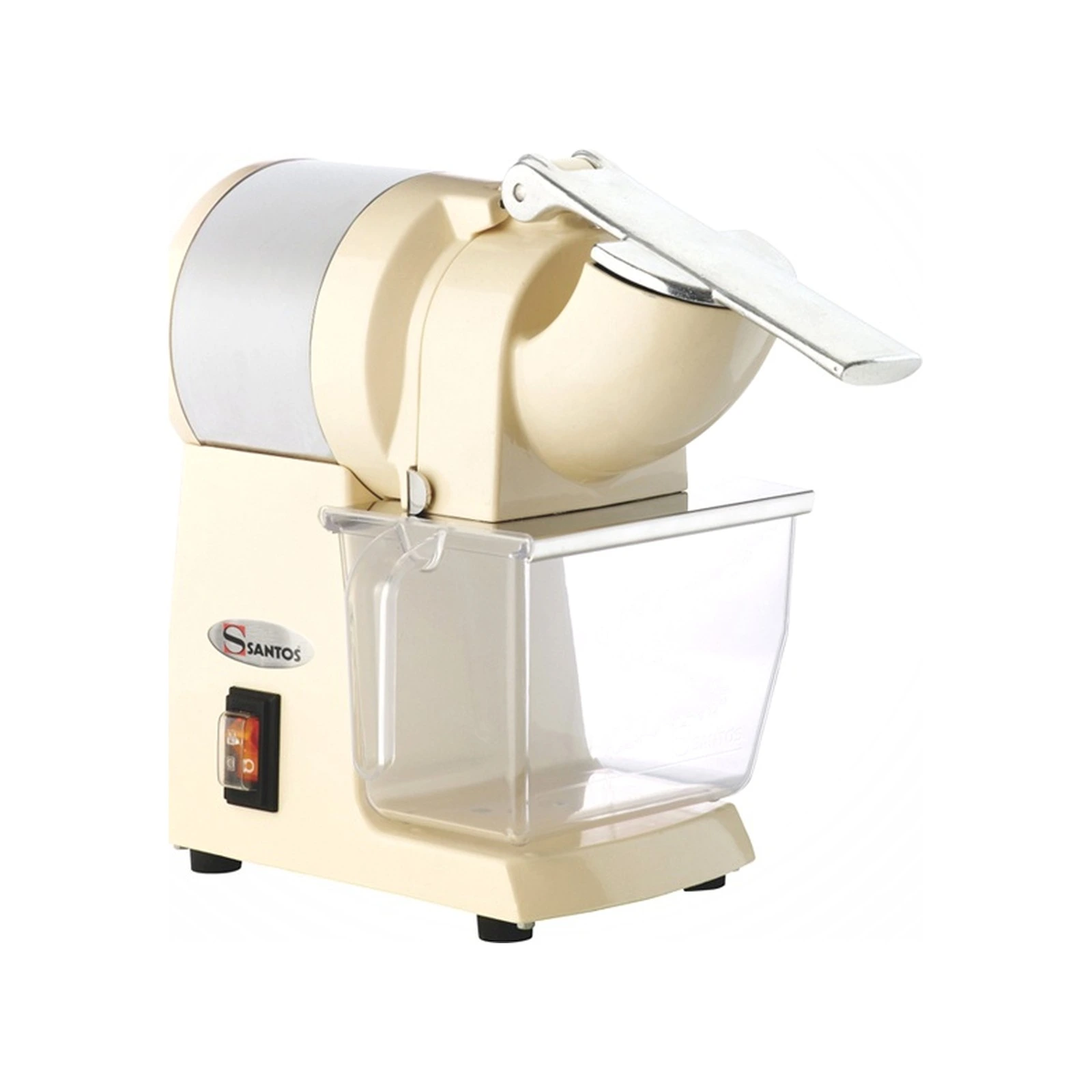

Ice crusher „Santos“ #09
Add to CartSantos
French manufacturer • Since 1954
Since 1954 France's „Santos“ has been making equipment for food preparation, coffee grinding and juicing. The company designs and builds all its machines in its own factory in Lyon, working with local suppliers.
MB „Restoranų įranga“ is the official distributor of „Santos“ S.A.S. in Lithuania.
Quality
Every unit tested
„Santos“ appliances are hand-assembled by operators who are responsible for them from the start of production to final inspection, and every unit is tested after assembly.
Innovation
The first brushless blender
„Santos“ appliances are known for their robustness and reliability, thanks in part to long experience in making motors, and the company was the first to put a brushless motor in a blender.
Durability
Parts for over 10 years
„Santos“ appliances are built to last, and the company guarantees all spare parts for more than 10 years after production, so an appliance can be repaired again and again.
Technical data sheet: „Santos“ #09
Download PDF →
Official manufacturer leaflet (June 2020 edition): features, the adjustable disc, safety, standards and hygiene, technical data, dimensions and weight. In English.
Spare parts diagram: „Santos“ #09
Download PDF →
Manufacturer drawing with spare part numbers, shared by the „Santos“ #02 cheese grater and the #09 ice crusher, for appliances built from June 2025 (serial no. 1311437 onwards). Parts used only on the ice crusher are marked ‘N°9’, parts used only on the grater ‘N°2’. Useful when ordering parts.
Ice crusher „Santos“ #09
What it is for

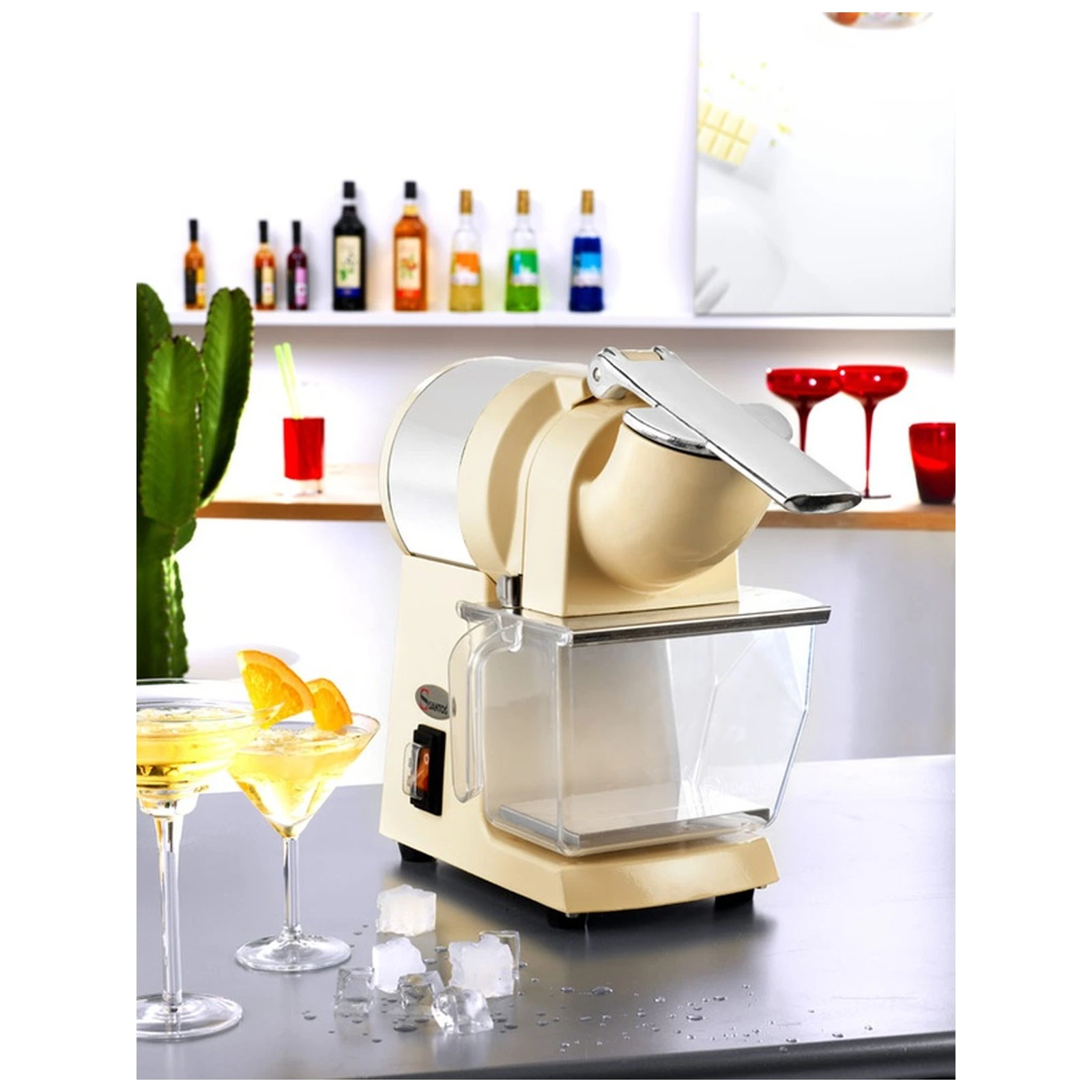

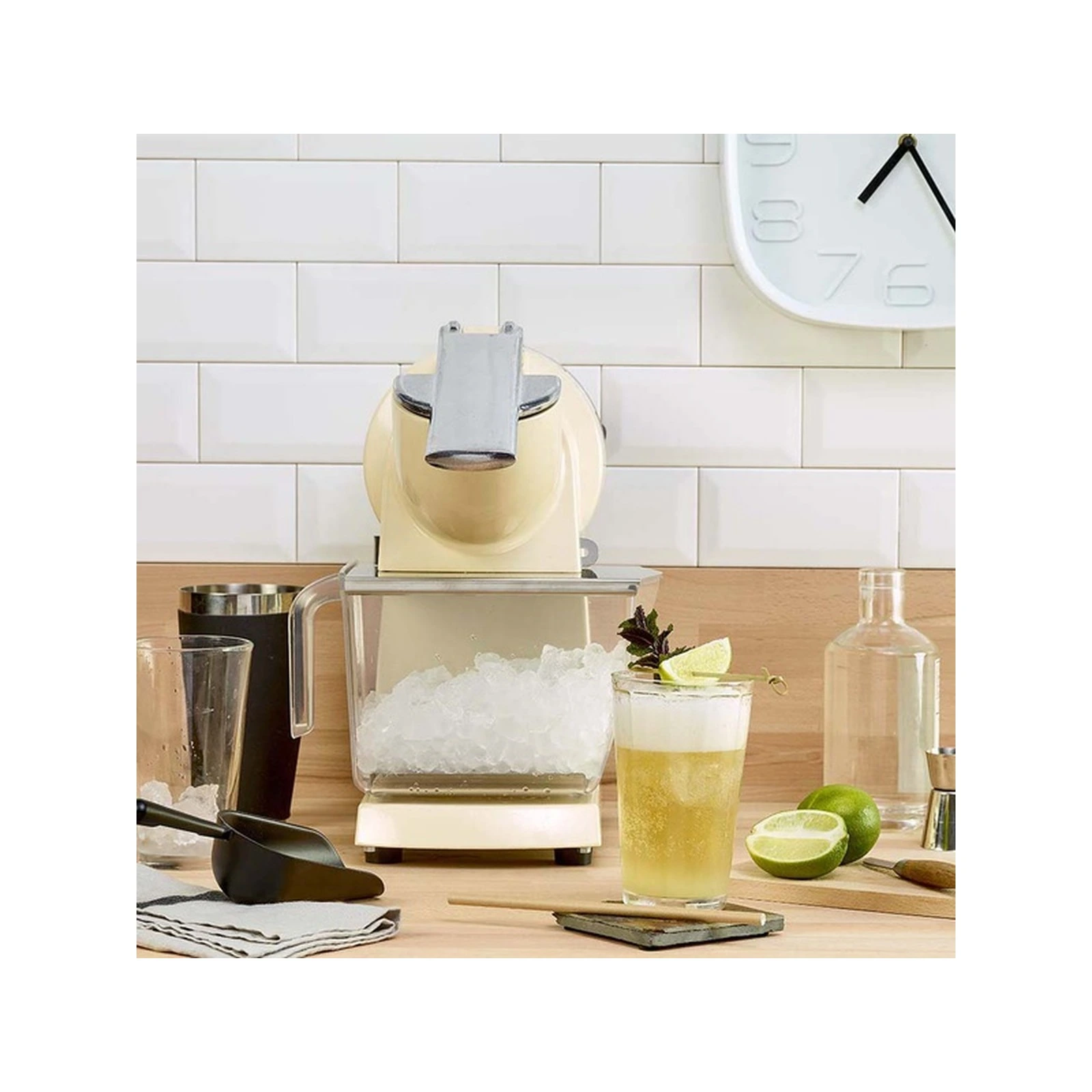

You make snow ice and crushed ice for cocktails, other drinks and fish displays.
The duty cycle is 15 minutes on and 5 minutes off (EN 60335-2-64).
Adjustable disc, lever and drawer
Ice cubes go into the feed chute, and the sturdy, ergonomic lever presses them onto the spinning disc (1,500 rpm on a 50 Hz supply). Two screws set the position of the knife on the disc: the cutting height decides whether you get snow ice or crushed ice.
The ice drops into a pull-out 800 g drawer made of shockproof, BPA-free plastic, with a stainless steel plate in the bottom. Materials in contact with food comply with Regulations (EC) No 1935/2004 and (EU) No 10/2011.
Raising the lever stops the motor and lowering it starts it again; pulling out the drawer switches the ice crusher off, and once the drawer is back in, you restart the ice crusher with the switch.
A sturdy body
The body is cast aluminium and stainless steel, and the disc is driven by an induction motor with an internal thermal cut-out. If the motor jams or the power fails, the waterproof switch trips to 0. The noise level is 71 dB(A) at 1 m.
The ice crusher is quick to clean: the housing with the feed chute and lever lifts off, as does the disc, and with the locking key that holds the housing you also undo the disc screw.
Comparison
The #09 makes both snow ice and crushed ice with one disc, and the ice drops into an 800 g drawer.
| Model | „Santos“ #09 | „Fimar“ TRL | „Fimar“ ROGM |
|---|---|---|---|
| Ice texture | snow ice or crushed ice | crushed ice for granitas | ice pieces for cocktails, adjustable size |
| Power | 600 W | 350 W | 150 W |
| Crushing mechanism | adjustable disc with a knife | stainless steel blade | stainless steel blade assembly |
| Ice feed | feed chute and lever | hopper and lever | 3-litre cup with a lid |
| Body | cast aluminium and stainless steel | ABS plastic | painted aluminium alloy |
| Weight | 14.7 kg | 8 kg | 5 kg |
If you need large amounts of crushed ice for granitas (about 120 kg an hour), choose the „Fimar“ TRL; for cocktail ice pieces in a size you set, go for the „Fimar“ ROGM.
Installation and connections
- Power supply: single-phase 220–240 V, 50/60 Hz, 600 W. The plug goes into its own standard earthed socket (2 pole + earth) on a circuit protected by a residual current device (RCD) and a 16 A fuse.
- Location: a worktop or bar counter indoors, away from sources of heat, sloping by up to 10°, with all the feet resting on it.
- Dimensions and weight: 250 × 420 × 350 mm, 14.7 kg.
Running and spare parts
The housing, disc and drawer are washed with washing-up liquid or in the dishwasher; the body just needs a wipe with a damp sponge and an occasional polish with a non-abrasive glass or metal cleaner. The bearings are lubricated for life.
The wear part is the disc with its knife. Spare parts are ordered by the manufacturer's part numbers: ice crushing disc — 09201, drawer — 09502, locking key — 09126. Part numbers for everything else are in the spare parts diagram on the ‘Technical Data Sheet’ tab.
What’s in the box
The ice crusher comes with the adjustable disc, the 800 g drawer with its stainless steel plate and the locking key.
Technical specifications
| Manufacturer | „Santos“ |
|---|---|
| Model | #09 |
| Manufacturer code | 09 (beige) |
| Ice texture | snow ice or crushed ice, depending on the knife setting on the disc |
| Crushing mechanism | adjustable disc with a knife, fitted on the motor shaft (one disc supplied) |
| Ice feed | ice cubes go into the feed chute and are pressed onto the disc with the lever |
| Ice container | pull-out drawer in shockproof, BPA-free plastic; holds 800 g of ice; stainless steel plate in the bottom |
| Safety | the motor stops when the lever is raised or the drawer is pulled out; once the drawer is back in, the machine must be switched on again |
| Switch | waterproof on/off; trips to 0 if the motor jams or the power fails |
| Motor | single-phase asynchronous, with an internal thermal cut-out |
| Power | 600 W |
| Power supply | 220–240 V, single-phase, 50/60 Hz |
| Speed | 1,500 rpm (50 Hz), 1,800 rpm (60 Hz) |
| Power cord | with a plug for an earthed socket |
| Duty cycle | intermittent: 15 minutes on, 5 minutes off |
| Noise level | 71 dB(A) at 1 m |
| Body | cast aluminium and stainless steel |
| Cleaning | the housing and disc lift off; removable parts are dishwasher-safe |
| Dimensions (W × D × H) | 250 × 420 × 350 mm |
| Net weight | 14.7 kg |
| Gross weight | 15.7 kg |
| Package dimensions (W × D × H) | 295 × 455 × 410 mm |
| Spare parts | crushing disc (09201), drawer (09502), locking key (09126) |
| Compliance | CE, RoHS |
| Country of origin | France |
| Ice crusher | |
| Manufacturer | „Santos“ |
| Model | #09 |
| Manufacturer code | 09 (beige) |
| Ice texture | snow ice or crushed ice, depending on the knife setting on the disc |
| Crushing mechanism | adjustable disc with a knife, fitted on the motor shaft (one disc supplied) |
| Ice feed | ice cubes go into the feed chute and are pressed onto the disc with the lever |
| Ice container | pull-out drawer in shockproof, BPA-free plastic; holds 800 g of ice; stainless steel plate in the bottom |
| Safety | the motor stops when the lever is raised or the drawer is pulled out; once the drawer is back in, the machine must be switched on again |
| Switch | waterproof on/off; trips to 0 if the motor jams or the power fails |
| Motor | single-phase asynchronous, with an internal thermal cut-out |
| Power | 600 W |
| Power supply | 220–240 V, single-phase, 50/60 Hz |
| Speed | 1,500 rpm (50 Hz), 1,800 rpm (60 Hz) |
| Power cord | with a plug for an earthed socket |
| Duty cycle | intermittent: 15 minutes on, 5 minutes off |
| Noise level | 71 dB(A) at 1 m |
| Body | cast aluminium and stainless steel |
| Cleaning | the housing and disc lift off; removable parts are dishwasher-safe |
| Dimensions (W × D × H) | 250 × 420 × 350 mm |
| Net weight | 14.7 kg |
| Gross weight | 15.7 kg |
| Package dimensions (W × D × H) | 295 × 455 × 410 mm |
| Spare parts | crushing disc (09201), drawer (09502), locking key (09126) |
| Compliance | CE, RoHS |
| Country of origin | France |
| Manufacturer product page: | Open manufacturer page |
Technical data sheet: „Santos“ #09
Download PDF →
Official manufacturer leaflet (June 2020 edition): features, the adjustable disc, safety, standards and hygiene, technical data, dimensions and weight. In English.
Spare parts diagram: „Santos“ #09
Download PDF →
Manufacturer drawing with spare part numbers, shared by the „Santos“ #02 cheese grater and the #09 ice crusher, for appliances built from June 2025 (serial no. 1311437 onwards). Parts used only on the ice crusher are marked ‘N°9’, parts used only on the grater ‘N°2’. Useful when ordering parts.
