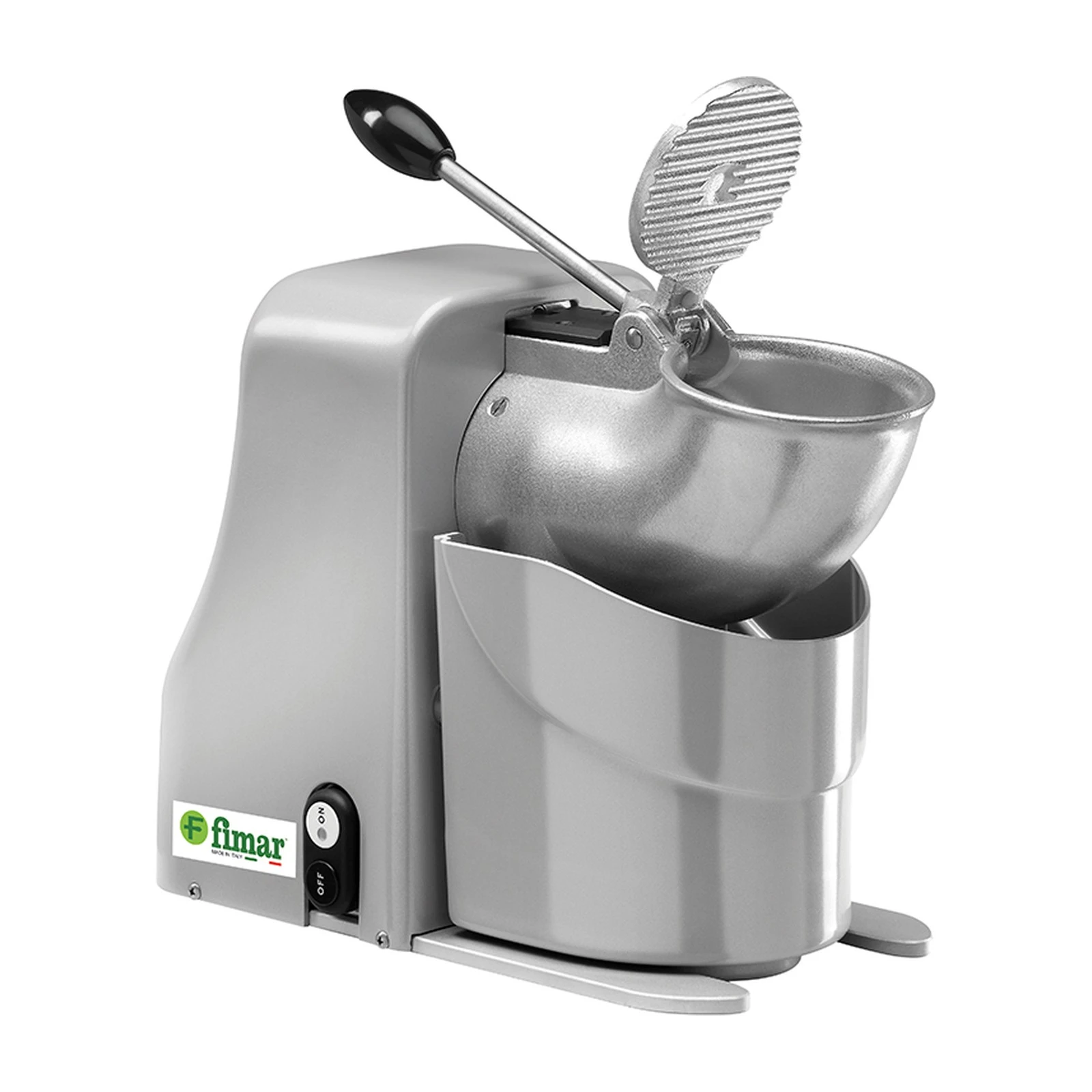

The „Fimar“ TRL is a commercial lever-operated ice crusher for making granitas and cocktails. It has an output of about 120 kg/h and a 350 W motor.
The housing is ABS plastic and the hopper is light alloy. The ice crusher is made in Italy.
The crushed ice falls by gravity into a container that stands under the hopper.
Put the ice in the hopper and press it down with the lever. A stainless steel blade, driven by the motor at 1,200 rpm, does the crushing.
There is a microswitch on the lever, and the machine is switched on and off with the ON and OFF buttons on the housing.
The ice crusher is 210 mm wide, 465 mm deep and 310 mm high, and weighs 8 kg. Packed, it weighs 9 kg, and the box measures 280 × 540 × 310 mm.
The 350 W ice crusher connects to a single-phase 230 V supply (50/60 Hz).
| Manufacturer | „Fimar“ |
|---|---|
| Model | TRL |
| Manufacturer code | TRL |
| Output | about 120 kg/h |
| Ice texture | crushed ice for granitas |
| Crushing mechanism | stainless steel blade |
| Ice feed | the ice goes into the light-alloy hopper and is pressed down with the lever |
| Ice container | stands under the hopper; the crushed ice falls into it by gravity |
| Safety | microswitch on the lever |
| Switch | ON and OFF push buttons on the housing |
| Power | 350 W |
| Power supply | 230 V, single-phase, 50/60 Hz |
| Speed | 1,200 rpm |
| Body | ABS plastic |
| Dimensions (W × D × H) | 210 × 465 × 310 mm |
| Net weight | 8 kg |
| Gross weight | 9 kg |
| Package dimensions (W × D × H) | 280 × 540 × 310 mm |
| Country of origin | Italy |
| Ice crusher | |
| Manufacturer | „Fimar“ |
| Model | TRL |
| Manufacturer code | TRL |
| Output | about 120 kg/h |
| Ice texture | crushed ice for granitas |
| Crushing mechanism | stainless steel blade |
| Ice feed | the ice goes into the light-alloy hopper and is pressed down with the lever |
| Ice container | stands under the hopper; the crushed ice falls into it by gravity |
| Safety | microswitch on the lever |
| Switch | ON and OFF push buttons on the housing |
| Power | 350 W |
| Power supply | 230 V, single-phase, 50/60 Hz |
| Speed | 1,200 rpm |
| Body | ABS plastic |
| Dimensions (W × D × H) | 210 × 465 × 310 mm |
| Net weight | 8 kg |
| Gross weight | 9 kg |
| Package dimensions (W × D × H) | 280 × 540 × 310 mm |
| Country of origin | Italy |
