Brema Ice CB 184 HC 1.0 is a self-contained undercounter ice maker for bars, restaurants, hotels and clubs that need a steady supply of cube ice in a compact footprint.
The model uses the Brema sprayer system and produces up to 23 kg of 13 g cube ice per 24 hours, with 21 kg output at 21°C air / 15°C water standard conditions, with an integrated storage bin for up to 4 kg of ice.
CB 184 HC 1.0 uses R290 hydrocarbon refrigerant. The machine can be supplied with air or water condensation, so it can be matched to the installation conditions of the site.

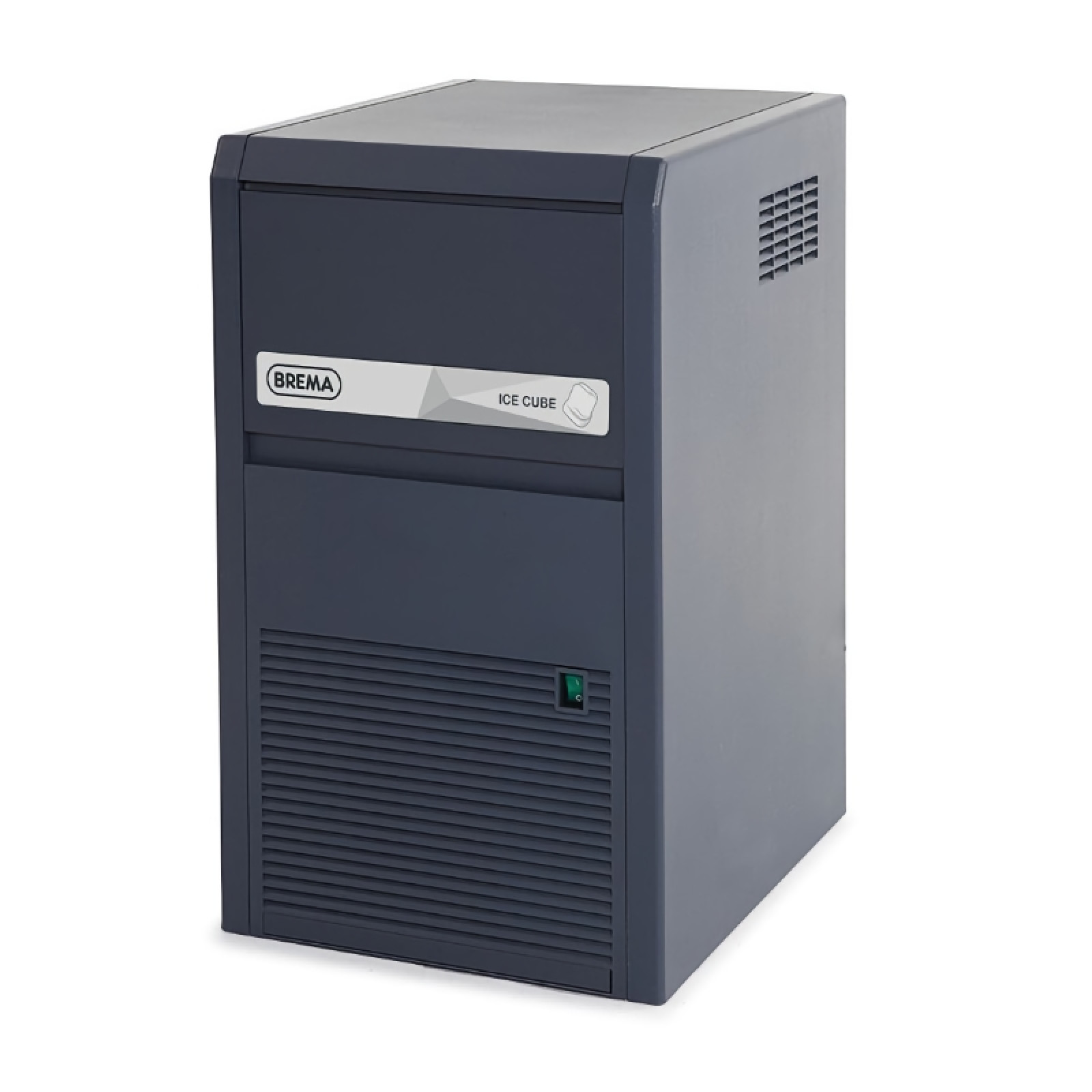

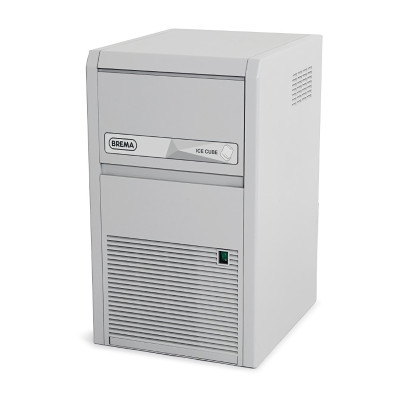

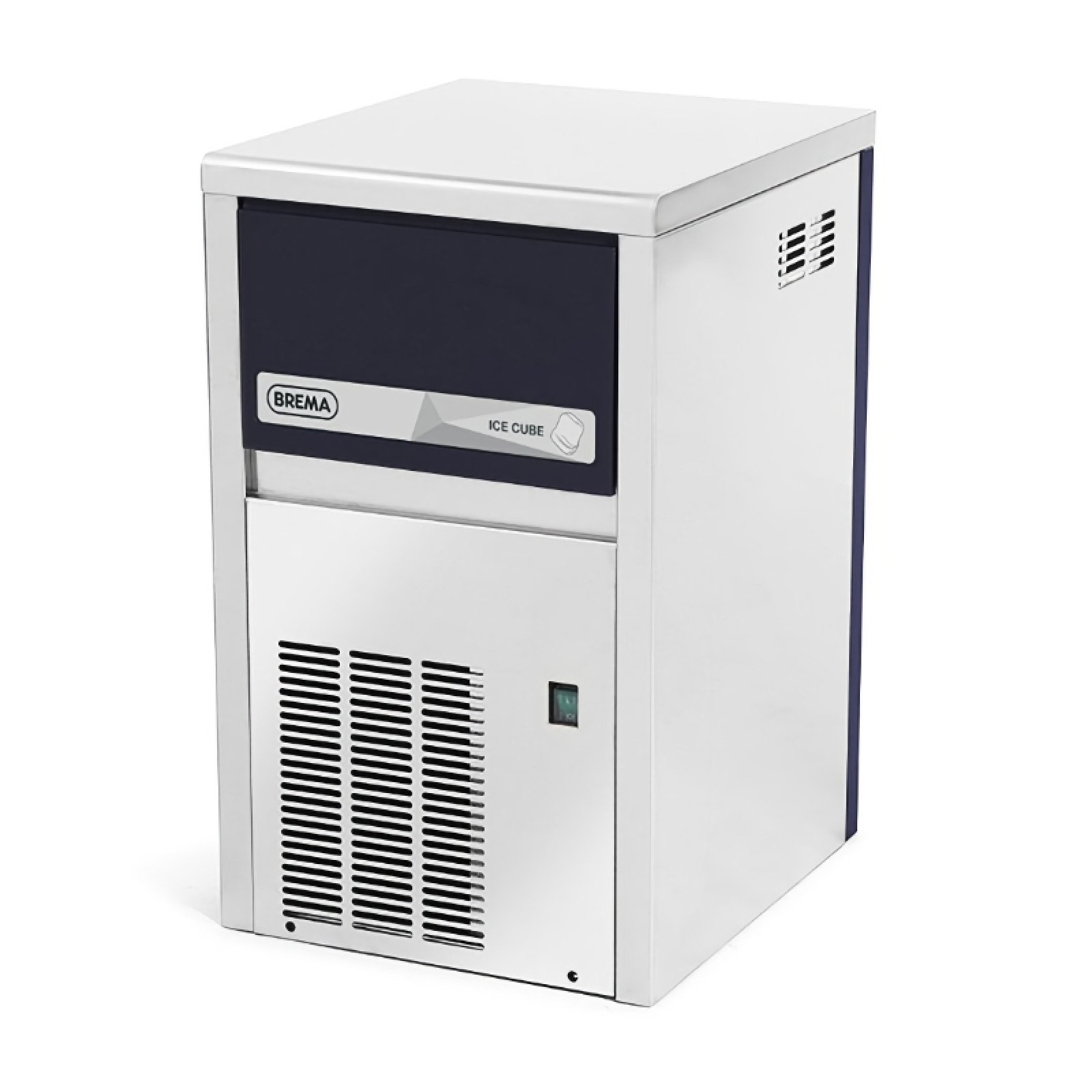

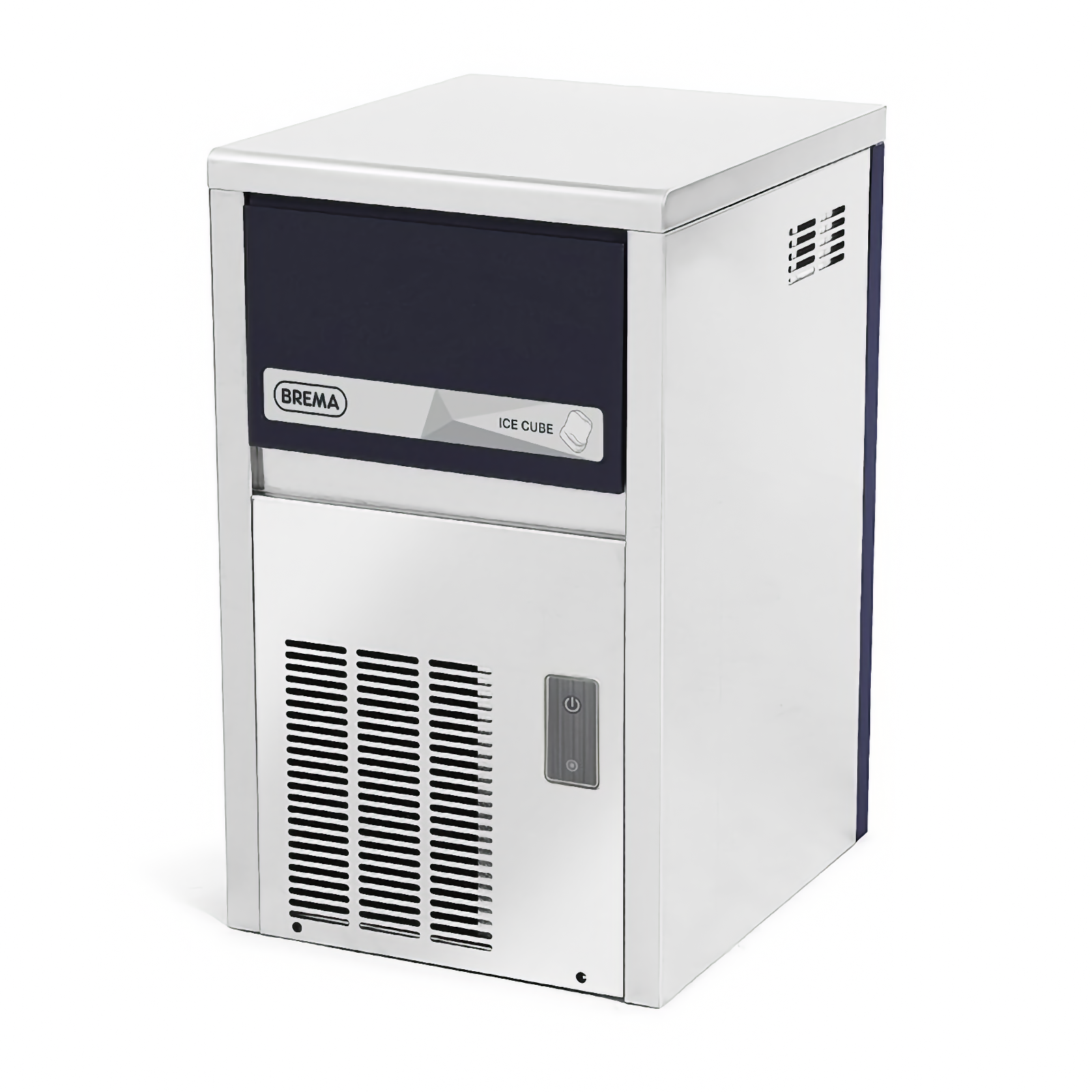

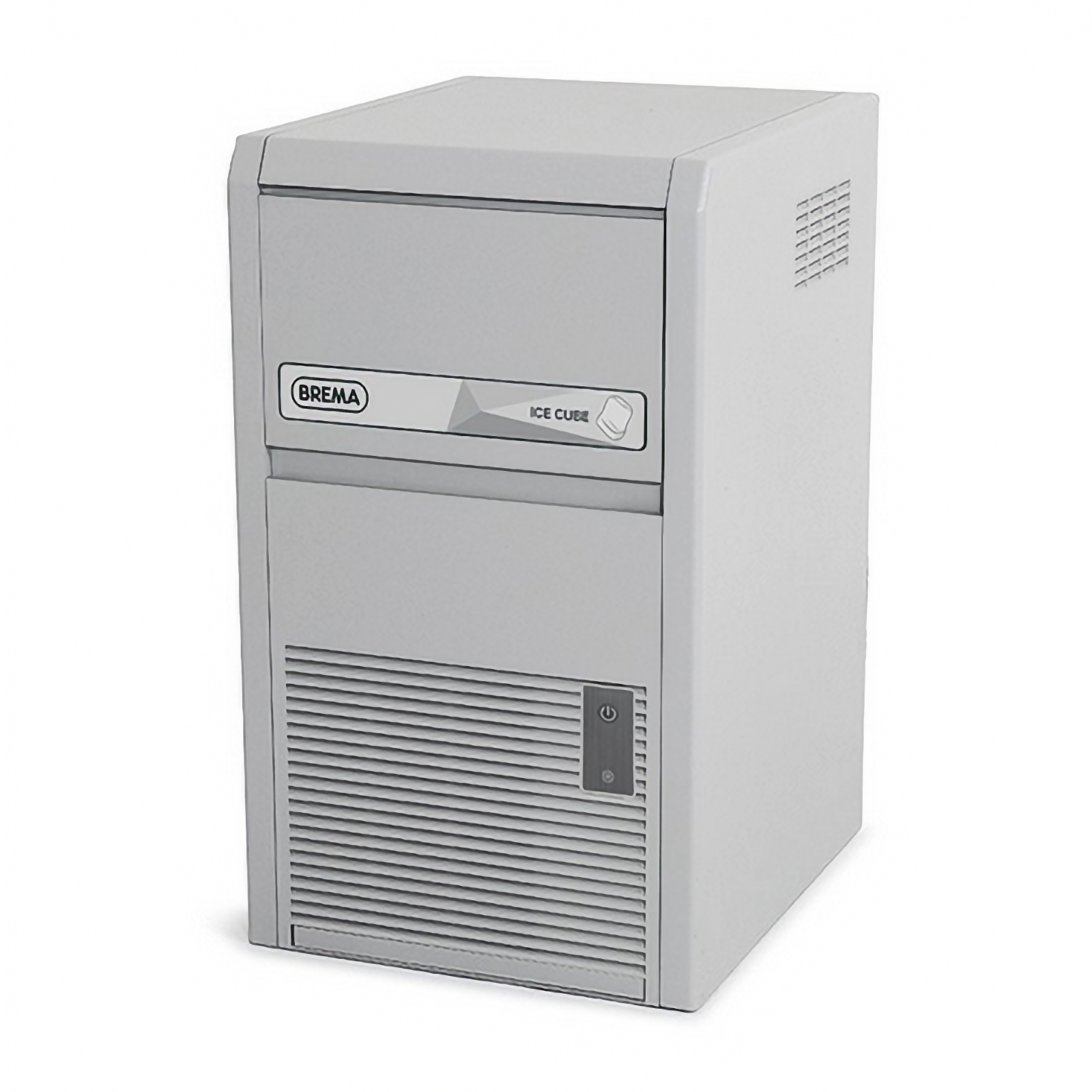

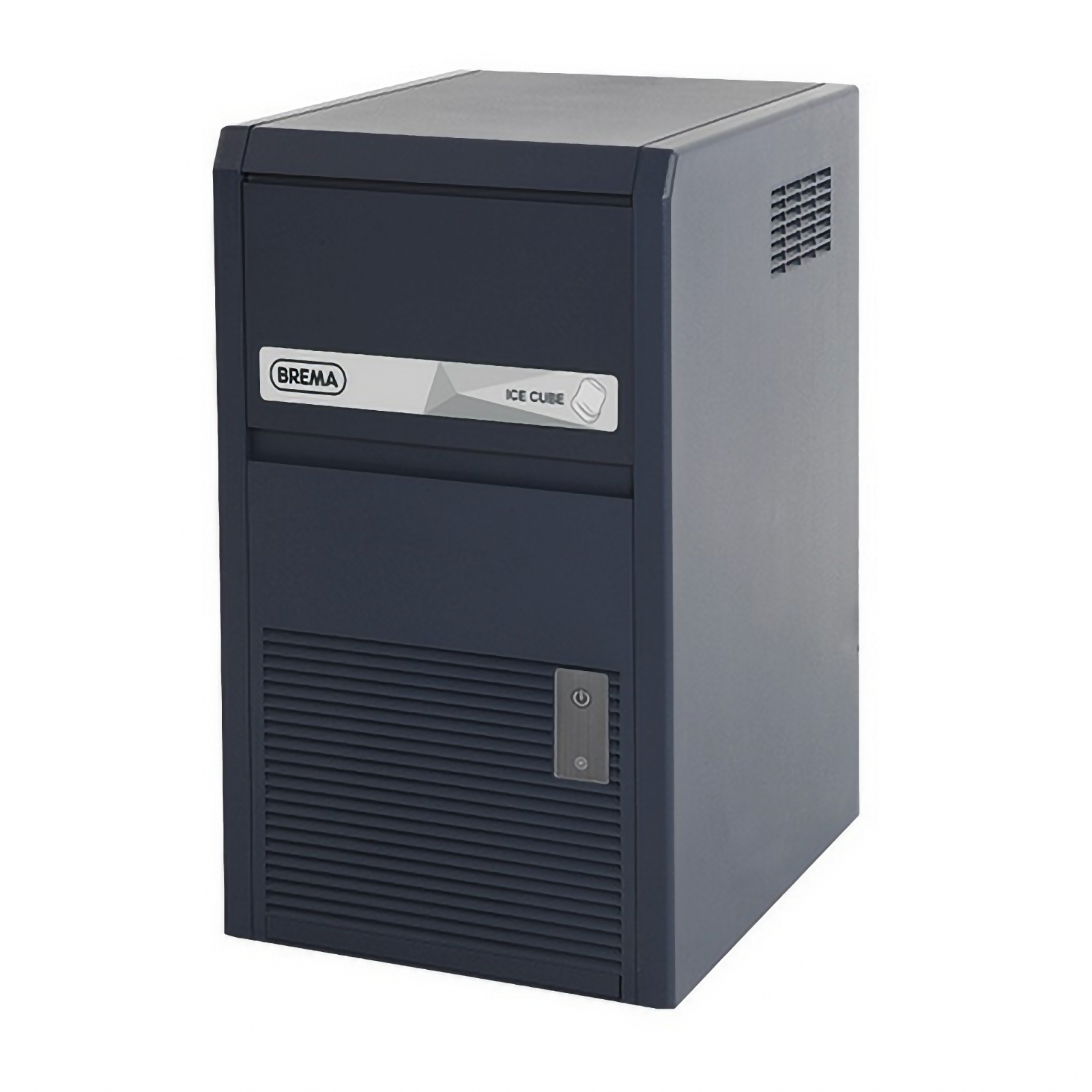

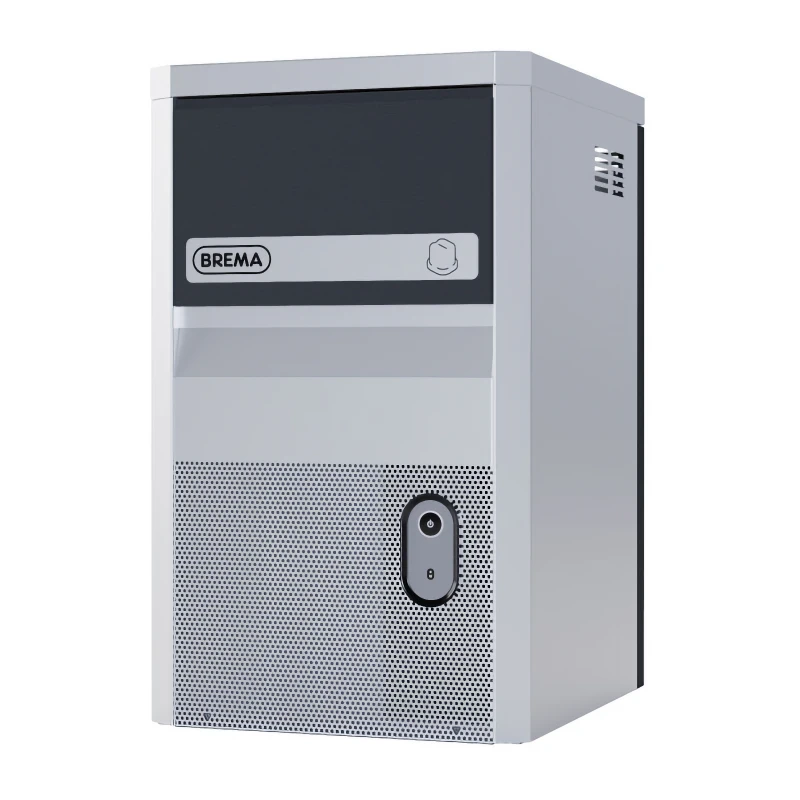

The stainless steel 18/8 Scotch Brite finish is designed for professional environments, while the blue or grey ABS parts help keep the machine practical for daily service use.
With dimensions of 355 x 404 x 590 mm, this model fits neatly under a counter while still providing a practical storage bin. It is suitable for venues where ice demand is regular but space is limited.
Up to 23 kg/24 h
Maximum daily production; standard output is 21 kg at 21°C air and 15°C water.
4 kg bin
Integrated storage bin for compact professional use.
Cube ice
Produces 13 g cube ice for drinks service.
R290
HC model with hydrocarbon refrigerant R290.
Air or water
Available with air or water condensation.
Undercounter
Compact format for bars, restaurants and hotels.
| Model | CB 184 HC 1.0 |
|---|---|
| Manufacturer | Brema Ice |
| Machine type | Self-contained ice maker with built-in bin |
| System | Automatic Washing system and sprayer ice-forming technology |
| Daily production, up to | 23 kg |
| Production 24 h at 21°C air / 15°C water | 21 kg |
| Storage capacity | 4 kg |
| Condensation | Air or water |
| Ice type | Cube ice, 13 g |
| Refrigerant | R290 |
| Average power consumption | 260 W |
| Fuse | 10 A |
| Water consumption | 4 l/kg with air condensation, 25 l/kg with water condensation |

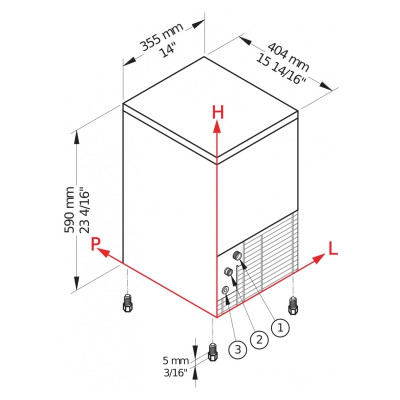

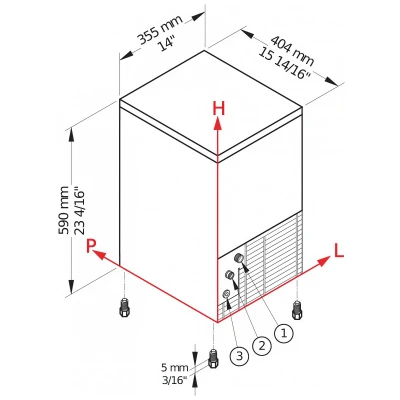

| Dimensions (W x D x H) | 355 x 404 x 590 mm |
| Packaging dimensions (W x D x H) | 415 x 445 x 780 mm |
| Feet | 5 mm |
| Weight net / gross | 27.5 kg / 34 kg |
| Finish | Stainless steel 18/8, Scotch Brite, blue or grey ABS |
| Machine position | Undercounter |
| Sector | Bars, clubs, hotels, restaurants |
| Electric connection | |
| Power in watts (W): | 260 W |
| Voltage in volts (V): | 230 V |
| Ice maker | |
| Ice type: | D - 13 g |
| Production per 24 hours: | Up to 23 kg |
| Production at standard conditions: | 21 kg (Air 21°C / Water 15°C) |
| Storage capacity: | 4 kg |
| Cooling system: | Air (A) or Water (W) |
| Refrigerant: | R290 |
| Water consumption: | Air cooled: 4 l/kg, Water cooled: 25 l/kg |
| Tropical class: | +43°C |
| Dimensions | |
| External Dimensions (width/depth/height): | 355x404x590 mm |
| Package dimensions (width/depth/height): | 415x445x780 mm |
| Weight | |
| Gross Weight: | 34 kg |
| Net Weight: | 27.5 kg |
