Pebble ice maker „Brema Ice“ TB 1405 HC

Add to Cart
  • Pebble ice maker „Brema Ice“ TB 1405 HC
  • Pebble ice maker „Brema Ice“ TB 1405 HC
  • Pebble ice maker „Brema Ice“ TB 1405 HC

Brema

Italian manufacturer • Since 1985

„Brema“ has made ice makers since 1985, with care and attention to every detail. The Italian manufacturer treats ice not as a mere consumable but as a food in its own right, one that deserves proper preparation.

MB „Restoranų įranga“ is the official distributor of „Brema Group“ S.p.A. ice makers in Lithuania.

Innovation

More than 20 patents

A dedicated team of engineers develops new solutions at the „Brema Group“ Innovation Center, with over 500 m² of test and development space at headquarters.

Ice types

The right ice for every need

Every type of „Brema“ ice is designed for a specific need, always with the same goal: quality, safety and a superior experience.

Worldwide

More than 120 countries

You will find „Brema“ ice makers in more than 120 countries. Since 2022 „Brema Group“ has been part of „Hoshizaki“, one of the world leaders in professional foodservice equipment.

Integrated Drain Pump

Brema Drain Pump is Brema's DP solution for ice makers that cannot be conveniently connected to a floor drain below the machine. The integrated pump moves drain water to a more practical discharge point and gives more freedom when planning a bar, kitchen or buffet area.

Brema presents it as its proprietary DP System technology and design: the pump is installed inside the machine, the standard water and drain connection points remain unchanged, and the ice maker's footprint does not increase.

Brema integrated drain pump inside an ice maker

Main advantages

①

INSTALLATION LOCATION FREEDOM

The machine can be repositioned within the same bar or kitchen even after commissioning when workflow requirements change. The integrated pump drains water within the technical limits without tying the machine to a lower floor drain.

②

HYGIENIC DRAINAGE

Less stagnant water in the drain pipe and lower risk of ice contamination in the storage bin.

③

REDUCED INSTALLATION TIME

The DP solution can be connected to floor, wall, pipe or siphon drains, making connection work easier for the installation technician.

④

PLUG & PLAY CONNECTION

When the drain point position or height complicates installation, Brema DP System works as a simple and effective Plug & Play solution.

⑤

POWER BLACKOUTS

The DP system collects meltwater and automatically disposes of it when power is restored, regardless of the machine ON/OFF switch position.

⑥

FEWER SCALE ISSUES

Instead of a float switch, Brema uses an air-pressure sensor separated from the hydraulic system, reducing mineral buildup and sensor-jamming risks.

What makes Brema DP System different?

In its official description, Brema presents the DP System as a reliable pressurized drainage solution for ice makers. Water level is controlled without a float switch, and the sensor is not directly exposed to mineral buildup in the drain water. This matters in professional kitchens and bars where equipment runs every day and unplanned downtime disrupts work.

Brema Drain Pump lift height and drainage distance diagram

Lift heightUp to 1.5 m
Active pumping distanceUp to 4 m
Distance with inclined pipeUp to 15 m
Drain typesFloor, wall, pipe or siphon drain
ConstructionIntegrated into the ice maker cabinet; no additional footprint
Connection pointsStandard water and drain connection points remain unchanged
ControlAutonomous electrical circuit and level / air-pressure sensor
Scale resistanceNo float switch; sensor separated from the hydraulic system
Power failureThe pump collects meltwater and automatically disposes of it when power is restored

When should you choose the DP version?

The DP version is worth choosing when the ice maker must stand under a counter, on an island, against a wall or in another position where traditional gravity drainage restricts installation. Brema also notes that such a machine is easier to reposition within the same bar or kitchen even after commissioning if the workflow layout changes.

Brema certificates

Official Brema Group documents related to this model’s manufacturer and, where applicable, its ice type.

Manufacturer management certificates

Documents are provided from the official Brema Group documentation area.

To view the content, you must log in.

Pebble ice maker „Brema Ice“ TB 1405 HC — 146 kg per day

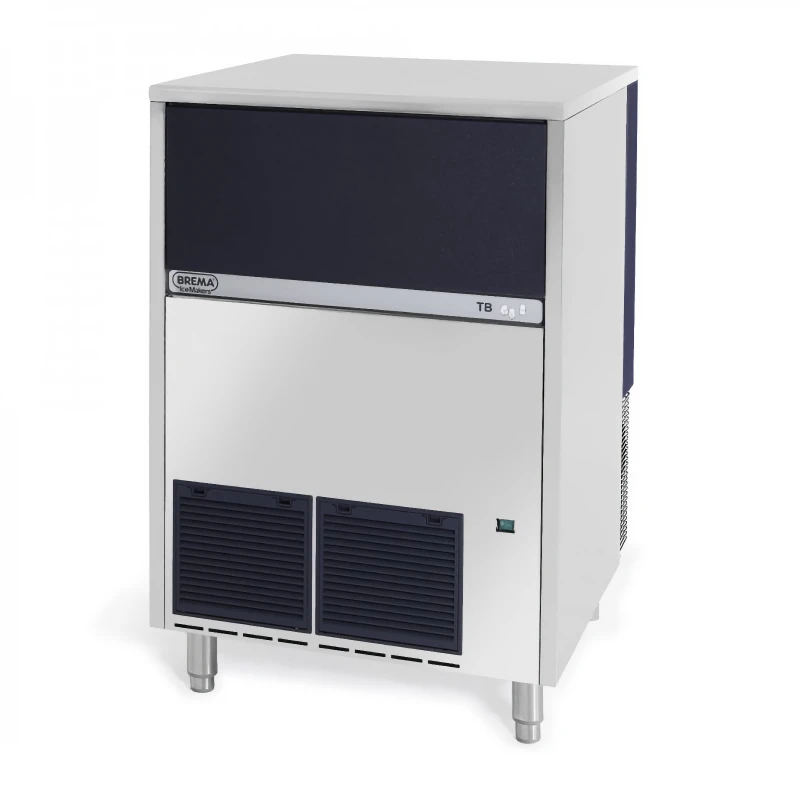

„Brema Ice“ TB 1405 HC — freestanding pebble ice maker

The „Brema Ice“ TB 1405 HC is a freestanding self-contained pebble ice maker („Ice Pebbles“) with a built-in storage bin. At 21 °C air and 15 °C water temperature it makes 146 kg of ice pebbles a day and keeps up to 50 kg in the bin.

The machine is available air- or water-cooled; you can also order the air-cooled version with a built-in drain pump (DP version). It uses the natural refrigerant R290 and has electromechanical controls. Choose the cooling, and the drain pump if you want one, in the ‘Version’ field.

„Brema Ice“ TB 1405 HC stainless steel pebble ice maker

Who it is for

The machine suits any bar or kitchen that needs up to 146 kg of ice pebbles a day for drinks and cocktails. How much it makes depends on the room and mains water temperature (manufacturer’s figures):

  • in a cool room (air 10 °C, water 7 °C) — up to 158 kg;
  • under standard conditions (air 21 °C, water 15 °C) — 146 kg;
  • in a hot room (air 32 °C, water 21 °C) — 130 kg.
„Brema“ ice pebbles („Ice Pebbles“)
01

146 kg a day

The machine tops up the bin itself: as soon as you take ice out, production restarts.

02

50 kg bin

Easy to scoop from: the door slides up into the cabinet, and ice melts more slowly in the insulated bin.

03

8 × 16 × 7 mm pebbles

Compressed ice, 91 % dry.

04

1 l of water — 1 kg of ice

The air-cooled version turns all its water into ice.

05

Removable air filter

The condenser air filter is easy to take out and clean.

06

Drain pump

With the DP version, the drain can sit higher than the machine.

Ice pebbles („Ice Pebbles“)

Cocktails stay cold for longer: compressed ice pebbles cool quickly and effectively and are easy to store, handle and portion.

They are particularly suited to muddled cocktails.

„Brema“ ice pebbles

Build and controls

The machine is easy to keep clean: the internal surfaces are rounded, the water basin is dust-proof and the condenser air filter is removable. The cabinet and evaporator are AISI 304 stainless steel (the cabinet with a „Scotch-Brite“ finish), and the bin is insulated with HCFC-free material.

You switch the machine on with an ON / OFF rocker switch and it does the rest: it tops up its water automatically, and a thermostat stops production when the ice in the bin reaches its probe.

„Brema“ GB and TB series details: steel cabinet, air filter, evaporator, water basin and door

Which model to choose

  • TB 1405 HC — our largest pebble ice maker: 146 kg a day, a 50 kg bin, also available with a drain pump.
  • For undercounter installation — the TB 1404 HC (on request): 142 kg a day, 40 kg bin, 961.5–1 001.5 mm high on its feet; the lower TB 852 HC and TB 853 HC make 90 kg a day each (800–840 and 910–950 mm on their feet).
  • When 57 kg a day is enough — the TB 551 HC (450 × 620 × 680 mm).
ModelTB 551 HCTB 1405 HC
this model
Ice typepebbles 8 × 16 × 7 mmpebbles 8 × 16 × 7 mm
Production per 24 h (air 21 °C, water 15 °C)57 kg146 kg
Maximum production per 24 h66 kg158 kg
Production per 24 h (air 32 °C, water 21 °C)46 kg130 kg
Bin capacity10 kg50 kg
Dimensions without feet (W × D × H), mm450 × 620 × 680738 × 690 × 1 020
Feet5 mm110–150 mm
Installation typeundercounterfreestanding
Average power consumption410 W720 W
Water consumption, water-cooled5 l/kg9 l/kg
Available versionsair- or water-cooledair- or water-cooled, drain pump

Installation and connections

  • Power: 220–240 V, 50 Hz, 10 A fuse. Connect the machine to an earthed supply through an all-pole circuit breaker with fuses and a residual current device (RCD); the supply must be able to handle the maximum power shown on the rating plate.
  • Water: connects to the cold drinking-water mains — ordinary mains water rather than reverse-osmosis or deionised water, 1–6 bar pressure, 3/4″ connection. A shut-off tap is needed. If the water contains sand or other solid particles, fit a mechanical filter.
  • Drain: gravity drain into an outlet below the machine — a hose with a 22 mm internal diameter along its whole length and a fall of at least 15 %, preferably into an open trap. If the drain is higher than the machine, choose the drain pump version.
  • Location: a clean room at 10–43 °C (the machine performs best with air at 10–35 °C and water at 3–25 °C), away from heat sources and direct sunlight, with at least 5 cm of clearance all round.
  • Dimensions: 738 × 690 × 1 020 mm (W × D × H, excluding the adjustable 110–150 mm feet; 1 130–1 170 mm high on the feet); packed — 780 × 735 × 1 185 mm, 105 kg.

A qualified technician connects the machine to the water and electricity supply.

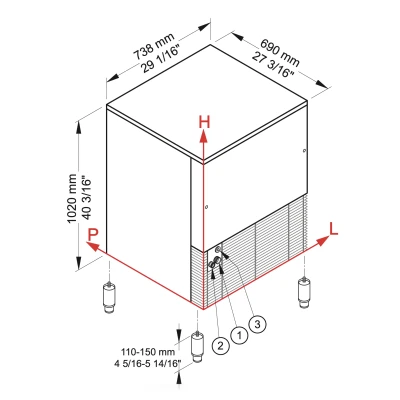

„Brema Ice“ TB 1405 HC dimensions and connection points

Running costs and servicing

Consumption. Electricity — 13 kWh per 100 kg of ice (measured at 32 °C ambient). Water — 1 l/kg of ice when air-cooled (all the water is turned into ice) and 9 l/kg when water-cooled, nine times as much; at 146 kg a day that is about 146 l and 1 314 l. Daily figures are our calculation from Brema’s data.

  • Service intervals: cleaning and sanitising — monthly; on air-cooled versions, the condenser air filter — monthly; water inlet filter and the condenser — every two months (the condenser by an authorised service centre).
  • For particularly hard water we offer the „Everpure“ 4FC-S cartridge with a QL3 head.

What’s in the box

Ice maker, feet, water supply hose with seals, user manual and cleaning and sanitising manual.

Technical specifications

ModelTB 1405 HC
ManufacturerBrema Ice
Machine typePebble ice maker with built-in bin
ControlsElectromechanical, ON / OFF rocker switch
Ice-making systemPebble system
Production per 24 h (air 21 °C, water 15 °C)146 kg
Maximum production per 24 h (air 10 °C, water 7 °C)158 kg
Production per 24 h (air 32 °C, water 21 °C)130 kg
Bin capacityUp to 50 kg
Ice typeIce pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Cooling systemAir (A) or water (W)
Drain pumpAir-cooled DP version; lifts drain water up to 1.5 m and pumps it up to 4 m away (up to 15 m through a downward-sloping pipe)
RefrigerantR290
Ambient temperature10–43 °C
Water temperature3–32 °C
Water pressure1–6 bar
Power supply220–240 V, 50 Hz
Average power consumption720 W (at 43 °C ambient)
Electricity consumption13 kWh / 100 kg of ice (at 32 °C ambient)
Fuse10 A
Water consumption1 l/kg air-cooled, 9 l/kg water-cooled
Water inlet3/4″
Drain outletØ 24 mm (hose internal diameter 22 mm)
Dimensions (W × D × H)738 × 690 × 1 020 mm (without the adjustable 110–150 mm feet)
Packed dimensions (W × D × H)780 × 735 × 1 185 mm
Net / gross weight94 kg / 105 kg
CabinetAISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Noise levelBelow 70 dB(A)
Installation typeFreestanding

Drain pump (DP version)

You can place the machine well away from the drain: on the DP version the „Brema DP System“ pump, built into the cabinet within the machine’s own footprint, lifts drain water up to 1.5 m and pumps it up to 4 m away, or up to 15 m through a downward-sloping pipe. An air-pressure sensor rather than a float monitors the water level in the pump, which protects the pump from scale deposits and keeps water from stagnating in the system.

Electric connection
Power in watts (W): 720 W (average, at 43 °C ambient)
Voltage in volts (V): 220–240 V, 50 Hz
Ice maker
Machine type: Pebble ice maker with built-in bin
Controls: Electromechanical, ON / OFF rocker switch
Ice type: Ice pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Ice-making system: Pebble system
Production per 24 hours: Up to 158 kg (air 10 °C, water 7 °C)
Production at standard conditions: 146 kg (air 21 °C, water 15 °C)
Production in a hot room: 130 kg (air 32 °C, water 21 °C)
Storage capacity: Up to 50 kg
Cooling system: Air (A) or water (W)
Refrigerant: R290
Water consumption: 1 l/kg air-cooled, 9 l/kg water-cooled
Water inlet: 3/4″
Water outlet: Ø 24 mm (hose internal diameter 22 mm)
Ambient temperature: 10–43 °C
Water pressure: 1–6 bar
Water temperature: 3–32 °C
Drain pump: Air-cooled DP version; lifts drain water up to 1.5 m and pumps it up to 4 m away (up to 15 m through a downward-sloping pipe)
Fuse: 10 A
Cabinet: AISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Installation type: Freestanding
Consumption
Electricity consumption: 13 kWh / 100 kg of ice (at 32 °C ambient)
Dimensions
External Dimensions (width/depth/height): 738 × 690 × 1 020 mm (without the adjustable 110–150 mm feet)
Package dimensions (width/depth/height): 780 × 735 × 1 185 mm
Weight
Gross Weight: 105 kg
Net Weight: 94 kg
Manufacturer product page: Open manufacturer page
