Pebble ice maker „Brema Ice“ TB 551 HC

Add to Cart
  • Pebble ice maker „Brema Ice“ TB 551 HC
  • Pebble ice maker „Brema Ice“ TB 551 HC
  • Pebble ice maker „Brema Ice“ TB 551 HC

Brema

Italian manufacturer • Since 1985

„Brema“ has made ice makers since 1985, with care and attention to every detail. The Italian manufacturer treats ice not as a mere consumable but as a food in its own right, one that deserves proper preparation.

MB „Restoranų įranga“ is the official distributor of „Brema Group“ S.p.A. ice makers in Lithuania.

Innovation

More than 20 patents

A dedicated team of engineers develops new solutions at the „Brema Group“ Innovation Center, with over 500 m² of test and development space at headquarters.

Ice types

The right ice for every need

Every type of „Brema“ ice is designed for a specific need, always with the same goal: quality, safety and a superior experience.

Worldwide

More than 120 countries

You will find „Brema“ ice makers in more than 120 countries. Since 2022 „Brema Group“ has been part of „Hoshizaki“, one of the world leaders in professional foodservice equipment.

Brema certificates

Official Brema Group documents related to this model’s manufacturer and, where applicable, its ice type.

Manufacturer management certificates

Documents are provided from the official Brema Group documentation area.

To view the content, you must log in.

Pebble ice maker „Brema Ice“ TB 551 HC — 57 kg per day

„Brema Ice“ TB 551 HC — pebble ice maker for undercounter installation

The „Brema Ice“ TB 551 HC is a compact self-contained pebble ice maker („Ice Pebbles“) with a built-in storage bin, made to fit under a counter. At 21 °C air and 15 °C water temperature it makes 57 kg of ice pebbles a day and keeps up to 10 kg in the bin.

The machine is available air- or water-cooled. It uses the natural refrigerant R290 and has electromechanical controls. Choose the cooling in the ‘Version’ field.

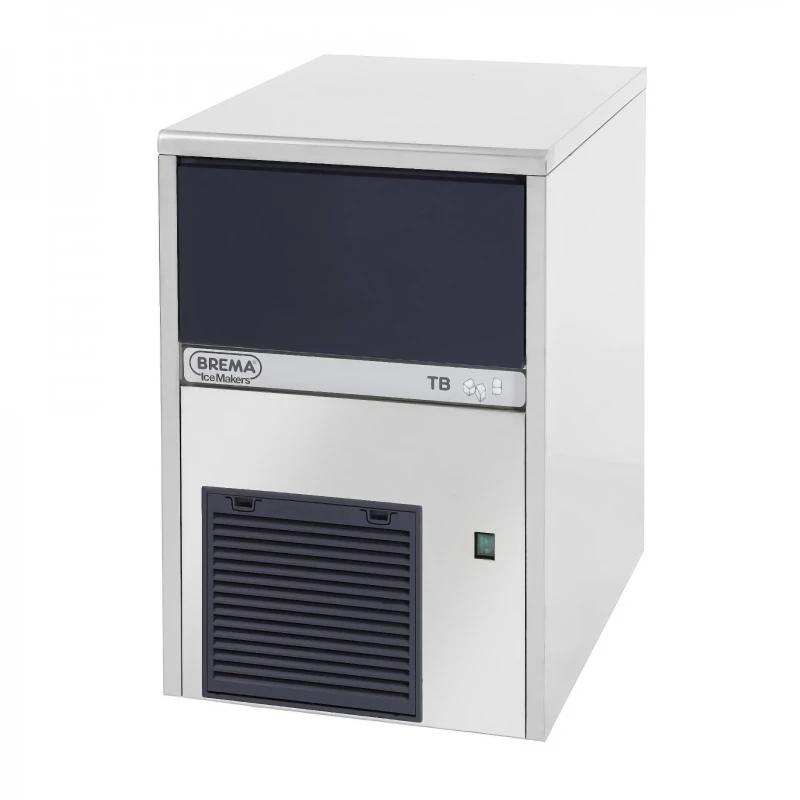

„Brema Ice“ TB 551 HC stainless steel pebble ice maker

Who it is for

The machine suits any bar or kitchen that needs up to 57 kg of ice pebbles a day for drinks and cocktails. How much it makes depends on the room and mains water temperature (manufacturer’s figures):

  • in a cool room (air 10 °C, water 7 °C) — up to 66 kg;
  • under standard conditions (air 21 °C, water 15 °C) — 57 kg;
  • in a hot room (air 32 °C, water 21 °C) — 46 kg.
„Brema“ ice pebbles („Ice Pebbles“)
01

57 kg a day

The machine tops up the bin itself: as soon as you take ice out, production restarts.

02

10 kg bin

Easy to scoop from: the door slides up into the cabinet, and ice melts more slowly in the insulated bin.

03

8 × 16 × 7 mm pebbles

Compressed ice, 91 % dry.

04

1 l of water — 1 kg of ice

The air-cooled version turns all its water into ice.

05

Removable air filter

The condenser air filter is easy to take out and clean.

06

AISI 304 steel

Stainless steel cabinet and evaporator.

Ice pebbles („Ice Pebbles“)

Cocktails stay cold for longer: compressed ice pebbles cool quickly and effectively and are easy to store, handle and portion.

They are particularly suited to muddled cocktails.

„Brema“ ice pebbles

Build and controls

The machine is easy to keep clean: the internal surfaces are rounded, the water basin is dust-proof and the condenser air filter is removable. The cabinet and evaporator are AISI 304 stainless steel (the cabinet with a „Scotch-Brite“ finish), and the bin is insulated with HCFC-free material.

You switch the machine on with an ON / OFF rocker switch and it does the rest: it tops up its water automatically, and a thermostat stops production when the ice in the bin reaches its probe.

„Brema“ GB and TB series details: steel cabinet, air filter, evaporator, water basin and door

Which model to choose

  • TB 551 HC — ice pebbles under the counter: 57 kg a day, a 10 kg bin, 450 × 620 × 680 mm.
  • For more storage under the counter — the TB 852 HC and TB 853 HC (on request): 90 kg a day each, with 20 and 30 kg bins respectively (800–840 and 910–950 mm high on their feet).
  • For high demand — the freestanding TB 1405 HC: 146 kg a day, 50 kg bin, also available with a drain pump.
  • For ice flakes — the same-sized GB 601 HC (67 kg a day, 9 kg bin).
ModelTB 551 HC
this model
TB 1405 HCGB 601 HC
Ice typepebbles 8 × 16 × 7 mmpebbles 8 × 16 × 7 mmgranular (flakes)
Production per 24 h (air 21 °C, water 15 °C)57 kg146 kg67 kg
Maximum production per 24 h66 kg158 kg73 kg
Production per 24 h (air 32 °C, water 21 °C)46 kg130 kg53 kg
Bin capacity10 kg50 kg9 kg
Dimensions without feet (W × D × H), mm450 × 620 × 680738 × 690 × 1 020450 × 620 × 680
Feet5 mm110–150 mm5 mm
Installation typeundercounterfreestandingundercounter
Average power consumption410 W720 W400 W
Water consumption, water-cooled5 l/kg9 l/kg5 l/kg
Available versionsair- or water-cooledair- or water-cooled, drain pumpair- or water-cooled, drain pump

Installation and connections

  • Power: 220–240 V, 50 Hz, 10 A fuse. Connect the machine to an earthed supply through an all-pole circuit breaker with fuses and a residual current device (RCD); the supply must be able to handle the maximum power shown on the rating plate.
  • Water: connects to the cold drinking-water mains — ordinary mains water rather than reverse-osmosis or deionised water, 1–6 bar pressure, 3/4″ connection. A shut-off tap is needed. If the water contains sand or other solid particles, fit a mechanical filter.
  • Drain: gravity drain into an outlet below the machine — a hose with a 22 mm internal diameter along its whole length and a fall of at least 15 %, preferably into an open trap.
  • Location: a clean room at 10–43 °C (the machine performs best with air at 10–35 °C and water at 3–25 °C), away from heat sources and direct sunlight, with at least 5 cm of clearance all round.
  • Dimensions: 450 × 620 × 680 mm (W × D × H, excluding the 5 mm feet); packed — 505 × 675 × 850 mm, 64 kg.

A qualified technician connects the machine to the water and electricity supply.

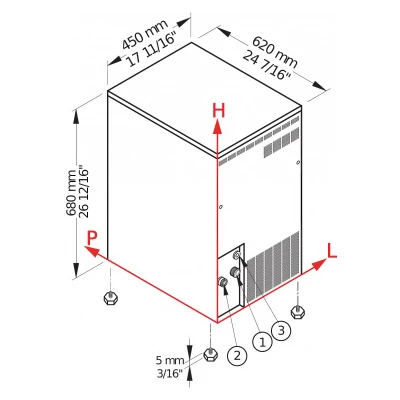

„Brema Ice“ TB 551 HC dimensions and connection points

Running costs and servicing

Consumption. Electricity — 20 kWh per 100 kg of ice (measured at 32 °C ambient). Water — 1 l/kg of ice when air-cooled (all the water is turned into ice) and 5 l/kg when water-cooled, five times as much; at 57 kg a day that is about 57 l and 285 l. Daily figures are our calculation from Brema’s data.

  • Service intervals: cleaning and sanitising — monthly; on air-cooled versions, the condenser air filter — monthly; water inlet filter and the condenser — every two months (the condenser by an authorised service centre).
  • For particularly hard water we offer the „Everpure“ 4FC-S cartridge with a QL3 head.

What’s in the box

Ice maker, feet, water supply hose with seals, user manual and cleaning and sanitising manual.

Technical specifications

ModelTB 551 HC
ManufacturerBrema Ice
Machine typePebble ice maker with built-in bin
ControlsElectromechanical, ON / OFF rocker switch
Ice-making systemPebble system
Production per 24 h (air 21 °C, water 15 °C)57 kg
Maximum production per 24 h (air 10 °C, water 7 °C)66 kg
Production per 24 h (air 32 °C, water 21 °C)46 kg
Bin capacityUp to 10 kg
Ice typeIce pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Cooling systemAir (A) or water (W)
RefrigerantR290
Ambient temperature10–43 °C
Water temperature3–32 °C
Water pressure1–6 bar
Power supply220–240 V, 50 Hz
Average power consumption410 W (at 43 °C ambient)
Electricity consumption20 kWh / 100 kg of ice (at 32 °C ambient)
Fuse10 A
Water consumption1 l/kg air-cooled, 5 l/kg water-cooled
Water inlet3/4″
Drain outletØ 24 mm (hose internal diameter 22 mm)
Dimensions (W × D × H)450 × 620 × 680 mm (without the 5 mm feet)
Packed dimensions (W × D × H)505 × 675 × 850 mm
Net / gross weight56 kg / 64 kg
CabinetAISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Noise levelBelow 70 dB(A)
Installation typeUndercounter
Electric connection
Power in watts (W): 410 W (average, at 43 °C ambient)
Voltage in volts (V): 220–240 V, 50 Hz
Ice maker
Machine type: Pebble ice maker with built-in bin
Controls: Electromechanical, ON / OFF rocker switch
Ice type: Ice pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Ice-making system: Pebble system
Production per 24 hours: Up to 66 kg (air 10 °C, water 7 °C)
Production at standard conditions: 57 kg (air 21 °C, water 15 °C)
Production in a hot room: 46 kg (air 32 °C, water 21 °C)
Storage capacity: Up to 10 kg
Cooling system: Air (A) or water (W)
Refrigerant: R290
Water consumption: 1 l/kg air-cooled, 5 l/kg water-cooled
Water inlet: 3/4″
Water outlet: Ø 24 mm (hose internal diameter 22 mm)
Ambient temperature: 10–43 °C
Water pressure: 1–6 bar
Water temperature: 3–32 °C
Fuse: 10 A
Cabinet: AISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Installation type: Undercounter
Consumption
Electricity consumption: 20 kWh / 100 kg of ice (at 32 °C ambient)
Dimensions
External Dimensions (width/depth/height): 450 × 620 × 680 mm (without the 5 mm feet)
Package dimensions (width/depth/height): 505 × 675 × 850 mm
Weight
Gross Weight: 64 kg
Net Weight: 56 kg
