Potato peeler „Fama Industrie“ 5 kg with high stand

Name: Potato peeler „Fama Industrie“ 5 kg with high stand
Brand: Fama Industrie
SKU: FP109/FP108
Price: 1488.69 EUR
Availability: BackOrder

Add to Cart

Technical data sheet: „Fama Industrie“ 5 kg potato peelers Download PDF → Official manufacturer data sheet: features, power, output, dimensions, weights and codes of all four 5 kg versions (benchtop, on legs, with stand and with high stand). In Italian and English.

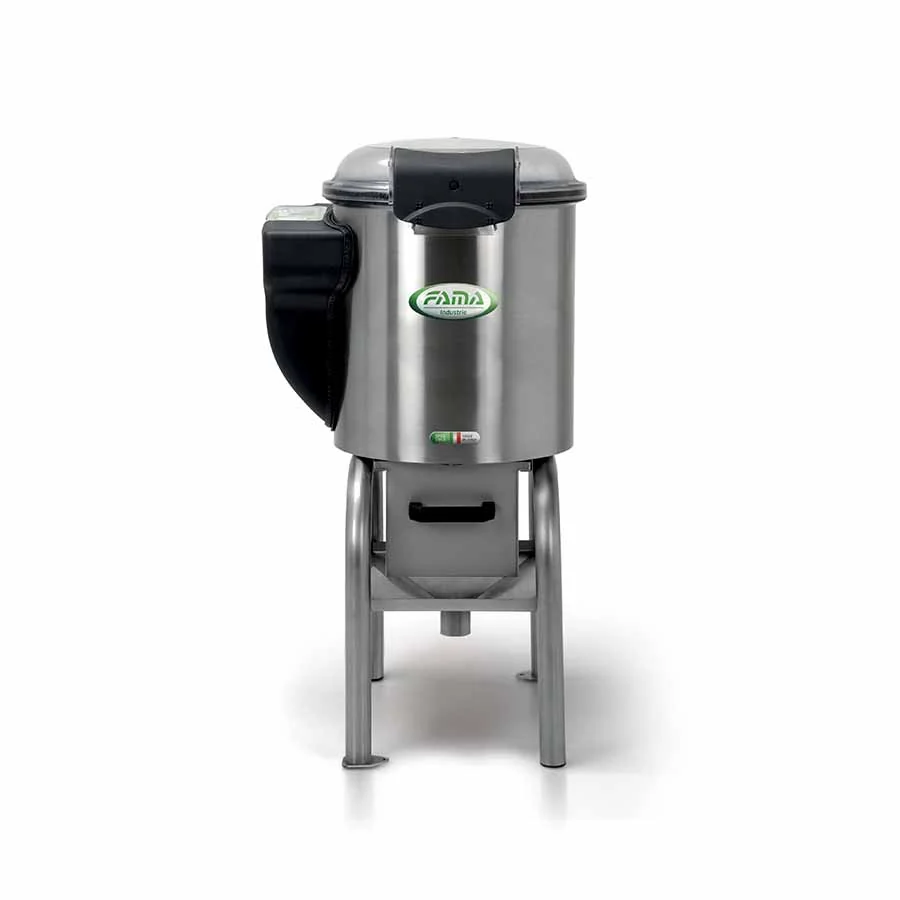

Potato peeler „Fama Industrie“ 5 kg with high stand

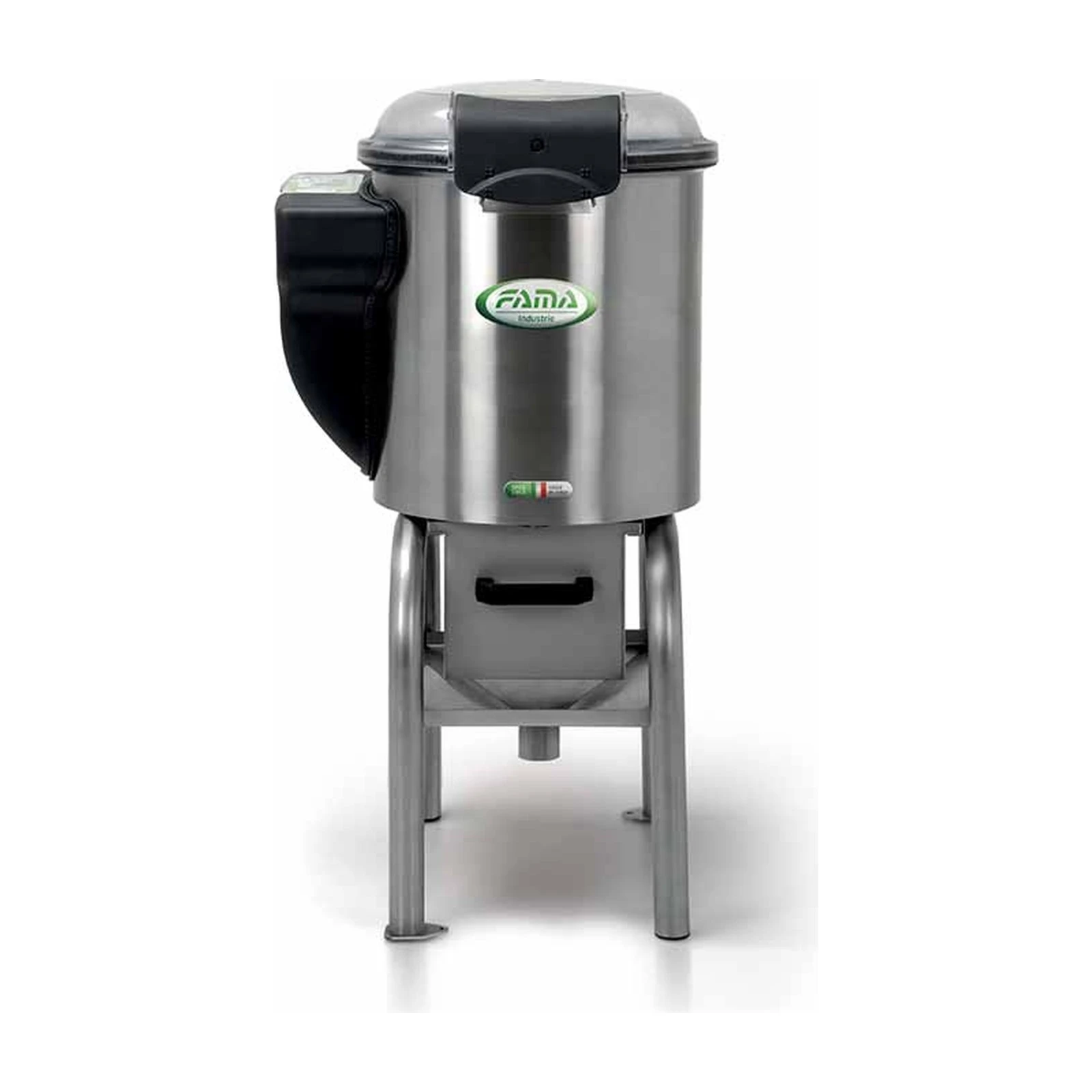

5 kg potato peeler on a high stand

This machine peels up to 150 kg of potatoes an hour, taking 60–90 seconds for a 5 kg load. That is plenty for cafés, pizzerias, pubs and small restaurant kitchens.

The high stand raises the machine to an overall height of 970 mm. Built into the stand is a pull-out waste filter drawer that catches the peelings before they reach the drain.

The body is made of AISI 304 stainless steel. A fan-cooled, Italian-made 0.37 kW asynchronous motor drives the disc through a belt.

Potato peeler „Fama Industrie“ 5 kg with high stand

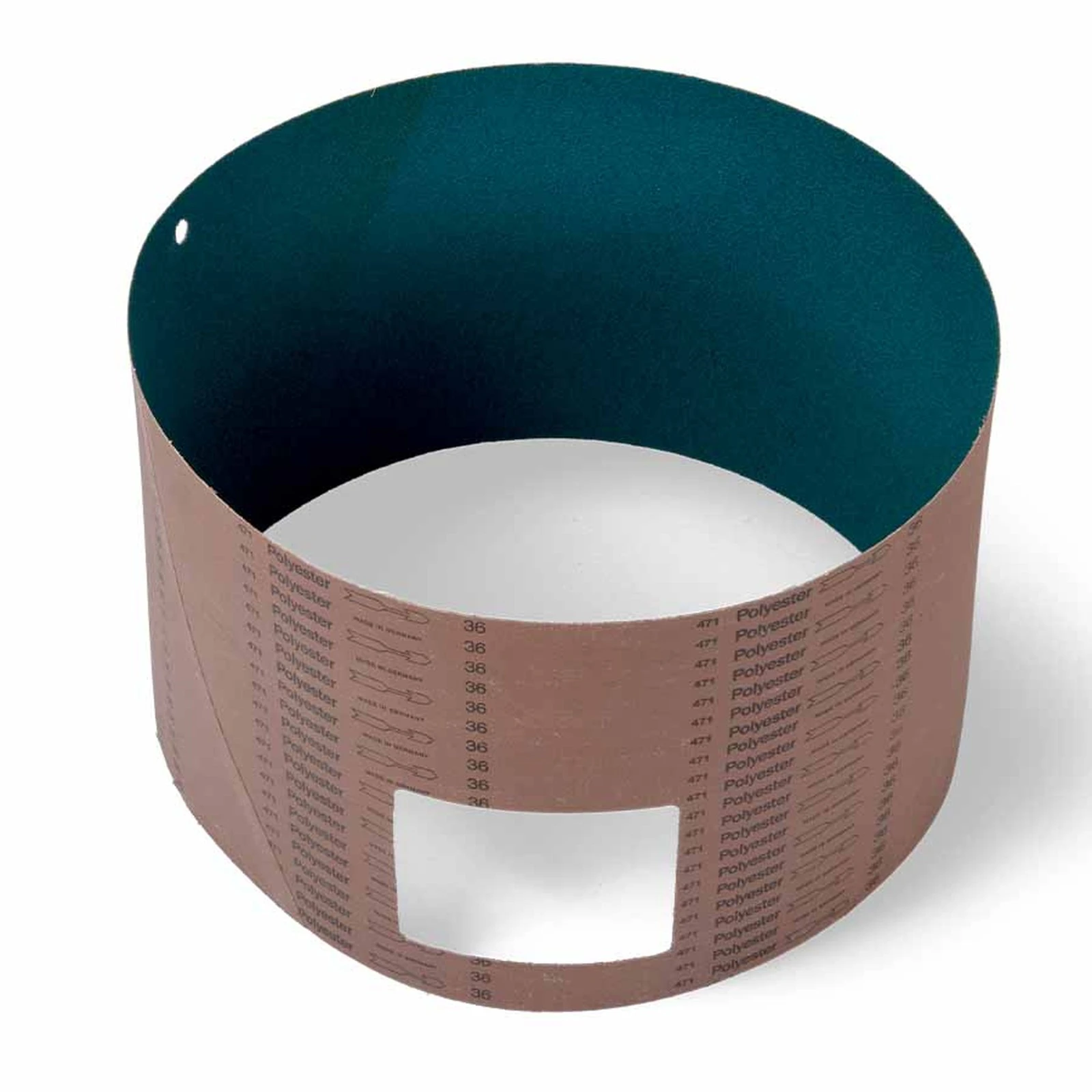

Abrasive disc and abrasive belt

The potatoes are peeled by the spinning abrasive disc and by the drum walls, which are lined with an abrasive belt. The disc turns at 270 rpm, while water fed through a solenoid valve rinses the peelings away.

The abrasive belt can be replaced without tools, and the abrasive parts are designed to make the machine easy to use, clean and maintain. Look for replacement abrasive discs and abrasive belts in the ‘Potato peeler spare parts’ category.

Abrasive belt of a „Fama Industrie“ potato peeler

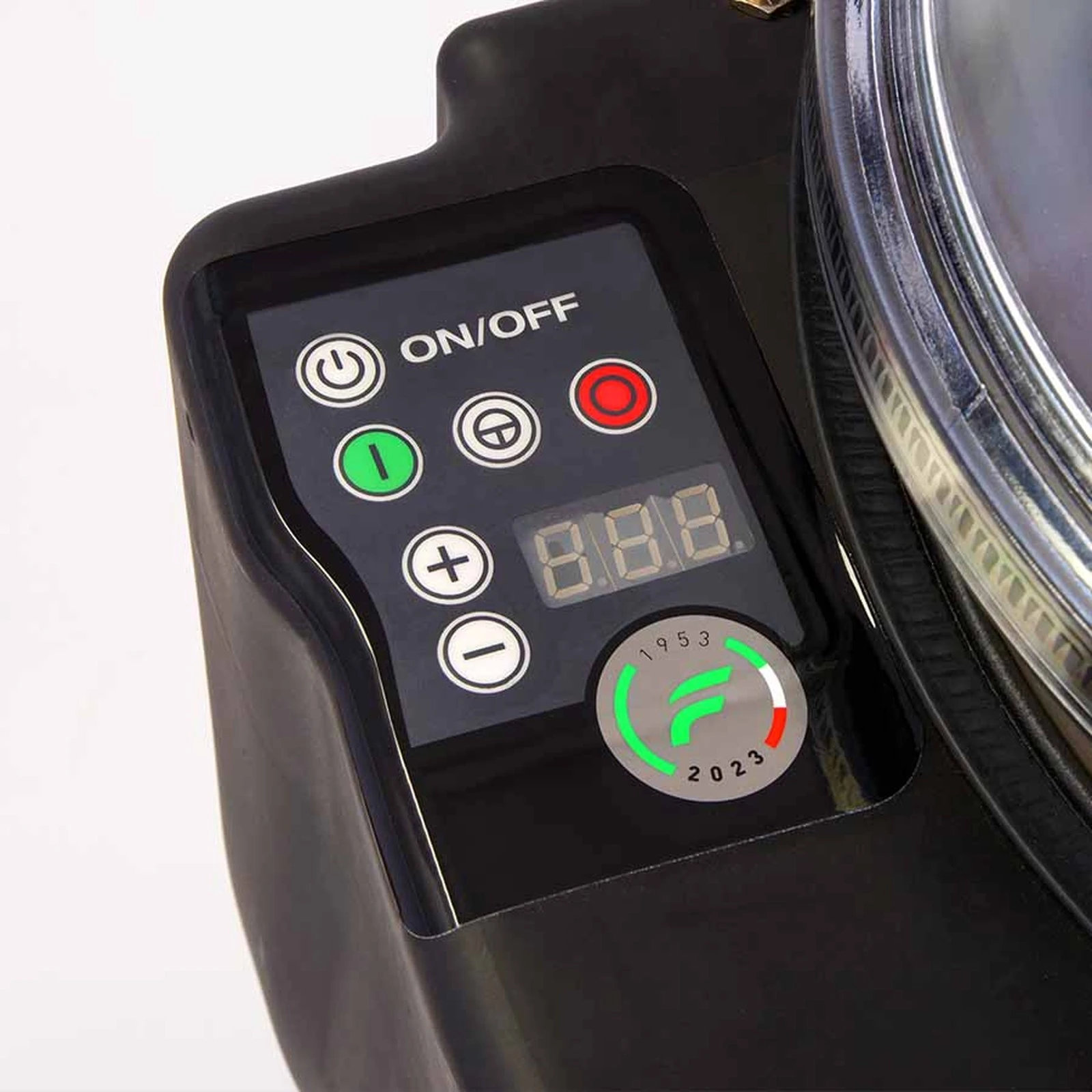

Digital controls and safety

The control panel has a multifunction digital timer: set the peeling time with the + and − buttons and read it on the display. The electrics are housed in a separate insulated plastic box.

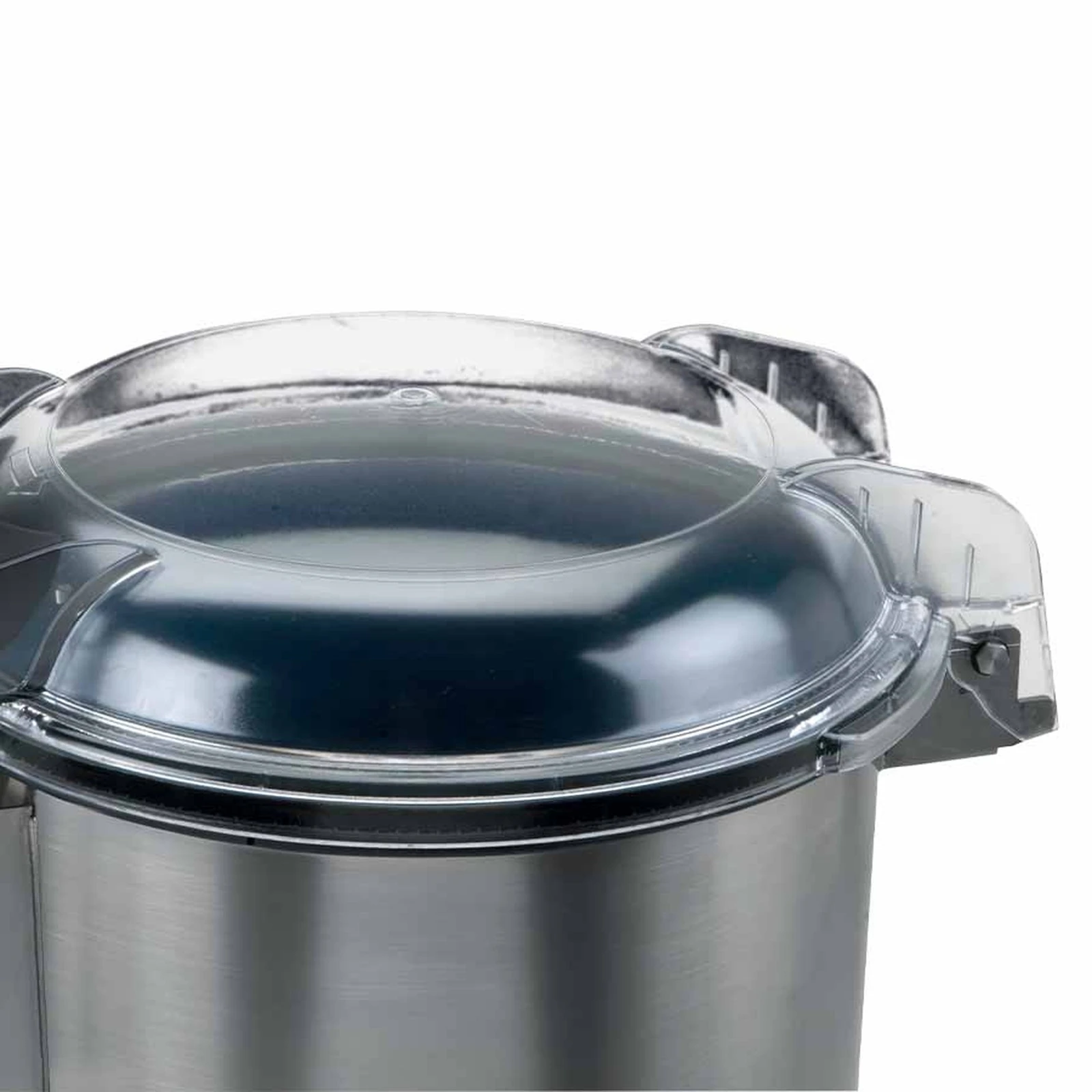

The lid is unbreakable clear plastic, so you can watch the peeling without opening the machine. A safety microswitch stops the machine when the lid is opened.

Digital control panel with timer on a „Fama Industrie“ potato peeler

Installation

Connect the water supply with a 3/4″ flexible hose; the water temperature should be 5–20 °C. Waste water can go to a wall drain (Ø 50 mm side outlet) or a floor drain (Ø 50 mm bottom outlet). The machine is built for a three-phase 400 V or a single-phase 230 V supply — select yours under ‘Electrical voltage’.

What’s included

The machine comes with an abrasive disc, an abrasive belt, a clear plastic lid and a waste filter drawer. A stainless steel lid is available at extra cost — tick it under ‘Options’.

We sell four versions of the 5 kg „Fama Industrie“ peeler: benchtop, on legs, with stand and with high stand. They all peel the same way; what differs is the height, the weight, the drain outlets and whether there is a waste filter drawer.

Technical specifications

Manufacturer	„Fama Industrie“
Manufacturer code	FP109 (400 V), FP108 (230 V)
Version	with high stand and waste filter drawer
Maximum load	5 kg
Output	up to 150 kg/h
Peeling cycle	60–90 s
Disc speed	270 rpm
Power supply	400 V three-phase or 230 V single-phase, 50 Hz
Motor power	0.37 kW (0.5 HP)
Motor	asynchronous, fan-cooled, made in Italy
Drive	belt
Abrasive surfaces	abrasive disc and abrasive belt (belt replaceable without tools)
Control panel	digital, with multifunction timer
Lid	unbreakable clear plastic (stainless steel optional extra)
Safety	microswitch on the lid
Waste filter drawer	yes
Drain outlet	Ø 50 mm side outlet (wall drain) or Ø 50 mm bottom outlet (floor drain)
Water connection	3/4″ flexible hose, with solenoid valve
Water temperature	5–20 °C
Body	AISI 304 stainless steel
Dimensions (W × D × H)	530 × 530 × 970 mm
Net weight	38.5 kg
Gross weight	46 kg
Compliance	CE
Country of origin	Italy

Potato peeler
Manufacturer	„Fama Industrie“
Manufacturer code	FP109 (400 V), FP108 (230 V)
Version	with high stand and waste filter drawer
Maximum load	5 kg
Output	up to 150 kg/h
Peeling cycle	60–90 s
Disc speed	270 rpm
Power supply	400 V three-phase or 230 V single-phase, 50 Hz
Motor power	0.37 kW (0.5 HP)
Motor	asynchronous, fan-cooled, made in Italy
Drive	belt
Abrasive surfaces	abrasive disc and abrasive belt (belt replaceable without tools)
Control panel	digital, with multifunction timer
Lid	unbreakable clear plastic (stainless steel optional extra)
Safety	microswitch on the lid
Waste filter drawer	yes
Drain outlet	Ø 50 mm side outlet (wall drain) or Ø 50 mm bottom outlet (floor drain)
Water connection	3/4″ flexible hose, with solenoid valve
Water temperature	5–20 °C
Body	AISI 304 stainless steel
Dimensions (W × D × H)	530 × 530 × 970 mm
Net weight	38.5 kg
Gross weight	46 kg
Compliance	CE
Country of origin	Italy
Manufacturer product page:	Open manufacturer page
