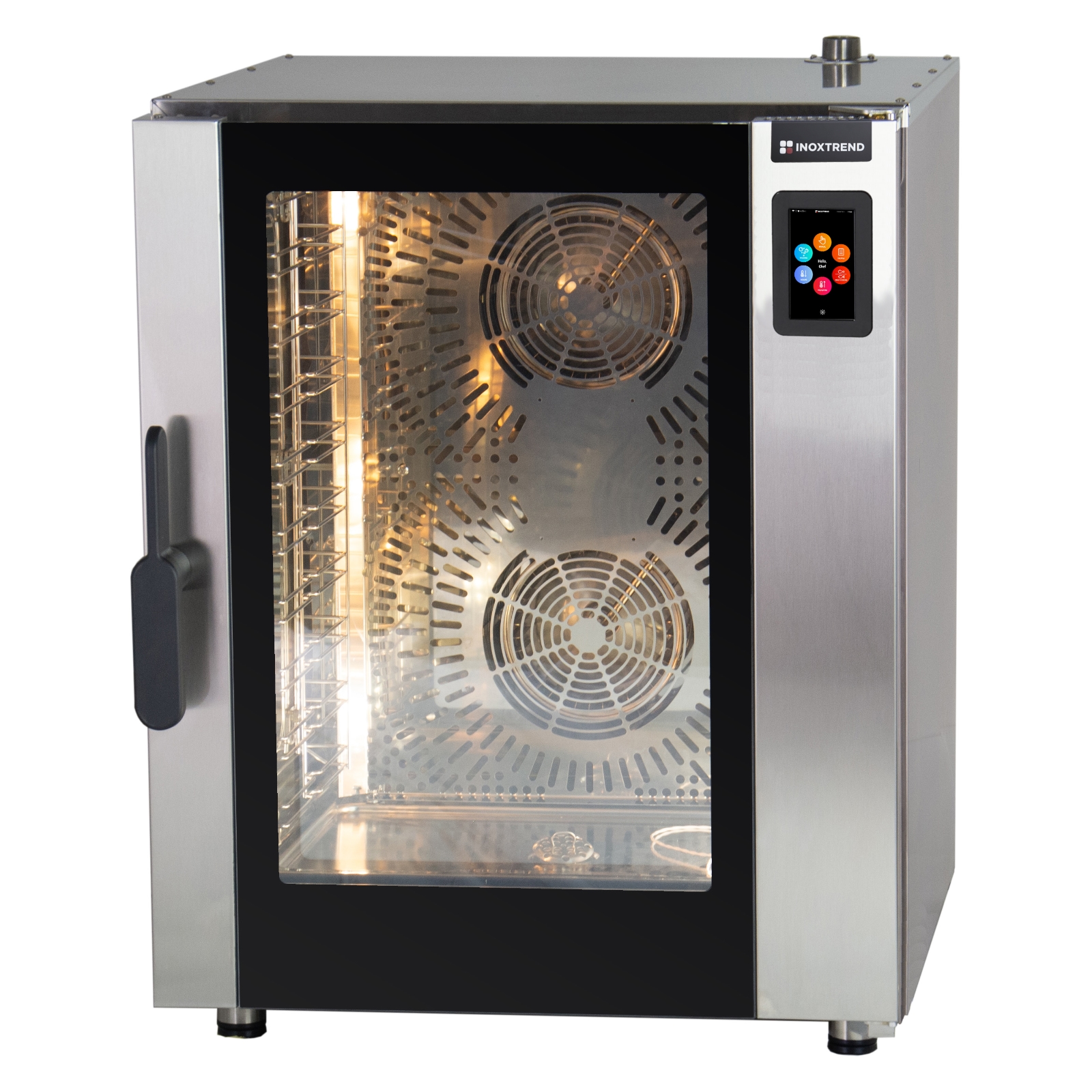

Compact combi oven for 10 GN 1/1 trays
The „Inoxtrend“ FX DT 110E from the Flexo Gastronomy World Touch range is an electric combi oven with its touch screen built into the door, which keeps it just 752 mm wide.
The chamber takes 10 GN 1/1 trays (530 × 325 mm) at 70 mm spacing, loaded crosswise with the long side facing the door. The oven is sized for about 120 meals and intensive daily use, and direct steam injection comes into its own when you cook several dishes at once or in large batches.
Cooking modes and core probe
You bake with hot air, cook with hot air and steam at the humidity you set, or steam. The two fans run at two speeds and reverse direction automatically, so food cooks evenly on every level, and you choose standard or semi-static ventilation.
The core probe comes as standard: with it, the oven finishes cooking when the inside of the food reaches the set temperature, and in Delta T mode it keeps a constant difference between chamber and core temperature throughout.
The oven preheats the chamber automatically, and you can delay the start by up to 23 h 59 min. With Multi Level you set a separate time for each level, and Multi Cooking (All Start, All End, Multi End) tells you when to load or remove each tray when dishes share the same settings but need different times.
Recipes and controls
You save up to 1,000 recipes, each with up to 20 steps, and sort them into folders. You update recipes quickly via USB, and the oven records HACCP data automatically.
With the oven on Wi-Fi, you create, edit and share recipes with other devices and monitor the oven through Nube Connecting, and the oven downloads new software versions and interface languages by itself.
Door
The patented ergonomic handle has two grip points, so you can open the door even while holding a tray in both hands.
The door is hinged on the right; a left-hinged door (LD FX110) is supplied to order.
Automatic washing
The oven washes its own chamber with a liquid detergent that also acts as a rinse aid: you put the hose at the back of the oven into the detergent canister, and the oven doses the detergent for the selected programme.
You choose a short, medium or long programme, and a plain-water rinse after strong-smelling dishes.
Which oven to choose
Both ovens — the FX DT 110E and the LU DT 111E — are electric, make steam by injecting water straight into the chamber and have a core probe with Delta T.
- FX DT 110E (Flexo) — the more compact of the two (752 × 825 × 986 mm), with two fans; trays go in crosswise at 70 mm spacing, and the oven washes its chamber with liquid detergent.
- If you want a newer model, choose the Level-Up LU DT 111E: 11 trays, a 7″ screen and washing with tablets; trays go in lengthwise at 67 mm spacing.
| FX DT 110E | LU DT 111E |
| Series | Flexo Gastronomy World Touch | Level-Up Touch |
| Capacity | 10 × GN 1/1 | 11 × GN 1/1 |
| Power consumption | 18.6 kW | 16.4 kW |
| Dimensions (W × D × H) | 752 × 825 × 986 mm | 817 × 898 × 1,060 mm |
| Packed weight | 120 kg | 140 kg |
| Tray loading | crosswise (CW) | lengthwise (LW) |
| Shelf spacing | 70 mm | 67 mm |
| Control panel | touch screen in the door | 7″ touch screen |
| Number of fans | 2 | 1 |
| Automatic cleaning | with liquid detergent, 5 programmes | with detergent tablets, 5 programmes |
Installation
- Electrical: 380–415 V 3N~, 50/60 Hz, 18.6 kW, current 27 A, supply cable 5 × 6 mm². At extra cost, we supply the oven built for a 230 V three-phase supply. A circuit breaker must be fitted in the supply line, and the oven must be connected to the equipotential bonding system (screw at the back).
- Water: two G ¾″ inlets at the back (both must be connected), pressure 1.5–2.5 bar. Water hardness 4–12 °fH (French degrees), conductivity 50–2,000 µS/cm, chlorine (Cl₂) below 0.2 mg/l, chlorides below 150 mg/l. Water temperature 15–20 °C, pH above 7. For harder water, fit an automatic „Aquaphor“ S550 or S800 softener or a „DVA“ LT12 softening filter between the mains and the oven. Connect the oven to the cold supply with rigid pipes, with an easily accessible isolating valve and a cartridge filter between the mains and the oven.
- Drain: chamber drain, outer diameter 32 mm.
- Room and clearances: room temperature 5–35 °C, relative humidity up to 70 %. The oven must stand level on a stable stand or shelf with a non-combustible surface, such as stainless steel. Leave at least 3 cm on the left and 10 cm on the right between the oven and any wall or other equipment, and enough room at the back to reach the equipotential bonding terminal; installation and servicing are done from the right-hand side.
- Dimensions and weight: 752 × 825 × 986 mm (W × D × H; depth includes the door handle), packed weight 120 kg.
- Steam extraction: the KL2_PG1 extraction hood and the KL3_PG1 condensing hood both run on 230 V and are rated at 0.40 kW each.
Included items and accessories
The oven comes with one grid and a core probe.
Available separately: SCR 01 PG7 stand with shelf (700 × 650 × 700 mm) and CRGR 01 PG7 tray runner kit, DLE hand shower, KL2_PG1 and KL3_PG1 hoods, „Inoxtrend“ FLICKOVEN liquid detergent (four 5 kg canisters per pack), GN trays and grids.
Most accessories are described in the „Inoxtrend“ accessories catalogue (Technical Data Sheet tab).
Technical specifications
| Manufacturer | „Inoxtrend“ (Italy) |
| Series | Flexo Gastronomy World Touch |
| Model | FX DT 110E |
| Capacity | 10 × GN 1/1 |
| Tray loading | crosswise (CW), long side facing the door |
| Shelf spacing | 70 mm |
| Steam generation | direct steam injection |
| Temperature | convection 30–270 °C, combi 30–240 °C, steam 30–130 °C |
| Core probe | 20–99 °C; Delta T 1–150 °C |
| Ventilation | 2 fans, 2 speeds with auto-reverse; normal or semi-static mode |
| Control panel | capacitive touch screen in the door |
| Recipe memory | up to 1,000 recipes, each with up to 20 steps; can be sorted into folders |
| Multi-level cooking | Multi Level (separate time for each level); Multi Cooking (All Start, All End, Multi End) |
| Automatic cleaning | with liquid detergent, 5 programmes |
| Data management | USB port, HACCP data logging |
| Door | patented double-grip handle; hinged on the right (left-hinged LD FX110 door available as an option) |
| Chamber and housing | AISI 304 chamber with rounded corners; AISI 430 frame; stainless steel throughout |
| Heating elements | Incoloy 800 alloy, at the back of the chamber |
| Power consumption | 18.6 kW |
| Power supply | 380–415 V 3N~, 50/60 Hz |
| Current draw | 27 A |
| Supply cable | 5 × 6 mm² |
| Water connection | G ¾″, pressure 1.5–2.5 bar |
| Water quality | hardness 4–12 °fH, conductivity 50–2,000 µS/cm, chlorine (Cl₂) below 0.2 mg/l, chlorides below 150 mg/l |
| Drain | outer diameter 32 mm |
| Dimensions (W × D × H) | 752 × 825 × 986 mm (depth includes the door handle) |
| Weight | 120 kg (packed) |
| Packaging | 780 × 920 × 1,150 mm, 0.83 m³ |
| Supplied with | 1 grid, core probe |
| Indicative number of meals | 120 (manufacturer’s figure) |
| Country of origin | Italy |
