Drink mixer with two 0.675 L cups
The „Santos“ #54 is a drink mixer with two 0.675 L cups and three agitators for milkshakes, frappés, cold milk foam and ice-cream drinks. It has a 230 W motor.

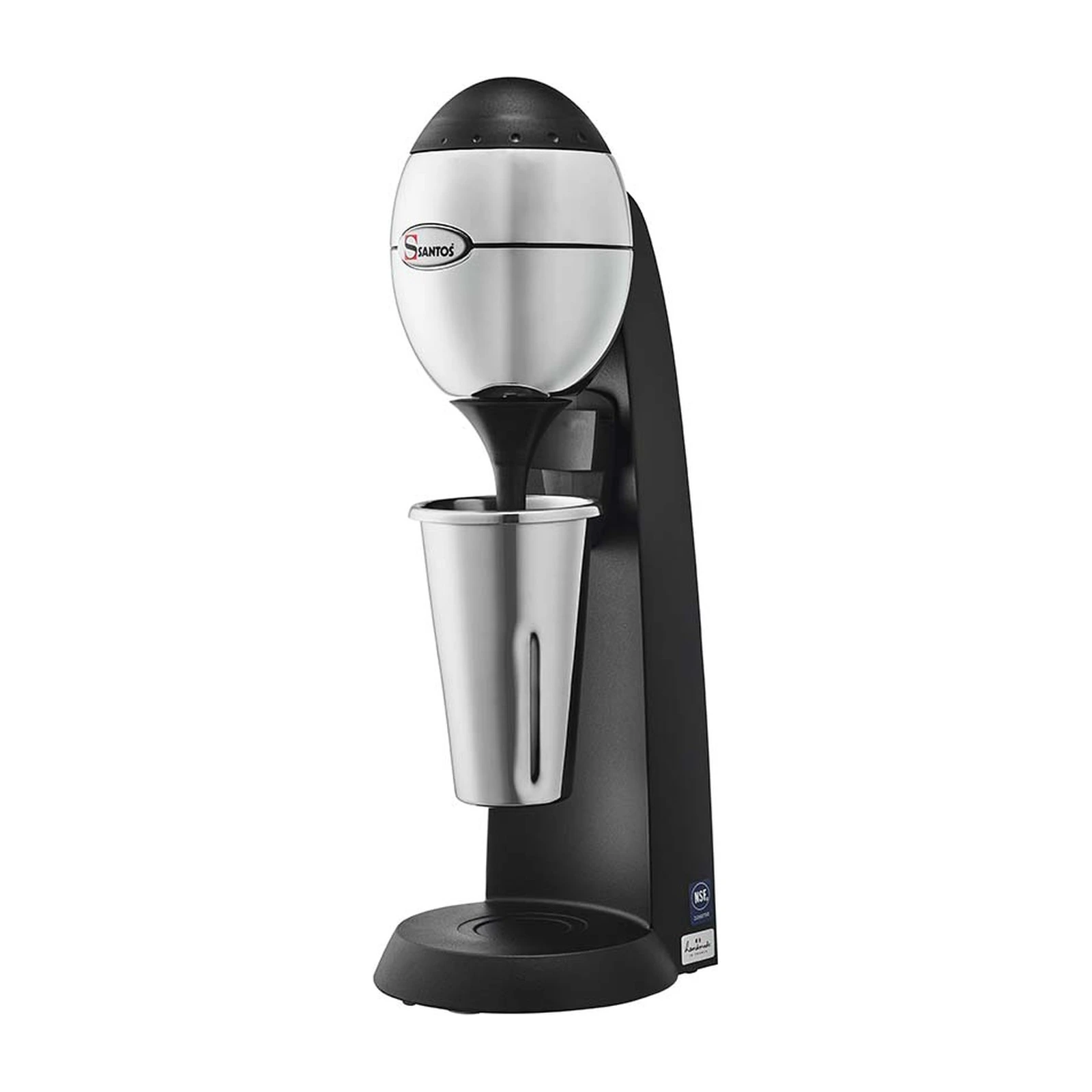

Drink mixer „Santos“ #54
Add to CartSantos
French manufacturer • Since 1954
Since 1954 France's „Santos“ has been making equipment for food preparation, coffee grinding and juicing. The company designs and builds all its machines in its own factory in Lyon, working with local suppliers.
MB „Restoranų įranga“ is the official distributor of „Santos“ S.A.S. in Lithuania.
Quality
Every unit tested
„Santos“ appliances are hand-assembled by operators who are responsible for them from the start of production to final inspection, and every unit is tested after assembly.
Innovation
The first brushless blender
„Santos“ appliances are known for their robustness and reliability, thanks in part to long experience in making motors, and the company was the first to put a brushless motor in a blender.
Durability
Parts for over 10 years
„Santos“ appliances are built to last, and the company guarantees all spare parts for more than 10 years after production, so an appliance can be repaired again and again.
Technical data sheet: „Santos“ #54
Download PDF →
Official manufacturer leaflet (July 2021 edition): features, accessories, safety, standards and hygiene, technical data, dimensions and weight. In English. The leaflet gives the 2021 weights (6 kg net, 6.5 kg packed); the current figures are in the specifications.
Spare parts diagram: „Santos“ #54
Download PDF →
Manufacturer drawing with spare part numbers for mixers built from April 2016 (serial no. 969656 onwards). Useful when ordering parts.
Drink mixer „Santos“ #54
What it is for
The mixer whips liquid and creamy drinks: milkshakes, frappés, fruit or vegetable juice cocktails, punches, smoothies and drinks with syrup, ice cream or crushed ice. Most drinks are ready in under a minute.
A drink takes up to 20 % crushed ice, powders (such as instant coffee or milk powder) and soft ice cream, with at least 80 % liquid.
Three agitators for different drinks
Every drink has its agitator: the universal ball agitator whips cold milk foam, the soft rubber one makes milkshakes, and the long finned agitator makes frappés. The agitators screw onto the motor spindle with a simple twist.
With two cups — one stainless steel, one clear plastic — you whip a drink in one while you fill the other. Materials in contact with food comply with Regulations (EC) No 1935/2004 and (EU) No 10/2011 and are bisphenol-free.
Starts when you fit the cup
The mixer starts as soon as you fit the cup on the holder: the cup sensor starts the motor, and lifting the cup off switches it off. In the lower holder position, a cup waits its turn while the motor stays off.
You set the speed from 8,000 to 16,000 rpm with the knob on top of the motor head; starting at low speed keeps the drink from splashing.
The motor has thermal and overload protection, and the noise level is 63 dB(A) at 1 m. The motor head is mounted on a cast aluminium stand, and suction feet hold the mixer firmly on the counter.
Comparison
The #54 is our mixer that starts as soon as you fit the cup and has three agitators for different drinks.
| Model | „Santos“ #54 | „Sirman“ Sirio 1 VV | „Sirman“ Sirio 2 VV | „Bartscher“ 135105 |
|---|---|---|---|---|
| Cups | 2 × 0.675 L (stainless steel and plastic) | 0.55 L Tritan or 0.9 L stainless steel | 2 × 0.55 L Tritan or 2 × 0.9 L stainless steel | 0.95 L stainless steel (200–650 ml of drink) |
| Power | 230 W | 100 W or 120 W | 2 × 100 W or 2 × 120 W | 400 W |
| Speed | 8,000–16,000 rpm | 4,000–14,000 rpm | 4,000–14,000 rpm, set separately for each head | 2 speeds |
| Drinks at a time | 1 | 1 | 2 | 1 |
| Start | by fitting the cup on the holder | switch; the motor stops when the cup is lifted off | switches; the motor stops when the cup is lifted off | O–I–II switch |
| Agitators | 3 interchangeable | on the spindle | on each spindle | mixing rod with discs |
| Dimensions (W × D × H) | 182 × 186 × 530 mm | 150 × 195 × 485 or 530 mm | 300 × 195 × 485 or 530 mm | 160 × 205 × 500 mm |
| Weight | 5.75 kg | 2.5 or 3 kg | 5 or 6 kg | 6.2 kg |
If you make two drinks at once, choose the „Sirman“ Sirio 2 VV; if one cup and a narrower (150 mm) mixer are enough, go for the „Sirman“ Sirio 1 VV.
Installation and connections
- Power supply: single-phase 220–240 V, 50/60 Hz, 230 W. The power cord and plug are fitted — plug the mixer into its own earthed socket on a circuit protected by a residual current device (RCD) and a 16 A fuse.
- Location: a level, horizontal surface indoors, away from sources of heat, so that the suction feet grip well.
- Dimensions and weight: 182 × 186 × 530 mm, 5.75 kg.
Running and spare parts
Both cups, all three agitators and the deflector go in the dishwasher, and the cups stack inside each other when you put them away. The bearings are lubricated for life.
Wear parts — the agitators, the deflector and electrical components — are replaceable. Spare parts are ordered by the manufacturer's part numbers: stainless steel cup — 54101, clear cup — 54105, ball agitator — 54201, soft agitator — 54202, finned agitator — 54203. Part numbers for everything else are in the spare parts diagram on the ‘Technical Data Sheet’ tab.
What’s in the box
The mixer comes with two 0.675 L cups — one stainless steel, one clear plastic — and three agitators: ball, soft rubber and long finned.
Technical specifications
| Manufacturer | „Santos“ |
|---|---|
| Model | #54 |
| Manufacturer code | 54 N (black) |
| Capacity | 0.675 L (each cup) |
| Speed | 8,000–16,000 rpm, adjustable with the knob on top of the motor unit |
| Start and stop | automatic: the motor starts when a cup is placed on the cup holder and stops when the cup is lifted off |
| Cups | two: one stainless steel, one clear plastic |
| Agitators | three: universal spherical (for cold milk froth), soft rubber (for milkshakes) and long-stemmed winged (for frappés) |
| Motor | single-phase, with a built-in thermal cut-out and an overload protector |
| Power | 230 W |
| Power supply | 220–240 V, single-phase, 50/60 Hz |
| Power cord | fitted, with a plug for an earthed socket |
| Noise level | 63 dB(A) at 1 m |
| Stand | cast aluminium, black |
| Cleaning | cups, agitators and deflector are dishwasher-safe |
| Dimensions (W × D × H) | 182 × 186 × 530 mm |
| Net weight | 5.75 kg |
| Gross weight | 6.4 kg |
| Package dimensions (W × D × H) | 215 × 244 × 600 mm |
| Spare parts | stainless steel cup (54101), clear cup (54105), spherical agitator (54201), soft agitator (54202), winged agitator (54203) |
| Compliance | CE, NSF, RoHS |
| Country of origin | France |
| Drink mixer | |
| Manufacturer | „Santos“ |
| Model | #54 |
| Manufacturer code | 54 N (black) |
| Capacity | 0.675 L (each cup) |
| Speed | 8,000–16,000 rpm, adjustable with the knob on top of the motor unit |
| Start and stop | automatic: the motor starts when a cup is placed on the cup holder and stops when the cup is lifted off |
| Cups | two: one stainless steel, one clear plastic |
| Agitators | three: universal spherical (for cold milk froth), soft rubber (for milkshakes) and long-stemmed winged (for frappés) |
| Motor | single-phase, with a built-in thermal cut-out and an overload protector |
| Power | 230 W |
| Power supply | 220–240 V, single-phase, 50/60 Hz |
| Power cord | fitted, with a plug for an earthed socket |
| Noise level | 63 dB(A) at 1 m |
| Stand | cast aluminium, black |
| Cleaning | cups, agitators and deflector are dishwasher-safe |
| Dimensions (W × D × H) | 182 × 186 × 530 mm |
| Net weight | 5.75 kg |
| Gross weight | 6.4 kg |
| Package dimensions (W × D × H) | 215 × 244 × 600 mm |
| Spare parts | stainless steel cup (54101), clear cup (54105), spherical agitator (54201), soft agitator (54202), winged agitator (54203) |
| Compliance | CE, NSF, RoHS |
| Country of origin | France |
| Manufacturer product page: | Open manufacturer page |
Technical data sheet: „Santos“ #54
Download PDF →
Official manufacturer leaflet (July 2021 edition): features, accessories, safety, standards and hygiene, technical data, dimensions and weight. In English. The leaflet gives the 2021 weights (6 kg net, 6.5 kg packed); the current figures are in the specifications.
Spare parts diagram: „Santos“ #54
Download PDF →
Manufacturer drawing with spare part numbers for mixers built from April 2016 (serial no. 969656 onwards). Useful when ordering parts.
